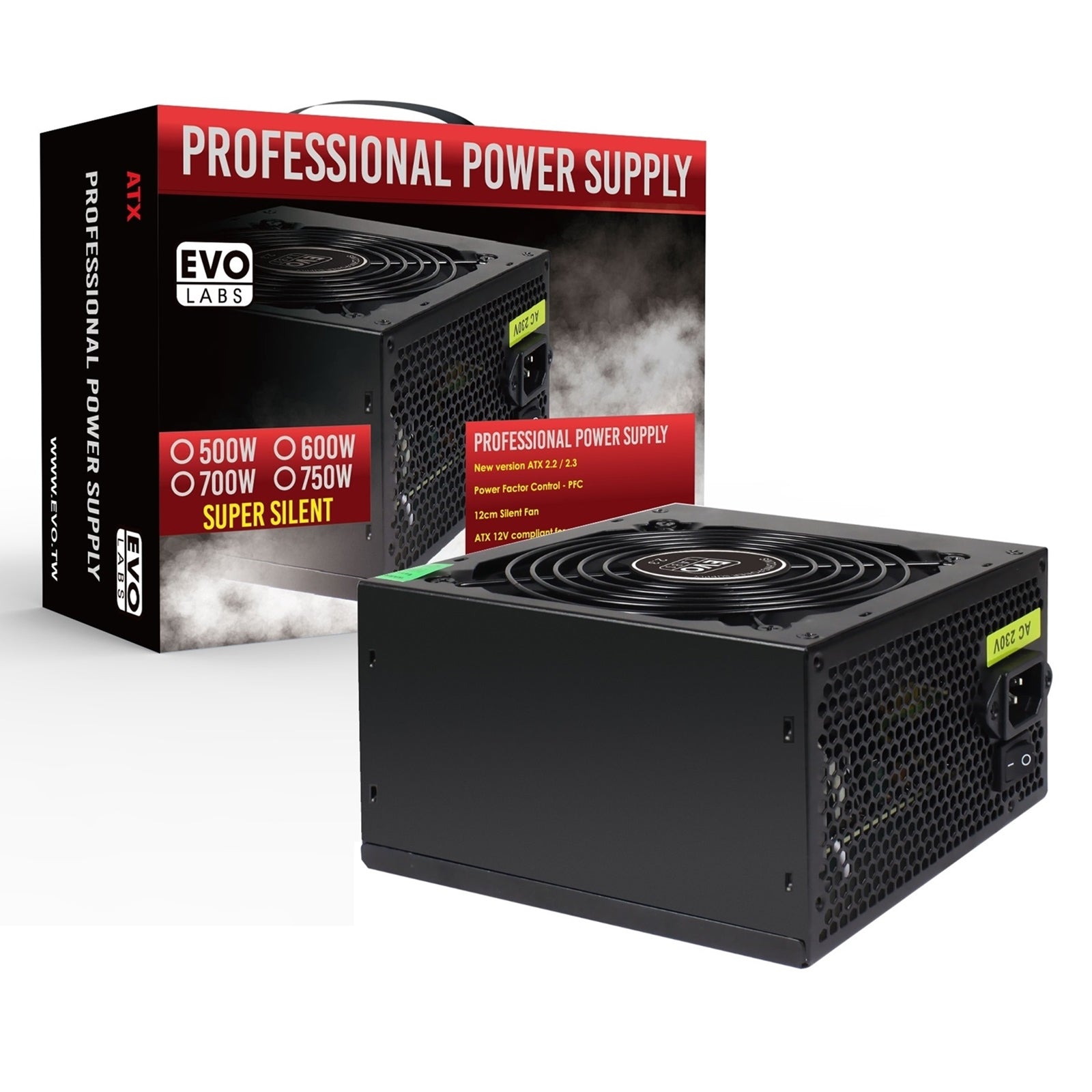

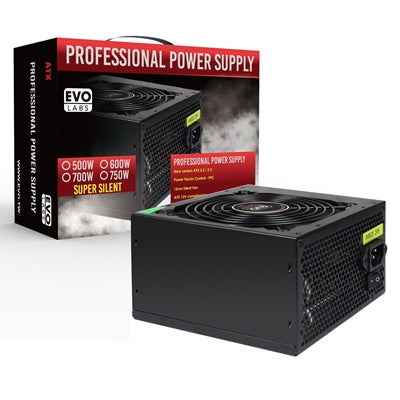

EVO LABS E-750BL 750W ATX Power Supply

The EVO LABS E-750BL delivers 750W of stable power for your PC build with ATX 2.2/2.3 standard compliance. This non-modular power supply features a 120mm black silent cooling fan that maintains optimal airflow while operating quietly, ensuring your system stays cool without excessive noise.

Power and Performance Specifications

Built to ATX 12V standards, this PSU provides reliable power delivery for most CPUs and mainboards. The unit operates at 230Vac input voltage with 10A input current at 50-60Hz frequency. Power Factor Control (PFC) technology improves efficiency and reduces power waste during operation.

Connectivity Options

The E-750BL includes comprehensive connectivity for modern PC builds:

• ATX 20+4 pin main power connector
• CPU 8-pin (4+4) connector
• 3 x SATA connectors for drives
• 1 x 4-pin Molex connector
• 1 x PCI-E 6+2 pin for graphics cards
• 1 x FDD connector

Design and Build Quality

The black casing measures 150 x 86 x 140mm and weighs 1.65kg, fitting standard ATX cases. The 120mm silent cooling fan provides improved ventilation while maintaining low noise levels during operation. CE, FCC, and RoHS certifications ensure compliance with safety and environmental standards.

Technical Specifications

Model: E-750ATX
Wattage: 750W
Input Voltage: 230Vac
Input Current: 10A
Input Frequency: 50~60Hz
Color: Black
Dimensions (W x H x D): 150 x 86 x 140 mm
Weight: 1.65kg
Certifications: CE / FCC / RoHS
Cooling: 120mm Black Silent Cooling Fan
Form Factor: ATX
Warranty: 1 Year
EAN: 5055492420954

Package Contents

The EVO LABS E-750BL comes retail packaged with all necessary cables and documentation. The non-modular design means all cables are permanently attached, simplifying installation for straightforward PC builds.

• Wattage: 750W
• Size/Version: ATX
• Modular: No
• SATA Connections: 3
• Certification: None
• Colour: Black
