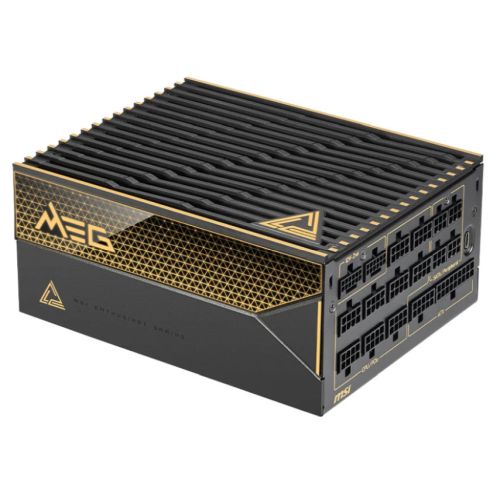

MSI MEG Ai1600T 1600W Titanium Power Supply

The MSI MEG Ai1600T PCIE5 delivers 1600W of server-grade power with tri-certified Titanium efficiency (80 PLUS / Cybenetics / PPLP), achieving up to 94% efficiency. Designed for high-performance systems including Nvidia GeForce RTX 50 Series graphics cards, this fully modular ATX 3.1 power supply features dual-native 12V-2x6 connectors rated at 600W each.

Server-Grade Components and Digital Control

Built with SiC interleaved PFC MOSFETs, this power supply utilizes server-grade materials to enhance stability, improve efficiency, and optimize heat dissipation. The full digital design with control MCU manages PFC, LLC, and protection systems for precise dynamic adjustments and stable power output. All internal components use 100% Japanese 105°C capacitors for reliable long-term operation.

Advanced Cooling and Quiet Operation

The 135mm double-ball bearing fan features Zero Fan Mode, which stops fan operation when TDP falls below 55% for silent computing. With Cybenetics Lambda A++ noise certification and enlarged heatsinks with optimized airflow channels, the unit maintains low temperatures while operating at midnight-level sound levels. The server-grade flat spring coil design provides efficient heat dissipation within a compact 190 x 150 x 86mm footprint.

Comprehensive Protection and Safety

Industrial-level protection includes OCP, OTP, OPP, SCP, OVP, UVP, SIP, and NLO mechanisms. External voltage spike protection makes it suitable for small-scale data centers. All cables feature UL-certified copper alloy terminals and high-density braided covers for superior safety during high current surges.

Smart Monitoring and RGB Control

Connect via Type-C to MSI Center for real-time monitoring of wattage usage and system status. Control fan speed modes (Auto or manual adjustment) and customize RGB lighting through MSI Mystic Light with the exclusive Rising Sun effect. The dual-color 12V-2x6 cables feature yellow connectors for easy visual confirmation of proper connection.

Cable Management and Modularity

Fully modular soft braided cables include: 1x ATX 24-pin, 2x EPS 4+4 pin, 2x PCIe 5.1 16-pin (600W), 9x PCIe 6+2 pin, 8x SATA 15-pin, and 8x Peripheral 4-pin connectors. The pre-installed adjustable cable organizer simplifies cable management. Backed by a 10-year warranty and rigorous quality testing before shipping.
