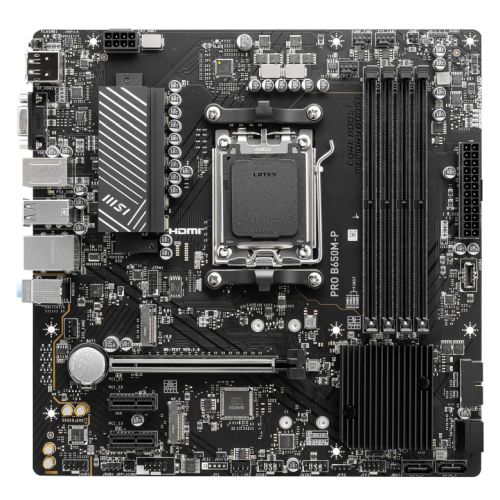

MSI PRO B650M-P AMD B650 Micro ATX Motherboard

The MSI PRO B650M-P delivers professional-grade performance for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B650 chipset with AM5 socket compatibility, this Micro ATX motherboard combines DDR5 memory support, PCIe 4.0 connectivity, and premium power delivery in a compact form factor designed for business and productivity workstations.

DDR5 Memory Performance

Experience enhanced system responsiveness with dual-channel DDR5 memory support up to 7200MHz (OC) across four DIMM slots. The Memory Boost technology delivers stable data signals for maximum performance and compatibility, supporting up to 256GB total capacity with AMD EXPO profiles for simplified overclocking.

Connectivity and Expansion

The PRO B650M-P features PCIe 4.0 x16 slot with Steel Armor protection for graphics cards, plus two PCIe 3.0 x1 slots for additional expansion. Dual M.2 slots with PCIe 4.0 x4 interface provide up to 64GB/s bandwidth for NVMe SSDs, while four SATA III ports accommodate traditional storage drives. RAID 0 and 1 configurations are supported for both M.2 and SATA devices.

Display and Networking

Multiple display outputs include VGA, HDMI 2.1, and DisplayPort 1.4 for flexible multi-monitor configurations. The integrated 2.5G LAN controller delivers enhanced network performance for professional applications and large file transfers, providing a stable connection for demanding workloads.

Premium Build Quality

Core Boost technology utilizes premium layout and digital power design with a 6-layer PCB constructed from 2oz thickened copper for improved thermal performance and power stability. The design supports high core count processors with reliable power delivery for sustained workloads.

Comprehensive I/O

Rear panel connectivity includes USB 10Gbps Type-A ports, USB 5Gbps Type-A ports, and legacy USB 2.0 support. Internal headers provide front panel USB 10Gbps Type-C connectivity. Realtek ALC897 codec powers 7.1-channel audio output with Audio Boost technology for clear sound quality.

System Management Features

EZ Debug LED simplifies troubleshooting by indicating component status during boot. Frozr AI Cooling automatically adjusts fan speeds based on CPU and GPU temperatures. Multiple fan headers including dedicated CPU, pump, and system fan connectors provide comprehensive cooling control. TPM 2.0 header support ensures hardware-level security for business environments.

The MSI PRO B650M-P combines essential features with reliable performance for professional workstations and productivity systems requiring AMD Ryzen 7000 series platform capabilities in a space-efficient Micro ATX design.
