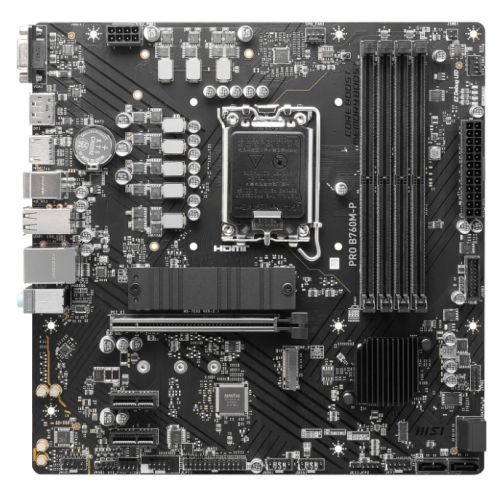

MSI PRO B760M-P Intel B760 Micro ATX Motherboard

The MSI PRO B760M-P delivers professional-grade performance for Intel 12th, 13th, and 14th generation processors in a compact Micro ATX form factor. Built with DDR5 memory support and PCIe 4.0 connectivity, this motherboard provides the foundation for efficient business systems and productivity-focused builds.

Intel LGA1700 Socket Compatibility

Compatible with Intel Core 14th, 13th, and 12th Gen processors, plus Intel Pentium Gold and Celeron processors. The LGA1700 socket ensures broad CPU support with reliable performance across multiple processor generations.

DDR5 Memory Performance

Four DIMM slots support dual-channel DDR5 memory up to 6800MHz (OC), with a maximum capacity of 256GB. Memory Boost technology delivers stable data signals for consistent performance in multi-tasking environments. Supports Intel XMP 3.0 overclocking profiles for enhanced memory speeds.

PCIe 4.0 Expansion and Storage

The board features one PCIe 4.0 x16 slot with Steel Armor reinforcement to prevent GPU sag and provide EMI shielding. Two additional PCIe 4.0 x1 slots offer expansion flexibility. Dual M.2 slots support NVMe SSDs with PCIe 4.0 x4 bandwidth, while M.2 Shield Frozr thermal solution maintains optimal SSD temperatures. Four SATA III ports provide traditional storage connectivity with RAID 0, 1, 5, and 10 support.

Multi-Display Output Options

Triple display outputs include VGA, HDMI 1.4, and DisplayPort 1.4 connections, enabling flexible multi-monitor configurations for productivity workstations. Integrated graphics support varies by CPU selection.

Connectivity and Audio

Rear I/O includes one USB 10Gbps Type-C port, one USB 5Gbps Type-A port, and four USB 2.0 ports. Gigabit Ethernet provides reliable network connectivity. Realtek ALC897 codec delivers 7.1-channel high-definition audio with Audio Boost technology for clear sound quality.

Core Boost Power Design

Premium layout with digital power design supports higher core counts and delivers stable power delivery to the CPU. The chipset heatsink maintains efficient thermal management while reducing dust accumulation.

Business-Focused Design

The PRO Series targets professionals requiring reliable, efficient systems. This motherboard includes TPM 2.0 support, chassis intrusion detection, and legacy port support (PS/2, COM, printer port) for business environments requiring backward compatibility.

Package Contents: Motherboard, Quick Installation Guide, 2x M.2 screw/standoff sets, SATA cable, I/O shield, EU regulatory notice. Backed by 3-year warranty.

PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  Supports non-ECC, un-buffered memory
  Supports Intel XMP 3.0 OC"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6800+(OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  2 x PCIe 4.0 x1
• Storage: 4 x SATA III
  2 x M.2

  M.2_1 (2280/2260/2242) - PCIe 4.0 x4
  M.2_2 (2280/2260/2242) - SATA & PCIe 4.0 x4
• RAID: "Supports RAID 0, 1, 5 and 10 for SATA storage devices"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC897 Codec
  7.1-Channel High Definition Audio
• USB Ports Supported: Rear:
  1 x USB 10Gbps Type-C
  1 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  2 x USB 5Gbps Type-A
  4 x USB 2.0
• Back Panel I/O Ports: 1 x USB 10Gbps Type-C
  1 x USB 5Gbps Type-A
  4 x USB 2.0
  1 x DisplayPort 1.4
  1 x HDMI 1.4
  1 x VGA
  1 x PS/2
  1 x PS/2
  1 x RJ-45
  1 x Audio Line In
  1 x Audio Line Out
  1 x Microphone In
• Internal I/O Connectors: 1 x Power (ATX_PWR)
  1 x Power (CPU_PWR)
  1 x CPU Fan
  2 x System Fan
  2 x Front Panel
  1 x Chassis Intrusion
  1 x Front Audio
  1 x Printer Port
  1 x Com Port
  1 x RGB LED
  1 x TPM pin TPM 2.0
  4 x USB 2.0
• .: 2 x USB 5Gbps Type-A
• Accessories: EU Regulatory Notice
  Quick Installation Guide
  2 x M.2 Screw/Standoff Sets
  SATA Cable
  I/O Shield
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
