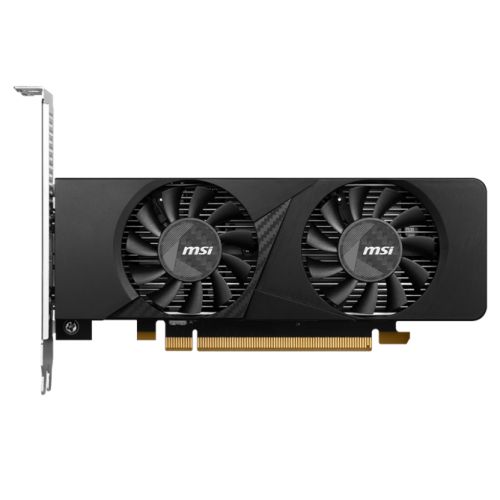

MSI GeForce RTX 3050 Low Profile 6GB Graphics Card

The MSI RTX 3050 LP 6G OC delivers NVIDIA Ampere architecture performance in a compact, low profile form factor. Engineered for small form factor builds and slim cases, this graphics card features 6GB GDDR6 memory, dedicated Ray Tracing Cores, and AI Tensor Cores for enhanced gaming and content creation capabilities.

Performance Specifications

Running at a 1492 MHz boost clock with 14 Gbps memory speed, the RTX 3050 LP houses 2304 CUDA Cores on a 96-bit memory interface. This configuration provides reliable performance for 1080p gaming and multimedia tasks while maintaining a 300W power requirement, making it suitable for systems with standard power supplies.

Compact Low Profile Design

Measuring 174 x 69 x 42 mm in a 2-slot configuration, this graphics card fits seamlessly into compact and slim PC builds. The included low profile bracket ensures compatibility with small form factor cases, allowing you to maximize space without sacrificing graphics performance.

Advanced Cooling System

The dual fan thermal design covers a larger heatsink area for efficient heat dissipation. This cooling solution maintains optimal operating temperatures while keeping noise levels manageable during extended gaming sessions or intensive workloads.

Display Connectivity

Connect up to three displays simultaneously with 2x HDMI 2.1 ports supporting 4K@120Hz and 1x DisplayPort 1.4a. The maximum resolution support of 7680 x 4320 ensures future-proof connectivity for high-resolution monitors and multi-display setups.

MSI Software Suite

The exclusive MSI Center software provides real-time monitoring and system optimization. MSI Afterburner includes OC Scanner for automated overclocking, On Screen Display for performance metrics, and Predator for in-game video recording. The custom PCB features hardened circuits and optimized trace routing for enhanced reliability.

Key Features

• NVIDIA Ampere architecture with Ray Tracing and Tensor Cores
• 6GB GDDR6 memory on 96-bit interface
• 1492 MHz boost clock, 14 Gbps memory speed
• 2304 CUDA Cores for parallel processing
• PCI Express 4.0 interface
• DirectX 12 Ultimate support
• Dual HDMI 2.1 and DisplayPort 1.4a outputs
• Low profile bracket included for SFF compatibility
• 300W PSU recommended
• 3-year warranty coverage

The GeForce RTX™ 3050 6GB is built with the NVIDIA Ampere architecture, featuring dedicated Ray Tracing Cores, AI Tensor Cores, and high-speed G6 memory. Step up to GeForce RTX.

• Boost Clock / Memory Speed: 1492 MHz / 14 Gbps
• 6GB GDDR6
• DisplayPort x 1 (v1.4a)
• HDMI™ x 2 (Supports 4K@120Hz as specified in HDMI™ 2.1)
• Low profile design saves more spaces.
• Dual fans cover more area of heatsink to take heat away more efficiently.
• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

Description

Specification

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 4.0
• Graphics Chipset: Nvidia RTX 3050
• Memory Size: 6GB
• Memory Type: DDR6
• Memory Interface: 96-bit
• Core Clock: Boost: 1492 MHz
• Memory Clock: 14 Gbps
• CUDA Cores / Stream Processors: 2304 CUDA Cores
• Outputs: 2 x HDMI 2.1
  1 x DisplayPort 1.4a
• HDCP Support: Yes
• Resolution: 7680 x 4320
• DirectX Support: DirectX 12 Ultimate
• Multi-GPU Support: None
• Max Display Support: 3
• Cooling: Dual Fan
  Large Heatsink
• PSU Requirements: 300W or greater recommended
• Connectors Required: -
• Software: MSI Center
  Afterburner
• Dimensions: 174 x 69 x 42 mm
• Slot Size: 2 Slot
• Additional Features: See Overview
• Accessories: Low Profile Bracket included
• Package Type: Retail
• #Hide#Low Profile: Yes (Low Profile)
• #Hide#HDMI: Yes (HDMI)
• #Hide#DisplayPort: Yes (DisplayPort)
• Package Weight: To be confirmed
• Warranty: 3 Years
