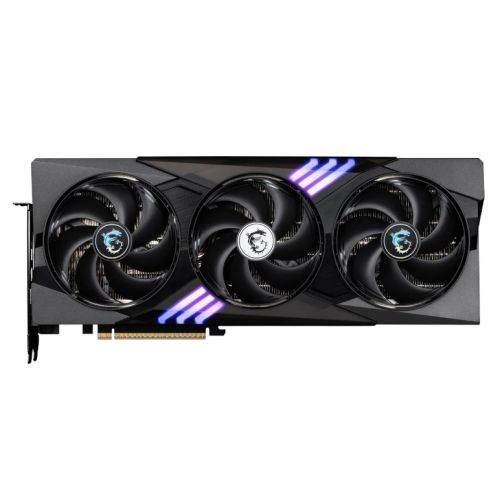

MSI RTX 5070 Gaming Trio 12GB - High-Performance Graphics Card

The MSI RTX 5070 Gaming Trio delivers exceptional gaming and content creation performance with 12GB GDDR7 memory and NVIDIA's Blackwell architecture. This overclocked graphics card features a boost clock of 2610 MHz and reaches 2625 MHz in extreme performance mode via MSI Center.

Advanced Cooling Technology

The TRI FROZR 4 thermal design features upgraded STORMFORCE fans with seven blades and claw texturing for optimal airflow with minimal noise. A nickel-plated copper baseplate rapidly captures heat from the GPU and memory, while square-designed Core Pipes maximize contact for superior thermal management. The metal backplate includes airflow vents and thermal pads for enhanced cooling efficiency.

Performance Specifications

Equipped with 6144 CUDA cores and a 128-bit memory interface running at 28 Gbps, this RTX 5070 handles demanding workloads with ease. The PCIe 5.0 interface ensures maximum bandwidth, while support for DirectX 12 Ultimate and DLSS 4 technology delivers cutting-edge graphics performance. Connect up to four displays simultaneously via 1x HDMI 2.1b and 3x DisplayPort 2.1b outputs, supporting resolutions up to 7680 x 4320.

Premium Build Quality

The custom PCB features additional fuses for protection against electrical damage, while DrMOS power stages provide enhanced efficiency with low power loss. High-quality clay-based thermal pads offer additional heat dissipation for critical components. The 2.5-slot design measures 338 x 140 x 50 mm and requires a 650W PSU with a single 16-pin connector (ATX 3.1 recommended).

RGB Lighting and Software

LED lighting diffuses through a frosted cover and dragon totem design for customizable aesthetics. MSI Center software enables real-time monitoring, tweaking, and optimization with AI Tuning capabilities. MSI Afterburner provides industry-leading overclocking controls compatible with most graphics cards.

Package Contents

Includes a bundled support stand to attach to your PC case for secure graphics card mounting. Backed by a 3-year warranty for peace of mind.

Description

Specification

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 5.0
• Graphics Chipset: Nvidia RTX 5070
• Memory Size: 12GB
• Memory Type: DDR7
• Memory Interface: 128-bit
• Core Clock: Boost: 2610 MHz
  Extreme Performance: 2625 MHz (MSI Center)
• Memory Clock: 28 Gbps
• CUDA Cores / Stream Processors: 6144 CUDA Cores
• Outputs: 1 x HDMI 2.1b
  3 x DisplayPort 2.1b
• HDCP Support: Yes
• Resolution: Digital Max Resolution 7680 x 4320
• DirectX Support: DirectX 12 Ultimate
• Max Display Support: 4
• Cooling: Triple Fan
  STORMFORCE Fans
  TRI FROZR 4 Thermal Design
  Wave Curved 4.0
  Air Antegrade Fin 2.0
  Nickel-plated Copper Baseplate
  Metal Backplate with Airflow Vents and Thermal Pads
• PSU Requirements: 650W or greater recommended
• Connectors Required: 1 x 16-pin (ATX 3.1 PSU recommended)
• Software: MSI Center
  Afterburner
• Lighting Effects: Yes
• Dimensions: 338 x 140 x 50 mm
• Slot Size: 2.5 Slot
• Additional Features: See Overview
• Package Type: Retail
• #Hide#HDMI: Yes (HDMI)
• #Hide#DisplayPort: Yes (DisplayPort)
• Package Weight: 1.7050 kg
• Warranty: 3 Years
