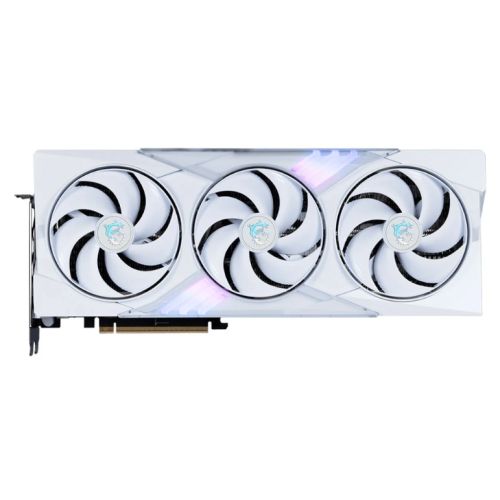

MSI RTX 5070 Ti Gaming Trio OC White Graphics Card

The MSI RTX 5070 Ti Gaming Trio OC White delivers exceptional gaming and content creation performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This 16GB GDDR7 graphics card features an overclocked boost clock of 2580 MHz through MSI Center, providing the power needed for demanding applications and high-resolution gaming.

Advanced TRI FROZR 4 Cooling System

The TRI FROZR 4 thermal design features upgraded STORMFORCE fans with seven blades, claw texturing, and circular arc design for optimal airflow with minimal noise. Heat dissipation is managed through a nickel-plated copper baseplate that rapidly captures heat from the GPU and memory, while Core Pipes with square design maximize contact for superior thermal management. The metal backplate includes airflow vents and thermal pads for enhanced cooling efficiency.

Performance Specifications

This RTX 5070 Ti variant includes 8960 CUDA cores and operates at 2572 MHz in Gaming and Silent modes, with extreme performance reaching 2580 MHz via MSI Center. The 256-bit memory interface with 28 Gbps memory clock ensures fast data processing. Connectivity includes 1x HDMI 2.1b and 3x DisplayPort 2.1b outputs supporting up to 4 displays at 7680 x 4320 resolution.

Dual BIOS and Software Control

The Dual BIOS feature allows switching between Gaming mode for maximum performance and Silent mode for quieter operation. MSI Center software provides real-time monitoring, tweaking, and optimization with AI Tuning capabilities. Afterburner overclocking software offers precision control over graphics card settings.

Build Quality and Design

The white exterior features RGB lighting diffused through a frosted cover with dragon totem design. Additional fuses in the custom PCB provide safeguards against electrical damage, while DrMOS power stages deliver enhanced efficiency. High-quality clay-based thermal pads offer heat dissipation for critical components. A bundled support stand helps secure the card in your PC case.

Technical Specifications

• Chipset: NVIDIA RTX 5070 Ti (Blackwell Architecture)
• Memory: 16GB GDDR7, 256-bit interface
• Clock Speed: 2580 MHz boost (MSI Center), 2572 MHz (Gaming/Silent Mode)
• Interface: PCI Express 5.0
• Cooling: TRI FROZR 4 with triple STORMFORCE fans
• Outputs: 1x HDMI 2.1b, 3x DisplayPort 2.1b
• Power: 16-pin connector, 750W PSU recommended
• Dimensions: 338 x 140 x 50 mm (2.5 slot)
• Features: RGB lighting, Dual BIOS, DirectX 12 Ultimate
• Warranty: 3 Years

Specification

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 5.0
• Graphics Chipset: Nvidia RTX 5070 Ti
• Memory Size: 16GB
• Memory Type: DDR7
• Memory Interface: 256-bit
• Core Clock: Boost: 2572 MHz (GAMING & SILENT Mode)
  Extreme Performance: 2580 MHz (MSI Center)
• Memory Clock: 28 Gbps
• CUDA Cores / Stream Processors: 8960 CUDA Cores
• Outputs: 1 x HDMI 2.1b
  3 x DisplayPort 2.1b
• HDCP Support: Yes
• Resolution: Digital Max Resolution 7680 x 4320
• DirectX Support: DirectX 12 Ultimate
• Max Display Support: 4
• Cooling: Triple Fan
  STORMFORCE Fans
  TRI FROZR 4 Thermal Design
  Wave Curved 4.0
  Air Antegrade Fin 2.0
  Nickel-plated Copper Baseplate
  Metal Backplate with Airflow Vents and Thermal Pads
• PSU Requirements: 750W or greater recommended
• Connectors Required: 1 x 16-pin (ATX 3.1 PSU recommended)
• Software: MSI Center
  Afterburner
• Lighting Effects: Yes
• Dimensions: 338 x 140 x 50 mm
• Slot Size: 2.5 Slot
• Additional Features: See Overview
• Package Type: Retail
• #Hide#HDMI: Yes (HDMI)
• #Hide#DisplayPort: Yes (DisplayPort)
• Package Weight: 1.8330 kg
• Warranty: 3 Years
• #Hide#White: Yes (White)
