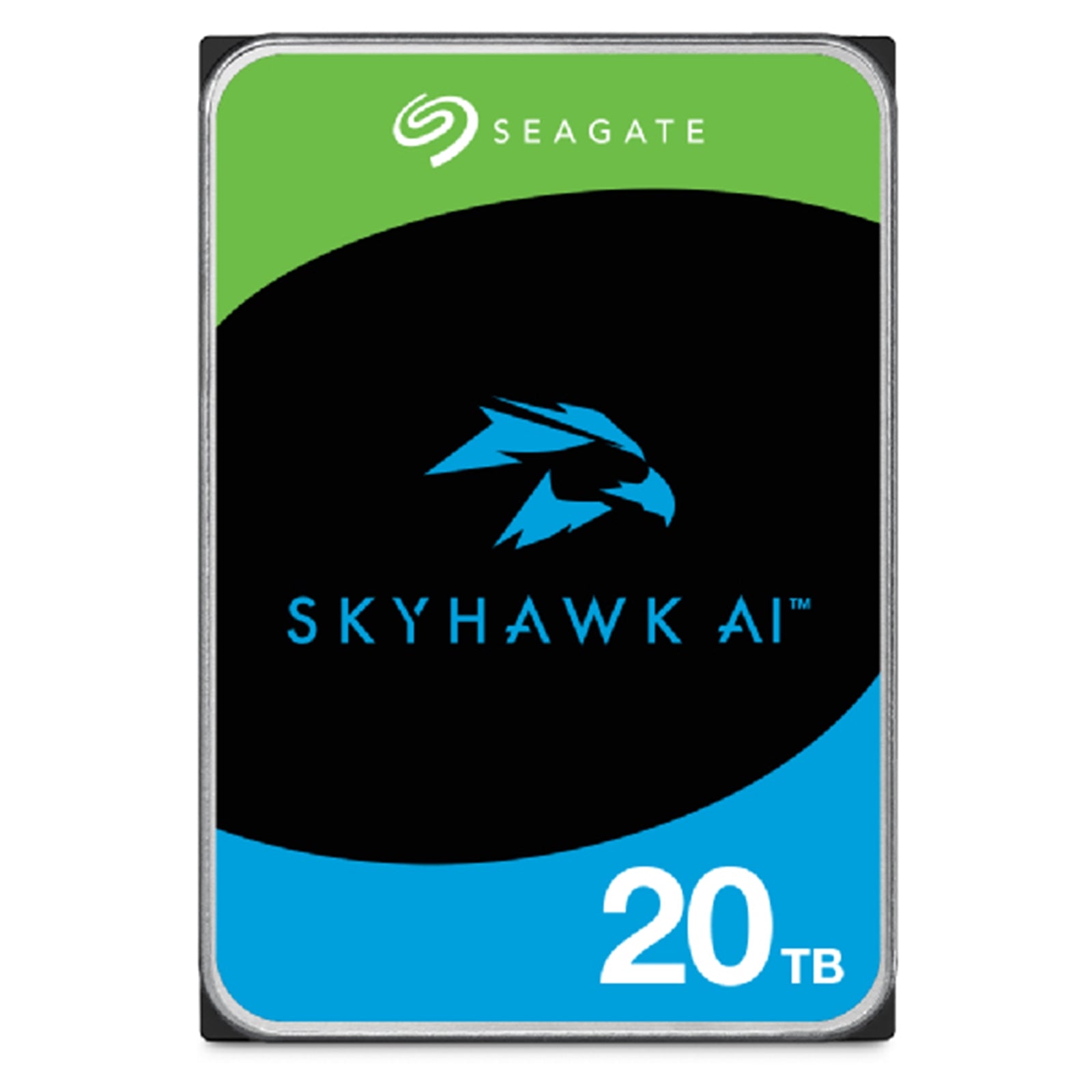

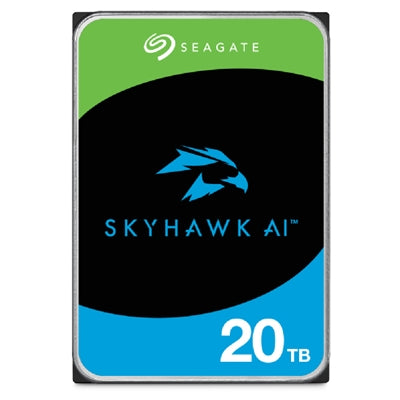

Seagate SkyHawk AI 20TB Surveillance Hard Drive

The Seagate SkyHawk AI 20TB internal hard drive delivers enterprise-grade storage capacity specifically engineered for AI-enabled surveillance systems and multi-camera NVR environments. This 3.5-inch SATA III drive operates at 7200 RPM with a 256MB cache buffer, providing the sustained performance required for continuous security recording operations.

High-Performance Surveillance Storage

Built for demanding surveillance applications, this drive achieves sustained data transfer rates up to 248MB/s with burst speeds reaching 600MB/s. The 7200 RPM spindle speed and 4.16ms average latency ensure smooth multi-stream video recording and playback. Native Command Queuing with command ordering optimizes performance when handling multiple simultaneous video streams from AI-enabled security cameras.

Advanced Recording Technology

Perpendicular recording technology enables the drive's massive 20TB capacity across 10 discs with 20 heads, achieving an areal density of 1146 Gb/in². The 256MB cache buffer (262,144KB) manages data flow efficiently during peak recording periods. Full-track multiple-sector transfer capability operates without local processor intervention, reducing system overhead during continuous operation.

24/7 Reliability Features

The Top Cover Attached motor design provides excellent vibration tolerance in multi-drive NVR chassis configurations. PowerChoice technology offers selectable power savings for energy-efficient operation during extended deployment. S.M.A.R.T. drive monitoring and reporting enables proactive health tracking, while SeaTools diagnostic software performs comprehensive drive self-tests to ensure operational integrity.

Enterprise-Grade Specifications

This surveillance-optimized drive supports latching SATA cables and connectors for secure connections in rack-mounted environments. The Worldwide Name (WWN) capability uniquely identifies each drive for inventory management in large-scale installations. Operating temperature range spans 0°C to 65°C ambient, with startup current of 2.0A peak at 12V. The drive reaches ready state within 25-30 seconds from power-on or standby modes.

Technical Specifications

Key Features
256 MB data buffer.
7200 RPM spindle speed.
Full-track multiple-sector transfer capability without local processor intervention.
High instantaneous (burst) data-transfer rates (up to 600MB per second).
Native Command Queuing with command ordering to increase performance in demanding applications.
PowerChoice for selectable power savings
Perpendicular recording technology provides the drives with increased areal density.
SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
State-of-the-art cache and on-the-fly error-correction algorithms.
Support for S.M.A.R.T. drive monitoring and reporting.
Supports latching SATA cables and connectors.
Top Cover Attached motor for excellent vibration tolerance
Worldwide Name (WWN) capability uniquely identifies the drive

Specifications

Drive specification

Formatted (512 bytes/sector)
20TB

Heads
20

Discs
10

Bytes per logical sector
512

Bytes per physical sector
4096

Recording density, KBPI (Kb/in max)
2470

Track density, KTPI (ktracks/in avg.)
482

Areal density, (Gb/in2 avg)
1146

Spindle speed (RPM)
7200

Internal data transfer rate (Mb/s max)
2899

Sustained data transfer rate OD (MB/s max)
248

I/O data-transfer rate (MB/s max)
600

ATA data-transfer modes supported
PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6

Cache buffer
256MB (262,144KB)

Weight: (maximum)
680g (1.499 lb)

Average latency
4.16ms

Power-on to ready (sec) (typ/max)
25/30

Standby to ready (sec) (typ/max)
25/30

Startup current
(typical) 12V (peak) 2.0A

Voltage tolerance (including noise)
5V ± 5%
12V ± 10%

Operating ambient temperature (min °C)
* 0°C (Ambient)

Operating temperature (max °C)
* 65°C (Drive Reported Temperature)
