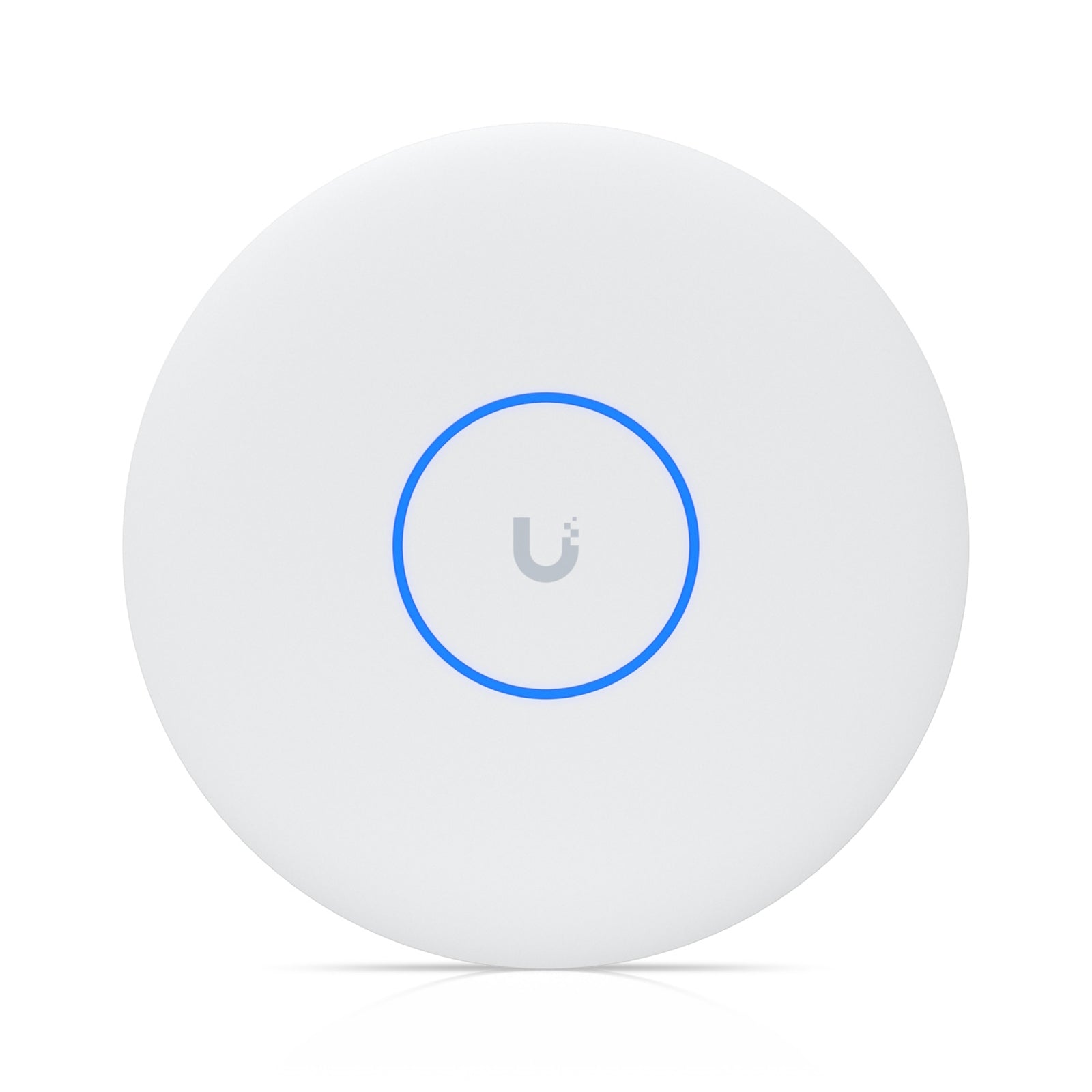

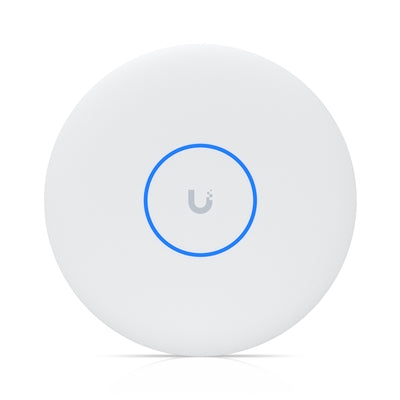

Ubiquiti UniFi 7 Pro XGS WiFi 7 Access Point

The U7-PRO-XGS delivers enterprise-grade WiFi 7 performance with 8 spatial streams and dedicated 6GHz support. This ceiling-mounted access point features a 10 Gigabit Ethernet uplink and real-time spectral analysis for optimal channel selection in high-density environments.

WiFi 7 Performance with 10GbE Connectivity

Built for demanding network infrastructure, this access point supports 500+ concurrent devices across 160 m² (1,750 ft²). The 10GbE RJ45 port ensures your wireless speeds aren't bottlenecked by network infrastructure, while backward compatibility with WiFi 6, WiFi 5, and 802.11n protects your existing device investments.

Tri-Band Configuration

The U7-PRO-XGS operates across three bands simultaneously: 6GHz delivers 5.8 Gbps with 2x2 MU-MIMO, 5GHz provides 8.6 Gbps with 4x4 MU-MIMO, and 2.4GHz offers 688 Mbps with 2x2 MU-MIMO. This configuration supports up to 8 BSSIDs per radio for complex network segmentation.

Real-Time Spectral Analysis

The dedicated spectral scanning radio continuously monitors RF environments, enabling advanced radio management and Zero-Wait DFS. This ensures optimal channel selection even in congested wireless environments, maintaining consistent performance across all connected devices.

Enterprise Network Features

Advanced capabilities include 802.11r Fast Roaming, 802.11k Radio Resource Management, 802.11v BSS Transition Management, and wireless meshing. Security features include RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN, Private Pre-Shared Key (PPSK), and client device isolation. Hotspot 2.0 (Passpoint) and captive portal support enable guest network deployment.

Installation and Power

Powered via PoE++ (42.5-57V DC), the access point consumes a maximum of 29W. The included Lite Mount supports both ceiling and wall installation. Compact dimensions of 215mm diameter x 32.5mm height and 800g weight simplify deployment in various architectural environments.

Technical Specifications

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection
160 m2 (1,750 ft2) coverage
500+ connected devices
Powered using PoE++
10 GbE uplink

Dimensions
d215 x 32.5 mm
(d8.5 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m2 (1,750 ft2)

Max. Client Count
500+

Uplink
10 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
PoE++

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
4 x 4 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)

5 GHz
8.6 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm

5 GHz
29 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Zero-Wait DFS
Yes

Advanced Radio Management
Yes

Real-Time Spectral Analysis
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
29W

Supported Voltage Range
42.5 - 57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
800 g (1.8 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications
CE, FCC, IC

• Type: High Density
• Speed: 8600Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
