Ubiquiti UniFi U7 Pro WiFi 7 Access Point

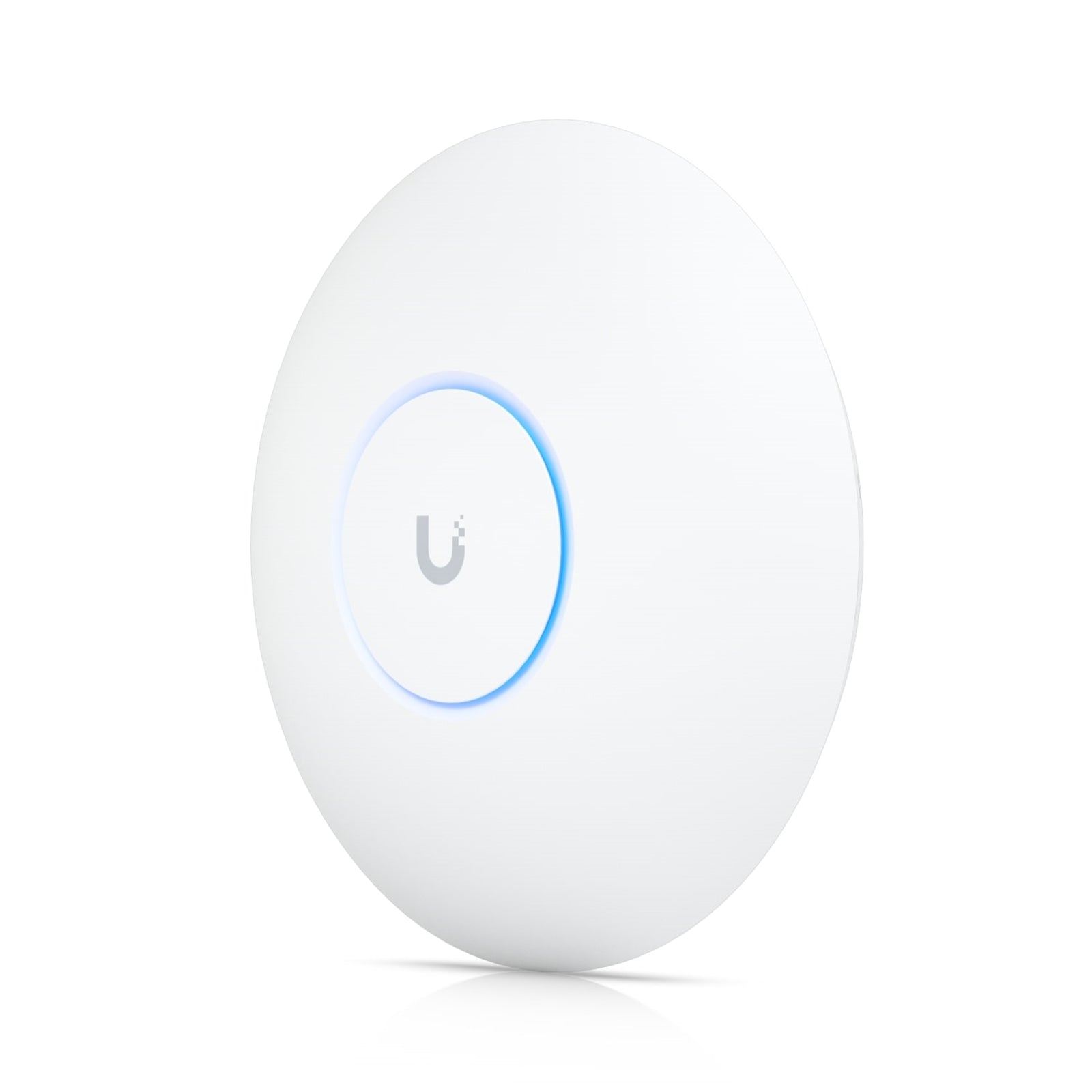

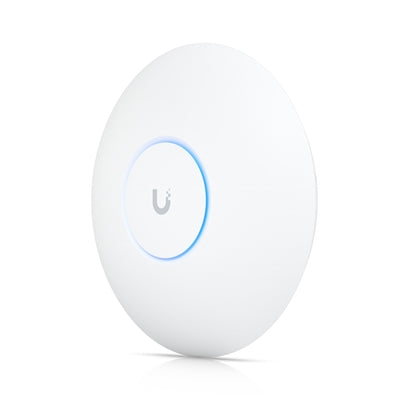

The UniFi U7 Pro is a professional-grade ceiling-mount WiFi 7 access point engineered for high-density enterprise environments. Featuring tri-band wireless connectivity with 6 GHz support, this access point delivers 9.3 Gbps aggregate throughput and handles 300+ concurrent clients across 140 m² (1,500 ft²) coverage area.

WiFi 7 Performance with Tri-Band Architecture

Built on the 802.11be standard, the U7 Pro operates across three frequency bands: 2.4 GHz (688 Mbps), 5 GHz (2882 Mbps), and 6 GHz (5765 Mbps). The 6 GHz band provides clean spectrum with reduced interference, ideal for latency-sensitive applications. With 2x2 MIMO configuration across all bands and 6 spatial streams total, the access point maintains stable connections even under heavy network loads.

Enterprise-Grade Connectivity

The 2.5 GbE RJ45 uplink port eliminates network bottlenecks, ensuring full utilization of WiFi 7 speeds. Powered via PoE+ (802.3at) with 44-57V DC support, the U7 Pro draws a maximum of 21W, simplifying deployment without requiring separate power infrastructure. The access point integrates seamlessly with UniFi Network Version 8.0.7 and UniFi OS Version 3.2 or later.

Advanced Network Management

Supporting 8 BSSIDs per radio, the U7 Pro enables complex network segmentation with 802.1Q VLAN tagging. Security protocols include WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3/PPSK). Advanced QoS features provide per-user rate limiting, while guest traffic isolation ensures network security. The access point supports all modern WiFi standards from 802.11a/b/g through 802.11be.

Technical Specifications

Dimensions: 206 x 46 mm (8.1 x 1.8") | Weight: 680 g (1.5 lb)
Construction: Polycarbonate and metal enclosure with stainless steel mounting bracket
Antenna Gain: 2.4 GHz (4 dBi), 5 GHz (6 dBi), 6 GHz (5.8 dBi)
Max TX Power: 2.4 GHz (22 dBm), 5 GHz (26 dBm), 6 GHz (23 dBm)
Operating Range: -30 to 60°C (-22 to 140°F), 5-95% humidity non-condensing
Certifications: CE, FCC, IC

The U7 Pro includes wall/ceiling mounting hardware and features white/blue LED indicators with a factory reset button. Designed for demanding commercial deployments including offices, educational institutions, hospitality venues, and healthcare facilities requiring robust wireless infrastructure with high client density support.

• Type: Access Point
• Speed:
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
