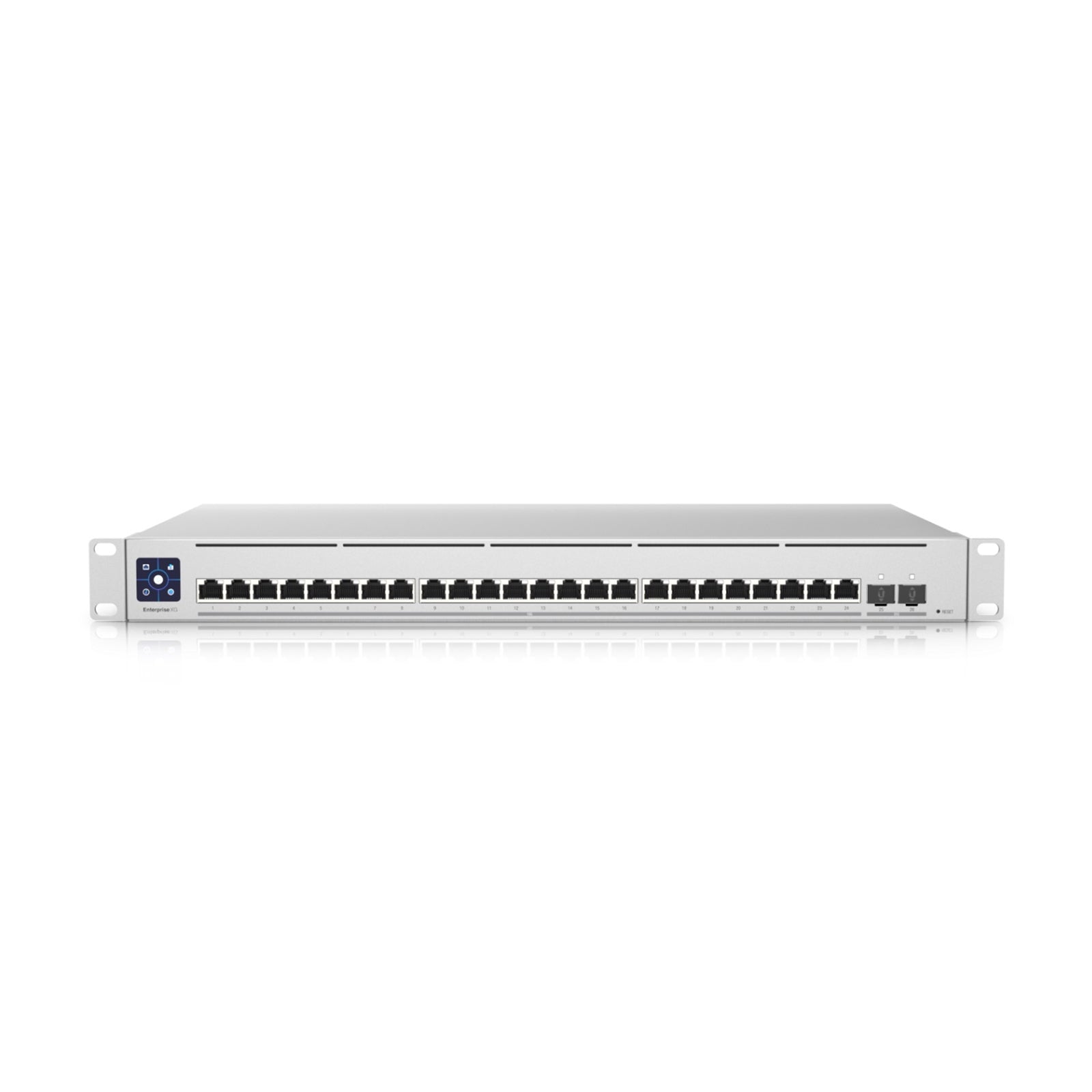

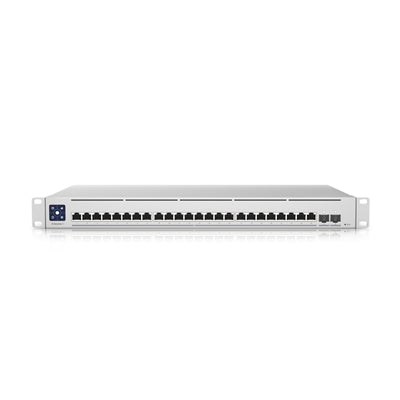

Ubiquiti USW-EnterpriseXG-24-UK Enterprise 10GbE Network Switch

The USW-EnterpriseXG-24-UK delivers enterprise-grade networking performance with 24x 10Gigabit Ethernet RJ45 ports and 2x 25Gb SFP28 uplink ports. Designed for data centers, large offices, and campus networks requiring high-capacity connectivity and Layer 3 routing capabilities.

Network Performance Specifications

This UniFi switch provides 580 Gbps switching capacity with 290 Gbps total non-blocking throughput and a forwarding rate of 431.52 Mpps. The combination of 10GbE copper ports and 25Gb fiber uplinks ensures your network infrastructure can handle demanding workloads and high-bandwidth applications without bottlenecks.

Management and Security Features

The USW-EnterpriseXG-24-UK operates as a managed Layer 3 switch with advanced network management protocols. Access Control Lists (ACLs) and port security features protect against unauthorized access. The 1.3-inch LCM color touchscreen provides status monitoring, while the Ethernet in-band management interface allows remote configuration through UniFi Network Version 6.1.67 or later.

Power and Redundancy

Equipped with an internal 100W AC/DC power supply supporting universal 100-240V AC input, the switch also features a USP-RPS DC input (11.5V DC, 8.7A) for redundant power configuration. Maximum power consumption of 100W ensures efficient operation while maintaining performance. Hot-swappable SFP28 modules minimize downtime during maintenance.

Physical Construction

The rack-mountable switch measures 442 x 44 x 285 mm (17.4 x 1.7 x 11.2 inches) in a 1U form factor. SGCC steel enclosure construction provides durability for demanding environments. Weight is 4.47 kg without mounting brackets and 4.57 kg with brackets installed. Operating temperature range of -5 to 40°C (23 to 104°F) and humidity tolerance of 10-95% noncondensing ensure reliable operation.

Protection and Compliance

ESD/EMP protection rated at ±16kV air discharge and ±12kV contact discharge safeguards the switch from electrical interference. CE, FCC, and IC certifications confirm compliance with international standards for enterprise networking equipment.

Mechanical

Dimensions
442 x 44 x 285 mm (17.4 x 1.7 x 11.2")

Weight
Without mounting brackets: 4.47 kg (9.85 lb)
With mounting brackets: 4.57 kg (11.02 lb)

Enclosure material
SGCC steel

Hardware

Networking interface
(24) 10Gbps RJ45 Ethernet
(2) 25Gbps SFP28

Management interface
Ethernet In-Band

Total non-blocking throughput
290 Gbps

Switching capacity
580 Gbps

Forwarding rate
431.52 Mpps

Max. power consumption
100W

Power method
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A

Power supply
AC/DC, internal, 100W

Services
SMB Layer 3 GbE switch

ESD/EMP protection
Air: ± 16kV, contact: ± 12kV

LCM display
(1) 1.3" LCM color touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading

Button
Factory reset

Operating temperature
-5 to 40 C (23 to 104 F)

Operating humidity
10 to 95% noncondensing

Certifications
CE, FCC, IC

Application Requirements
UniFi NetworkVersion 6.1.67 and later

• Speed: 10G
• Ports: 24
• POE Capability: No
• Managed or Unmanaged: Managed
• Rack Mountable: Yes
