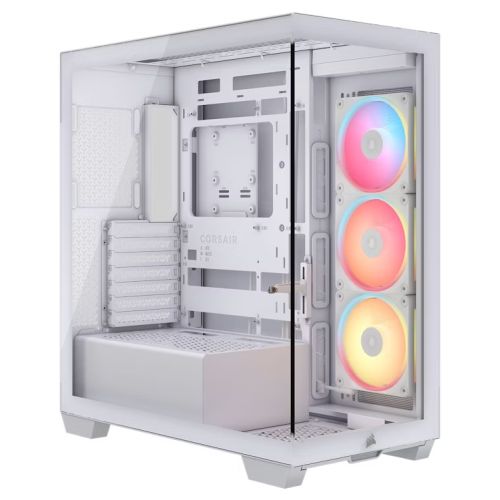

Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case - White

The Corsair 3500X LX-R delivers premium PC building capabilities in a compact mid-tower footprint. This white gaming case features wraparound tempered glass panels on the front and side, offering an unobstructed view of your components while maintaining a clean aesthetic with reverse connection motherboard support.

iCUE LINK Ecosystem Integration

Pre-installed with three iCUE LINK LX120-R reverse-rotor ARGB fans and an iCUE LINK System Hub, this case introduces groundbreaking single-cable technology that automatically detects and configures your cooling components. The system eliminates cable clutter by connecting devices in a daisy-chain configuration, with each component linking directly to the next through a single connector.

Reverse Motherboard Compatibility

Validated for ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards with rear-mounted connections. This design philosophy keeps cables hidden behind the motherboard, maximizing the visual impact of your tempered glass panels. The spacious 38mm cable management area and DoubleShot grommets ensure clean routing for both standard and reverse connection builds.

Cooling Flexibility

Supports up to 10x 120mm fans with mounting points on the side, top, bottom, and rear. Radiator compatibility extends to 360mm configurations in both the side and roof positions, with additional support for 280mm and 280mm radiators. The three included LX120-R fans deliver efficient airflow through rigorous testing and optimization.

Build Compatibility

Accommodates E-ATX motherboards (305mm x 277mm) alongside ATX, Micro ATX, and Mini ITX form factors. Graphics cards up to 410mm in length fit comfortably, with an included GPU anti-sag stabilization arm protecting your PCIe slot. CPU cooler clearance reaches 170mm, while PSU compatibility extends to 180mm units. Storage options include 2x 2.5" SSDs and 2x 3.5" HDDs.

Front Panel Connectivity

Modern I/O includes USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack. Power and reset buttons provide convenient access to essential controls.

Builder-Friendly Features

Removable front and side tempered glass panels enable quick access during installation and maintenance. Seven horizontal expansion slots (or four vertical) accommodate various GPU configurations. The steel and tempered glass construction measures 506 x 240 x 460mm with a weight of 10.9kg, backed by a 2-year warranty.

Description

Specification

• Form Factor: E-ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "E-ATX (305mm x 277mm), ATX, Micro ATX, Mini ITX"
• #Hide#Window(s): Yes (Window)
• #Hide#LED Lighting: Yes (LED Lighting)
• Connectors / Controls: 1 x USB 3.2 Gen2 Type-C
  2 x USB 3.2 Gen1 Type-A
  1 x Headphone/Microphone
  Power Button
  Reset Button
• #Hide#Max Radiator Support: 360mm
• Drive Bays: 2 x 2.5"" SSDs
  2 x 3.5"" HDDs
• Expansion Slots: 7 Horizontal (or 4 Vertical)
• Cooling System: Included:
  Side: 3 x iCUE LINK LX120-R Reverse ARGB Fans
  iCUE LINK System Hub

  Fan Mounts:
  Front: None
  Top: 3 x 120 / 2 x 140 mm
  Side: 3 x 120 / 2 x 140 mm
  Bottom: 3 x 120 / 1 x 140 mm
  Rear: 1 x 120 mm
• .:
  Radiator Support:
  Front: None
  Top: 360 / 280 / 240 mm
  Side: 360 / 280 / 240 mm
  Bottom: None
  Rear: 120 mm
• #Hide#Back-Connect MB Support: Yes (Back-Connect)
• Back-Connect MB Support: Yes
• Colour: White
• Material: "Steel, Tempered Glass"
• Compatibility: GPU max length:
  410 mm

  CPU cooler max height:
  170 mm

  PSU max length:
  180 mm
• Weight/Dimensions: 10.9 kg
  (LxWxH) 506 x 240 x 460 mm
• Additional Features: Wraparound tempered glass aesthetic
  Removable front and side glass panels
  Builder-friendly features
  GPU anti-sag stabilization arm
  Asus BTF compatible
• Warranty: 2 Years
