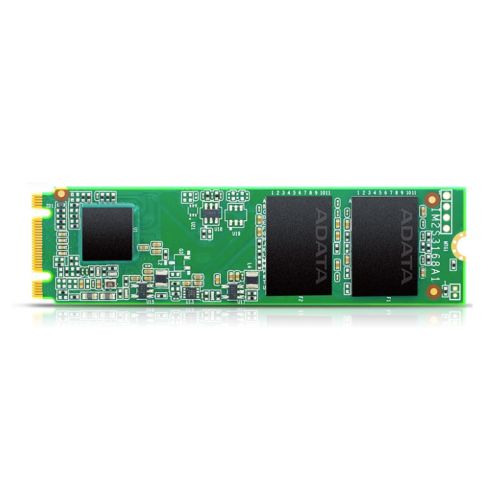

ADATA Ultimate SU650 M.2 2280 SATA SSD - 512GB

The ADATA Ultimate SU650 M.2 2280 SSD delivers reliable performance for desktop and notebook upgrades. Built with 3D NAND Flash technology and a high-speed controller, this 512GB drive combines SLC caching with advanced LDPC ECC technology for optimized data integrity and sustained performance.

3D NAND Technology for Enhanced Reliability

Featuring 3D NAND Flash, the SU650 M.2 2280 offers higher efficiency and increased reliability compared to traditional 2D NAND SSDs. The 512GB capacity provides ample storage for operating systems, applications, and files. With an MTBF of 2 million hours—25% higher than 2D NAND SSDs—and 210TB Total Bytes Written, this drive is built for long-term use.

Performance Specifications

The SU650 delivers sequential read speeds up to 550 MB/s and write speeds up to 510 MB/s over the SATA3 6Gb/s interface. Random 4K performance reaches 80K/60K IOPS for read/write operations, ensuring responsive system performance. The intelligent SLC caching algorithm allows NAND Flash to operate in single-level cell mode, boosting peak performance for faster boot times, file transfers, and downloads.

Data Protection and Error Correction

Advanced LDPC (Low Density Parity Check Code) ECC technology detects and corrects errors automatically, ensuring data integrity throughout the drive's lifespan. The SU650 supports S.M.A.R.T., TRIM Command, and NCQ for optimal drive management and performance maintenance.

M.2 2280 Form Factor

The compact M.2 2280 form factor (80 x 22 x 3.5 mm, 7g) fits seamlessly into modern desktops and notebooks with M.2 SATA slots. Installation is straightforward, allowing immediate performance improvements without complex setup procedures.

Free Software Utilities

ADATA includes proprietary SSD Toolbox and Migration Utility software with the SU650. The Toolbox monitors drive status, wear level, and lifespan metrics. The Migration Utility simplifies the transition from HDD to SSD with quick backup and migration capabilities, including operating system transfers.

Operating Specifications

Operating temperature range: 0°C to 70°C. Storage temperature range: -40°C to 85°C. Shock resistance: 1500G/0.5ms. Backed by a 3-year warranty or until the drive exceeds 210TB Total Bytes Written.

Description

Specification

• Series: ADATA Ultimate SU650
• #Hide#Capacity Range: 480 - 512 GB
• Capacity: 512 GB
• Form Factor: M.2 2280
• #Hide#Interface Type: SATA
• Interface: SATA3 (6Gb/s)
• Read: up to 550 MB/s
• Write: up to 510 MB/s
• Max Random 4K R/W: 80K / 60K
• Weight/Dimensions: 7g
  80 x 22 x 3.5 mm
• Operating Temperatures: 0°C-70°C
• Storage Temperatures: -40°C-85°C
• Shock Resistance: 1500G/0.5ms
• MTBF: "2,000,000 hours"
• Total Bytes Written (TBW): 210TB
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0700 kg
• Warranty: 3 Years or if the drive exceeds Total Bytes Written (see above)
