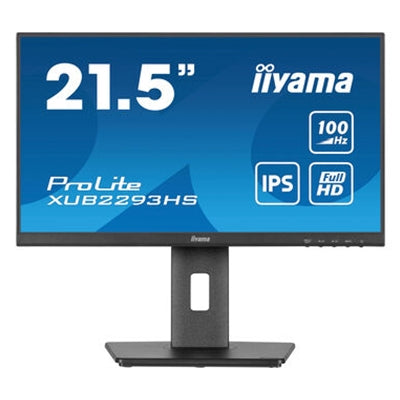

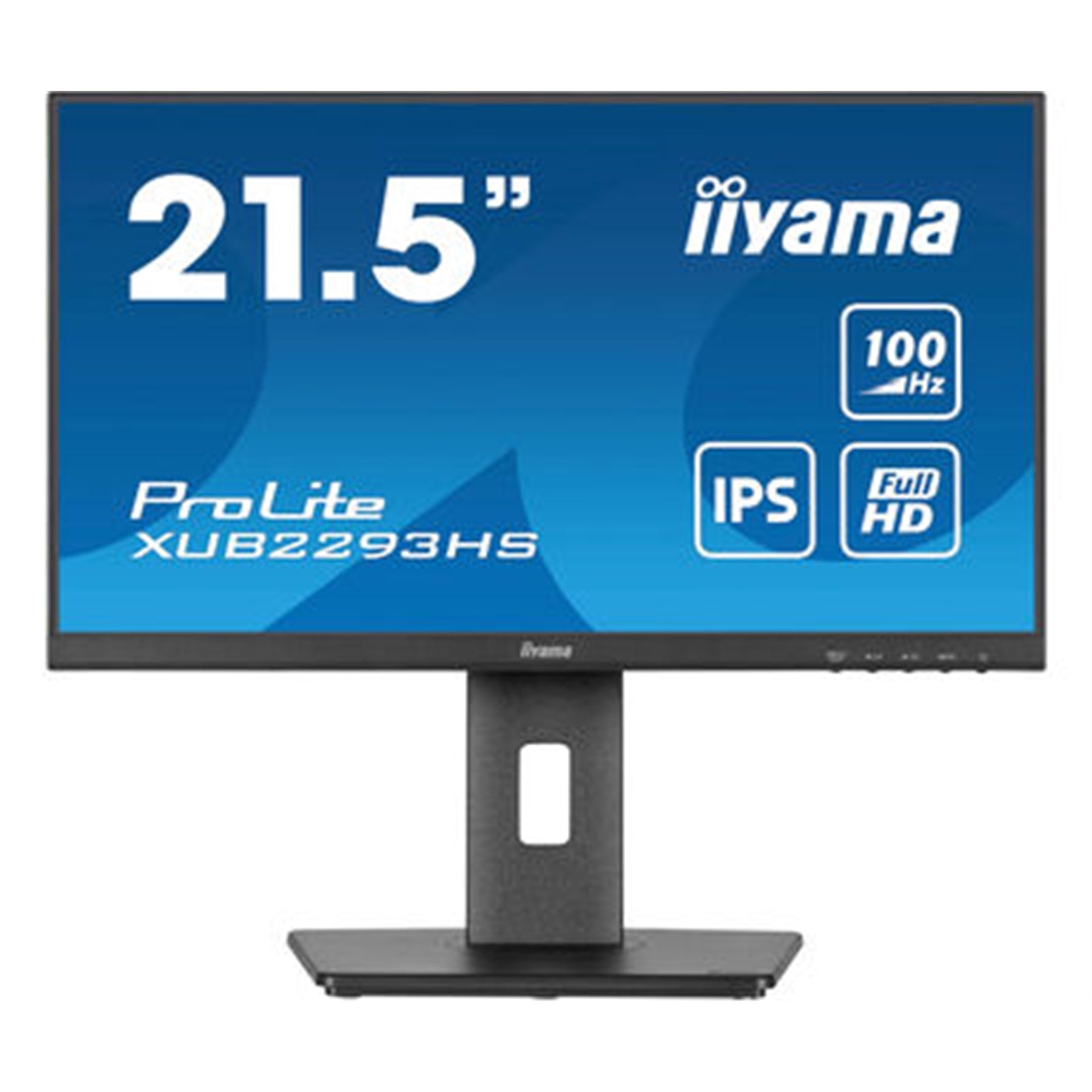

ProLite XUB2293HS-B6
21.5" IPS 3-side borderless monitor with height-adjustable stand for multi-monitor set-ups
The stylish edge-to-edge design of the ProLite XUB2293HS with IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, this 21.5’’ ProLite display is a great choice for both multi-monitor configuration and office applications.

HAS (150mm) + Pivot (rotation both sides)
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset in the headphone connector and enjoy!

ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

Specifications

Display

Diagonal
21.5", 54.5cm

Panel
IPS panel technology LED, matte finish

Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
1000:1

Advanced contrast
80M:1

Response time (MPRT)
1ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 110kHz

Viewable area W x H
478.7 x 260.3mm, 18.8 x 10.3"

Pixel pitch
0.249mm

Colour
matte, black

INTERFACES, CONNECTORS, CONTROLS

Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
yes

OSD languages
EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL,

Control buttons
Power, Menu, Up / Right / Volume, Down / Left / Eco, Signal/ Exit

User controls
picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-Res technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft, AdaptiveSync), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, language, display information), extra (reset, DDC /CI, signal select, LED, opening logo)

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC/CI, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
tiltheight, pivot (rotation), swivel, tilt

Height adjustment
150mm

Rotation (PIVOT function
90°

Swivel stand
90°; 45° left; 45° right

Tilt angle
23° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unitinternal

Power supply
AC 50 - 60V, 100/240Hz

Power usage
17W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D492 x 328 (478.5) x 209.5mm
Box dimensions W x H x D620 x 395 x 126mm
Weight (without box)3.9kg
Weight (with box)5.3kg

• Screen Size (in): 22
• Max Resolution: 1920x1080
• Refresh Rate: 100Hz
• Response Time: 1ms
• Display Port: Yes
• Height Adjustable: Yes
• Curved Screen: No
