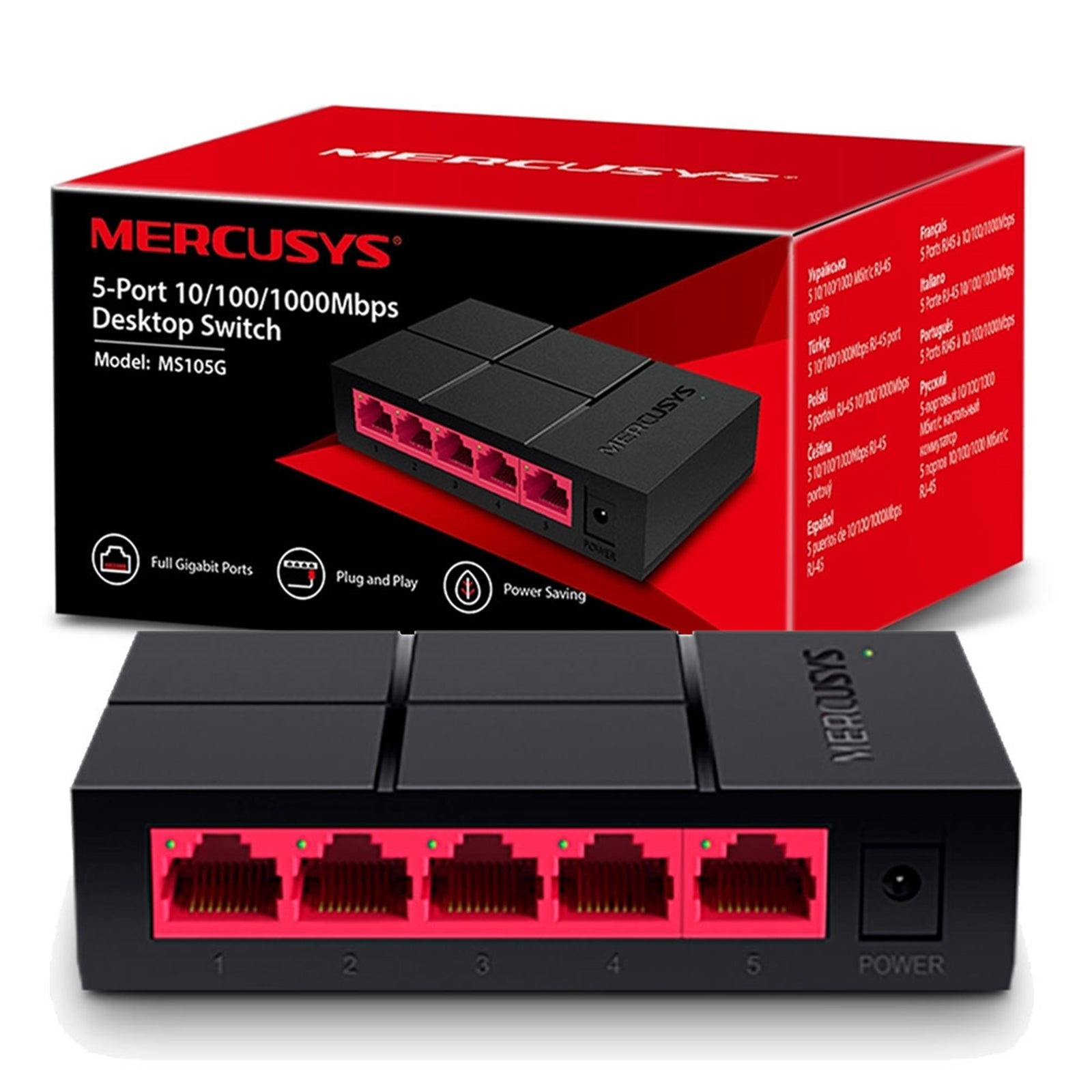

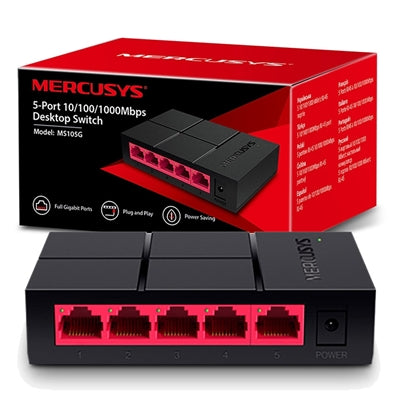

5-Port Gigabit Ethernet Switch for Home and Office Networks

The Mercusys MS105G delivers reliable gigabit networking with five 10/100/1000 Mbps auto-negotiation RJ45 ports. This unmanaged switch provides 10 times faster speeds than standard 10/100 Mbps Ethernet ports, making it compatible with 4K Ultra HD TVs, computers, printers, IP cameras, and game consoles.

Gigabit Speed Network Expansion

Each of the five ports supports auto-negotiation and auto MDI/MDIX, providing flexible connectivity without the need for crossover cables. The switch delivers up to 10 Gbps of stable switching bandwidth through Half/Full Duplex operation and MAC Address Learning Technology. With a 512 Kbit buffer capacity and support for 9 KB jumbo frames, the MS105G handles data-intensive applications efficiently.

Plug and Play Installation

No configuration or software installation required. Connect the switch to your devices via Ethernet cables and immediately expand your wired network. The store-and-forward transfer method ensures reliable packet delivery while the switch automatically adjusts to optimal port settings.

Compact Desktop Design

Measuring 105 x 70 x 24.9 mm, the MS105G features a compact footprint similar to a smartphone. The desktop form factor fits easily in home offices, small business environments, and dormitories without consuming valuable desk space.

Energy-Efficient Green Ethernet Technology

The MS105G incorporates green Ethernet technology that reduces power consumption by up to 82%. The switch automatically adjusts power usage based on link status and cable length, minimizing energy costs and environmental impact while maintaining full gigabit performance.

Technical Specifications

Interfaces: 5 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

LED Indicators: Ethernet Ports (1, 2, 3, 4, 5), Power

External Power Supply: 5V/0.6A

Dimensions (W X D X H): 105 x 70 x 24.9 mm

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates: 10/100/1000 Mbps at Half Duplex, 20/200/2000 Mbps at Full Duplex

Buffer Capacity: 512 Kbit

Jumbo Frame: 9 KB

Transfer Method: Store and Forward

Package Contents: 5-Port 10/100/1000Mbps Desktop Switch (MS105G), Power Adapter, Quick Installation Guide

• Ports: 5 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
