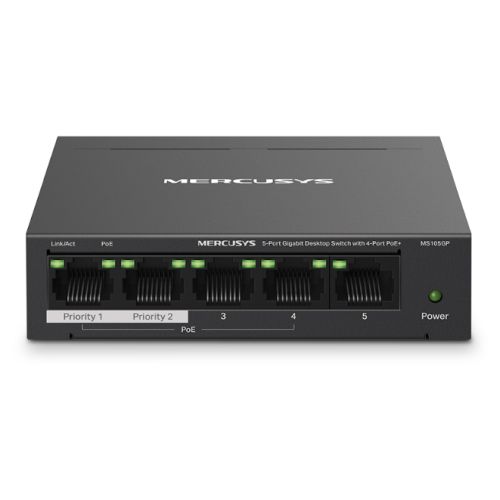

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

The Mercusys MS105GP delivers enterprise-grade network performance in a compact desktop form factor. This 5-port gigabit switch features 4 PoE+ ports with a 65W power budget, making it the optimal solution for small business networks, office surveillance systems, and multi-device deployments.

Full Gigabit Performance with PoE+ Power Delivery

All five RJ45 ports support 10/100/1000 Mbps speeds with auto-negotiation and Auto MDI/MDIX. Ports 1-4 deliver IEEE 802.3af/at compliant PoE+ power, with each port supporting up to 30W individually. The 65W total power budget enables simultaneous operation of IP cameras, wireless access points, VoIP phones, and other powered devices without additional electrical infrastructure.

Extended Range Transmission up to 250 Meters

Activate Extend Mode to push PoE transmission distances to 250 meters—ideal for large-area surveillance camera installations and remote device deployments. This feature eliminates the standard 100-meter Ethernet limitation, providing flexibility for warehouse, campus, and outdoor applications.

Network Security with Isolation Mode

One-click isolation mode separates traffic on ports 1-4, preventing unauthorized access between connected devices. This VLAN-like functionality protects against broadcast storms and enhances security for sensitive network segments without complex configuration.

Priority Traffic Management

Built-in port prioritization ensures bandwidth-sensitive applications like video conferencing and VoIP receive consistent data flow. The switch automatically manages traffic to maintain quality of service for critical business communications.

Industrial-Grade Steel Construction

The durable metal chassis provides superior heat dissipation and electromagnetic interference shielding. Fanless design ensures silent operation while maintaining optimal performance in temperature ranges from 0°C to 40°C. Compact 99.8 x 98 x 25mm dimensions fit any workspace.

Zero-Configuration Deployment

Plug-and-play operation requires no software installation or network configuration. The MS105GP automatically detects connected devices and negotiates optimal speeds. 2K MAC address table and 9KB jumbo frame support handle complex network topologies efficiently.

Technical Specifications

• Ports: 5x 10/100/1000Mbps Gigabit Ethernet
• PoE Ports: 4 ports (1-4) with 802.3af/at compliance
• Power Budget: 65W total, 30W per port maximum
• Extend Mode: 250m transmission distance (10Mbps)
• Standards: IEEE 802.3x Flow Control
• Switching Capacity: 2K MAC address table, 9KB jumbo frames
• Power Input: 53.5V/1.31A external adapter
• Warranty: 3 years manufacturer coverage

The Mercusys MS105GP combines affordability with professional-grade features, delivering reliable network infrastructure for growing businesses. Compatible with all IEEE 802.3af/at powered devices, this switch simplifies installation while reducing cabling costs and deployment time.

5-Port Gigabit Desktop Switch with 4-Port PoE+

• Full Gigabit Ports: 5x 10/100/1000 Mbps RJ45 ports
• Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing: Allows for efficient heat dissipation and long network life
• Plug and Play: Simple to use and saves time and effort

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 5
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): "5 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX"
• PoE Ports (RJ45): Compliant with 802.3 af/at Powered Devices
  PoE Ports: Port 1- Port 4
  PoE Power Budget: 65 W
• Standards and Protocols: IEEE 802.3x Flow Control


• Power Supply: External Power Adapter (Output: 53.5V/1.31A)
• Dimensions: 99.8 x 98 x 25 mm
• Mac Address Table: 2K
• Jumbo Frame: 9 KB
• Additional Features: See Overview
• Environment: perating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% RH non-condensing
  Storage Humidity: 5%~95% RH non-condensing
• Package Contents: 5-Port Gigabit Desktop Switch (MS105GP)
  Power Adapter
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.7000 kg
• Warranty: 3 Years
• #Hide#POE: Yes
