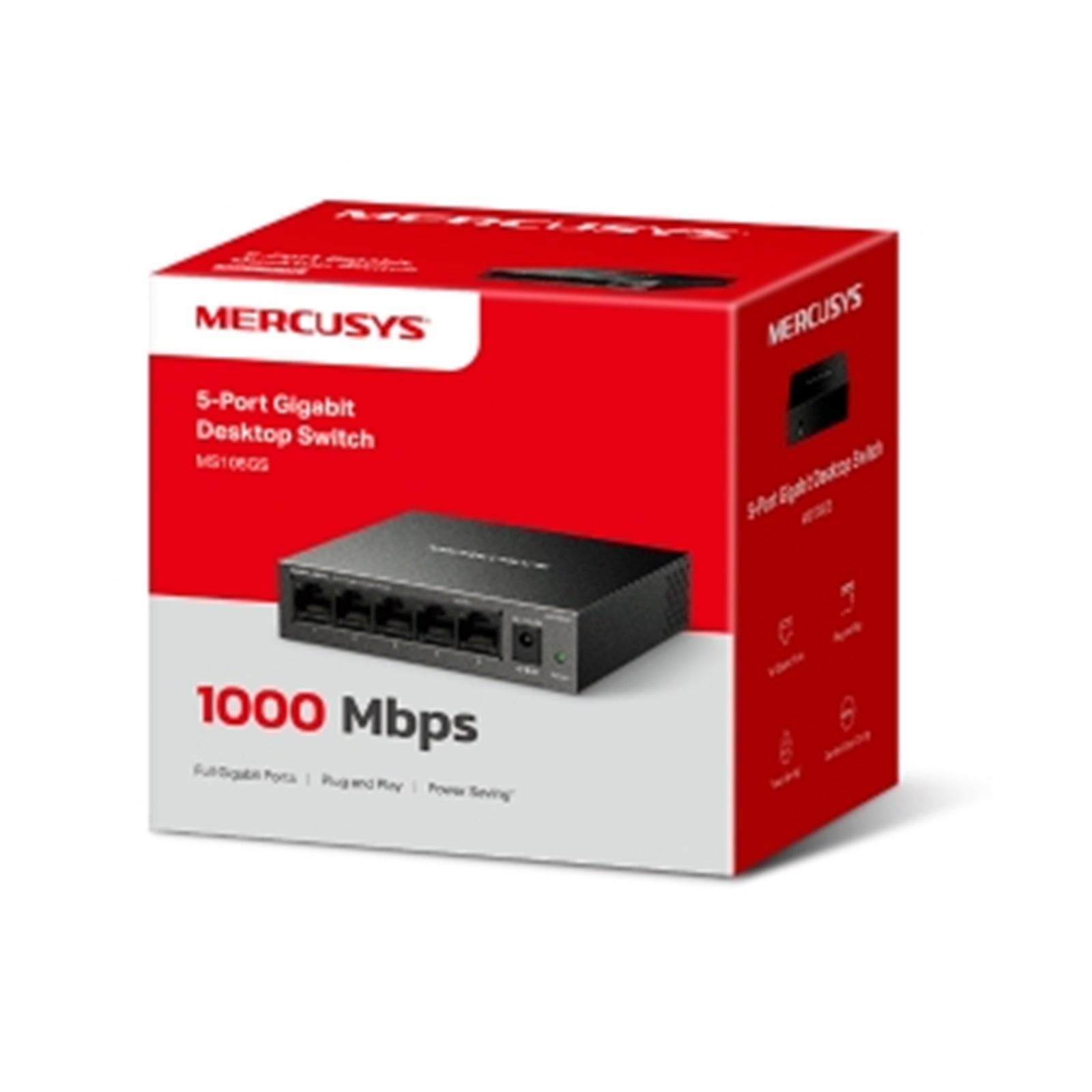

MS105GS 5-Port Gigabit Desktop Switch

The Mercusys MS105GS delivers reliable gigabit connectivity for home offices, small businesses, and dormitory networks. This unmanaged switch features five 10/100/1000 Mbps Auto-Negotiation RJ45 ports with Auto-MDI/MDIX support, providing 10 times faster speeds than standard 10/100 Mbps Ethernet connections.

Durable Steel Construction

Built with a metal housing, the MS105GS ensures efficient heat dissipation and superior signal interference prevention. The steel case construction delivers reliable equipment stability and extends network life while operating silently. Choose between desktop placement or wall-mounting installation to fit your space requirements.

Full Gigabit Performance

Compatible with 4K Ultra HD TVs, computers, printers, IP cameras, and game consoles, the MS105GS provides up to 10 Gbps of stable switching bandwidth. Half/Full Duplex and MAC Address Learning Technology ensure consistent, uninterrupted connections. Support for 9 KB Jumbo Frames and 1 Mbit buffer capacity optimize data transfer efficiency.

Energy-Efficient Operation

Green Ethernet technology automatically adjusts power consumption based on link status and cable length, reducing your network's carbon footprint. The 5V/0.6A external power supply delivers efficient operation while minimizing energy costs.

Zero Configuration Required

Connect the switch to your devices via Ethernet cable and start using your expanded network immediately. No software installation or configuration needed. The plug-and-play design saves time and simplifies network expansion.

Technical Specifications

Interfaces: 5 x 10/100/1000Mbps Ports with Auto-Negotiation and Auto-MDI/MDIX
Transfer Method: Store and Forward
Data Rates: 10/100/1000 Mbps Half Duplex, 20/200/2000 Mbps Full Duplex
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Dimensions: 3.92 x 3.86 x 0.99 inches
Buffer Capacity: 1 Mbit
Jumbo Frame: 9 KB

Each unit undergoes extensive testing before shipment to ensure years of reliable performance. The MS105GS includes the switch, power adapter, and quick installation guide.

• Ports: 5 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
