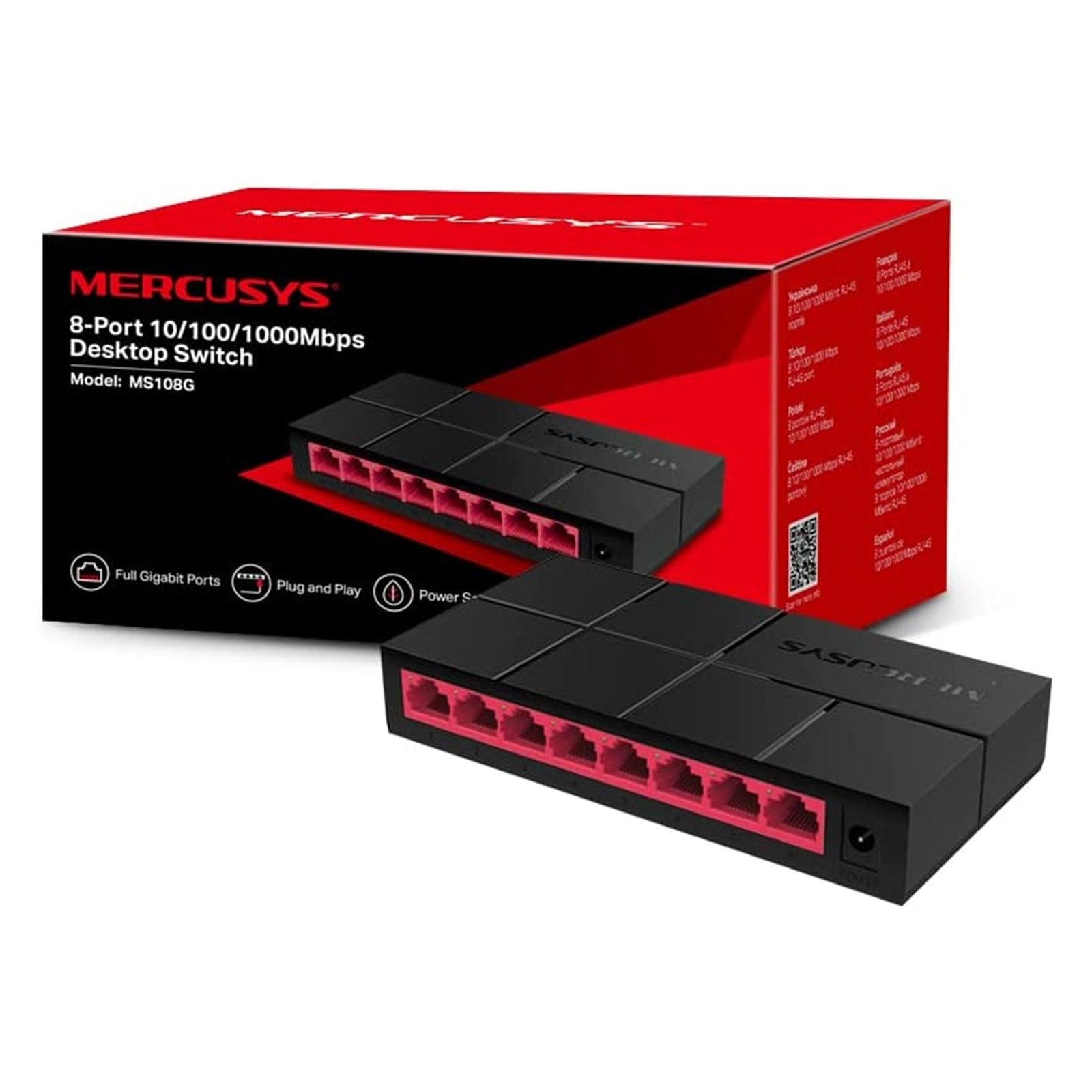

8-Port Gigabit Ethernet Switch for Home and Office Networks

The Mercusys MS108G delivers reliable gigabit connectivity with eight 10/100/1000 Mbps auto-negotiation RJ45 ports. This unmanaged switch provides data transfer speeds up to 10 times faster than standard 10/100 Mbps ethernet ports, supporting 20/200/2000 Mbps at full duplex operation.

Instant Network Expansion

Connect up to eight devices simultaneously including 4K Ultra HD TVs, computers, printers, IP cameras, and game consoles. The MS108G features auto MDI/MDIX support, eliminating the need for crossover cables. With store-and-forward transfer method and 64KB buffer capacity, the switch handles data efficiently while supporting jumbo frames up to 9KB.

Zero Configuration Required

This plug-and-play switch requires no software installation or configuration. Simply connect your devices via ethernet cables to immediately expand your wired network. Half/Full Duplex capability and MAC Address Learning Technology ensure stable, uninterrupted connections. The switch complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x CSMA/CD standards.

Energy-Efficient Operation

Green Ethernet technology reduces power consumption by up to 82% through intelligent power adjustment. The switch automatically optimizes energy usage based on link status and cable length, powered by an external 9V/0.6A adapter.

Compact Desktop Design

Measuring 127 x 60.3 x 22 mm, the MS108G features a space-saving footprint suitable for desks, shelves, or entertainment centers. LED indicators for each port plus power status provide clear visibility of network activity.

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Specifications

Interfaces
8 10/100/1000Mbps Ports, Auto-Negotiation,
Auto-MDI/MDIX

LED
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

External Power Supply
9V/0.6A

Dimensions (W X D X H)
127 x 60.3 x 22 mm

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex

Buffer Capacity
64KB

Jumbo Frame
9KB

Transfer Method
Store and Forward

• Ports: 8 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
