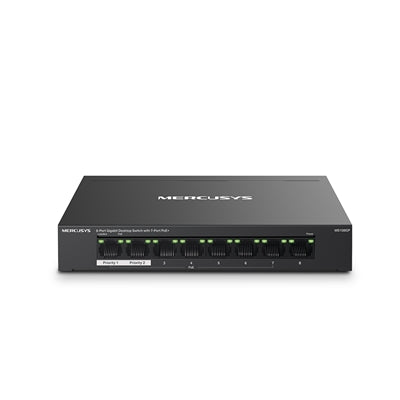

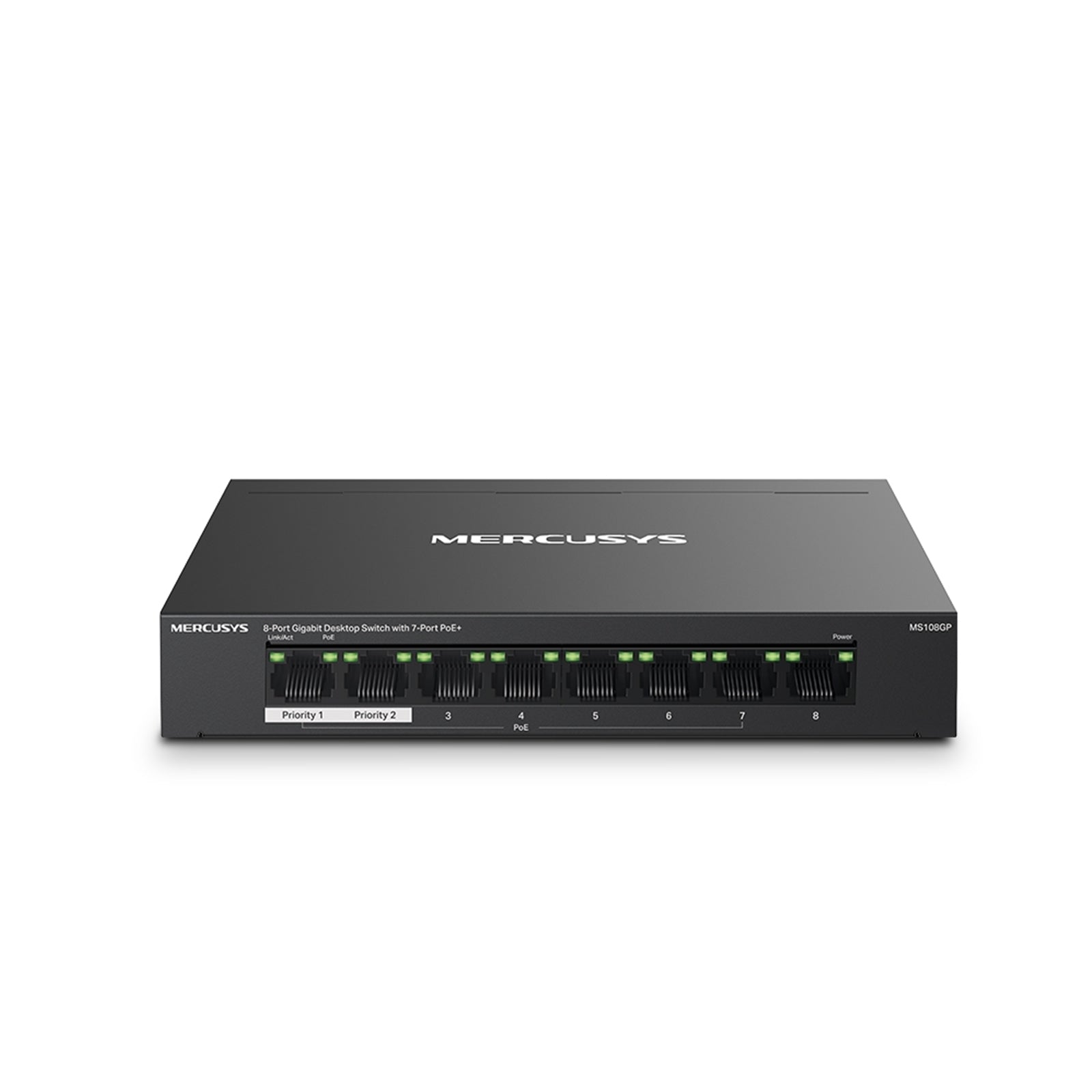

Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

The Mercusys MS108GP delivers reliable network connectivity with Power over Ethernet capability for small business and home office deployments. This unmanaged switch features 8 full gigabit ports, with 7 ports supporting PoE+ to power and connect devices through a single cable.

Full Gigabit Performance

All 8 RJ45 ports support 10/100/1000 Mbps speeds at both half and full duplex, providing 2000 Mbps throughput per port in full duplex mode. The 8K MAC address table and 9KB jumbo frame support ensure efficient data handling for demanding network applications.

Power over Ethernet Plus

Seven ports deliver IEEE 802.3af/at compliant PoE+, supplying up to 30W per port with a total 65W power budget. This eliminates the need for separate power adapters for IP cameras, VoIP phones, wireless access points, and other compatible powered devices.

Extended Range Transmission

Extend Mode increases PoE transmission distance up to 250 meters, significantly beyond the standard 100-meter Ethernet limitation. This feature proves essential for deploying devices in remote locations such as parking lots, building perimeters, or large warehouse spaces.

Network Isolation and Security

The one-click Isolation Mode divides traffic for specific ports, preventing communication between selected ports while maintaining uplink connectivity. This feature enhances network stability and security by segmenting traffic from different device groups.

Durable Metal Construction

The metal casing provides efficient heat dissipation for continuous operation, with maximum power consumption of 77.33W when fully loaded with 65W of connected powered devices. Compact dimensions of 171x98x27mm allow flexible desktop or wall-mount placement.

Plug-and-Play Operation

No configuration required. Connect devices and the switch automatically negotiates optimal speeds and PoE power delivery. IEEE 802.3x flow control prevents packet loss during high-traffic periods.

Full Gigabit Ports
8x 10/100/1000 Mbps RJ45 ports

Two Cables in One
With 7 PoE ports, transfers data and power on one single cable

High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports

Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode

Isolation Mode
One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing
Allows for efficient heat dissipation and long network life

Plug and Play
Simple to use and saves time and effort

Specifications

Hardware

Dimensions (W X D X H)
171x98x27 mm

PoE Ports
RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W

External Power Supply
External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols
IEEE 802.3x Flow Control

Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame
9 KB

Mac Address Table
8K

Max Power Consumption
5.07W(220 V / 50 Hz, no PD connected)

77.33W(220 V / 50 Hz, with 65W PD connected)

Max Heat Dissipation
17.238 BTH/h (no PD connected)
262.922 BTH/h(with 65W PD connected)

Others

Package Contents
8-Port Gigabit Desktop Switch with 7-Port PoE(MS108GP)
Power Adapter
Quick Installation Guide

• Ports: 7 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: Yes
