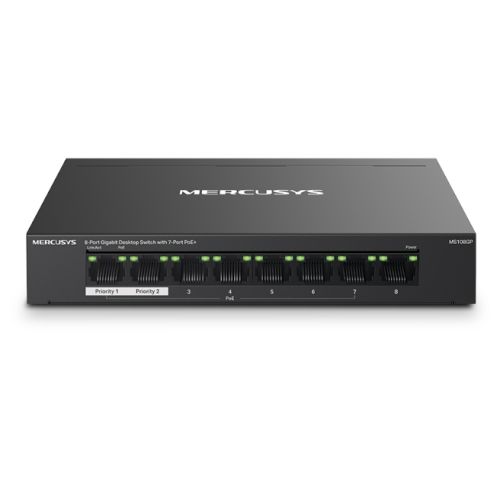

Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

The Mercusys MS108GP delivers professional-grade network connectivity with Power over Ethernet capabilities in a compact desktop design. This 8-port gigabit switch features 7 PoE+ enabled ports, making it an efficient solution for powering IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at compliant devices without additional power adapters.

Full Gigabit Performance with Integrated PoE+

All eight 10/100/1000 Mbps RJ45 ports deliver full gigabit speeds for demanding network applications. Ports 1-7 provide PoE+ functionality with up to 30W per port and a total 65W power budget, enabling you to deploy multiple powered devices across your network infrastructure. The steel case construction ensures efficient heat dissipation and long-term reliability in business environments.

Extended Range Capabilities

Extend Mode increases PoE transmission distance up to 250 meters, ideal for surveillance camera installations across large areas where standard 100-meter Ethernet limitations would require additional infrastructure. This feature provides flexibility in camera placement for comprehensive security coverage in offices, warehouses, and commercial properties.

Network Security and Traffic Management

The Isolation Mode feature enables one-click traffic separation for ports 1-7, preventing broadcast storms and unauthorized access between connected devices. Port prioritization ensures quality of service for latency-sensitive applications like VoIP and video conferencing. These management features provide enterprise-level network control in an unmanaged switch format.

Simple Deployment

Plug-and-play operation with auto-negotiation and automatic MDI/MDIX eliminates configuration requirements. The fanless design operates silently while the durable metal housing protects internal components. With an 8K MAC address table and 15KB jumbo frame support, the MS108GP handles modern network traffic efficiently.

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 8 x 10/100/1000Mbps Ports
• PoE Ports (RJ45): Compliant with 802.3 af/at Powered Devices
  PoE Ports: Port 1- Port 7
  PoE Power Budget: 65 W
• Standards and Protocols: IEEE 802.3x Flow Control
• Power Supply: External Power Adapter (Output: 53.5V/1.31A)
• Dimensions: 171 x 98 x 27 mm
• Mac Address Table: 8K
• Jumbo Frame: 15 KB
• Additional Features: See Overview
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% RH non-condensing
  Storage Humidity: 5%~95% RH non-condensing
• Package Contents: 8-Port Gigabit Desktop Switch (MS108GP)
  Power Adapter
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.8400 kg
• Warranty: 3 Years
• #Hide#POE: Yes
