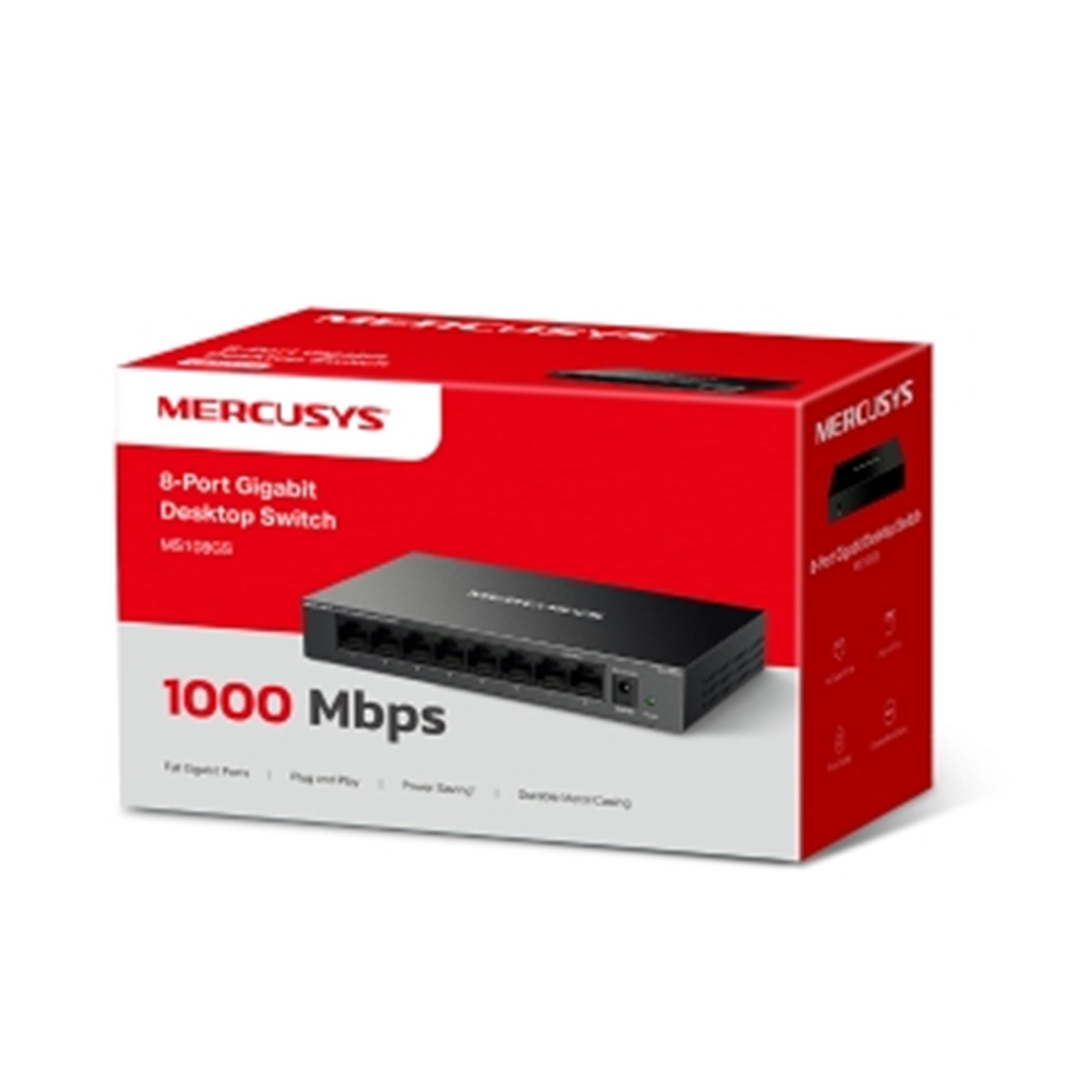

Mercusys MS108GS 8-Port Gigabit Desktop Switch

The MS108GS provides eight 10/100/1000 Mbps Gigabit Ethernet ports for expanding your wired network. This unmanaged switch delivers speeds 10 times faster than standard 10/100 Mbps connections, making it suitable for bandwidth-intensive applications and multiple device connections.

Full Gigabit Performance

All eight ports support Auto-Negotiation and Auto-MDI/MDIX, automatically detecting optimal connection speeds and cable configurations. The switch handles data transfer rates up to 2000 Mbps at full duplex, with a 4 Mbit buffer capacity and support for 15 KB jumbo frames. Compatible with 4K Ultra HD TVs, computers, printers, IP cameras, and game consoles.

Steel Housing Construction

The durable metal case facilitates efficient heat dissipation while preventing signal interference. This steel construction ensures equipment stability and extends network lifespan. The compact 6.2 x 3.9 x 1.0 inch design supports both desktop placement and wall-mounting installation.

Plug-and-Play Operation

No configuration required. Connect the switch to your devices via Ethernet cables to immediately expand network capacity. The store-and-forward transfer method, combined with Half/Full Duplex and MAC Address Learning Technology, ensures reliable data transmission.

Energy-Efficient Technology

Green Ethernet technology automatically adjusts power consumption based on link status and cable length, reducing the carbon footprint of your network. The switch operates on 5V/0.6A external power supply, minimizing energy usage while maintaining full gigabit performance.

Technical Specifications

Software

Transfer Method
Store and Forward

Hardware

Dimensions (W X D X H)
6.2 x 3.9 x 1.0 in

Interfaces
8 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

External Power Supply
5V/0.6A

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex

Buffer Capacity
4 Mbit

Jumbo Frame
15 KB

LED
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

Others

Package Contents
8-Port Gigabit Desktop Switch (MS108GS)
Power Adapter
Quick Installation Guide

• Ports: 8 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
