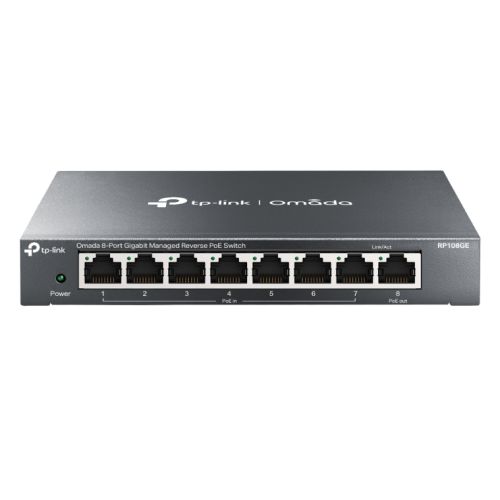

TP-LINK RP108GE 8-Port Gigabit Managed Reverse PoE Switch

The TP-LINK RP108GE is a managed reverse PoE switch designed for network installations requiring centralized power management. This 8-port gigabit switch features 7 PoE input ports and 1 PoE output port, enabling flexible power distribution in professional networking environments.

Reverse PoE Architecture

The TL-RP108GE receives power through seven gigabit PoE input ports via PoE injectors from user outlets. Port 8 functions as a PoE output port, supplying power to CPEs and similar network devices. This reverse PoE configuration consolidates data switching and power delivery into a single unit, reducing cable clutter and eliminating the need for multiple dedicated electrical outlets.

Dual Voltage DC Output

The integrated DC output port supports both 5V and 12V voltage switching, providing compatibility with ONTs and other devices requiring direct DC power. This dual voltage capability adds deployment flexibility for various network equipment configurations.

Gigabit Performance and Management

All 8 RJ45 ports support 10/100/1000 Mbps auto-negotiation with a switching capacity of 16 Gbps and packet forwarding rate of 11.9 Mbps. The switch operates on a store-and-forward transfer method with a 4K MAC address table and supports jumbo frames up to 16KB.

Management features include web user interface and downloadable utility access, supporting port-based/802.1p/DSCP priority with 4 priority queues, rate limiting, and storm control. VLAN support accommodates up to 32 simultaneous VLANs from 4K VLAN IDs with MTU/Port/Tag configurations.

Layer 2 Network Features

The RP108GE includes IGMP Snooping V1/V2/V3, static link aggregation, port mirroring, cable diagnostics, and loop prevention. These Layer 2 features ensure reliable network operation and simplified troubleshooting in managed network environments.

Durable Metal Construction

The professional-grade metal casing measures 158 x 99.1 x 25 mm, providing durability and heat dissipation for continuous operation. The compact design with included rubber feet allows for desktop placement without rack mounting requirements.

Power Efficiency and Standards Compliance

Green technology implementation reduces overall power consumption. The switch complies with IEEE802.3ab, IEEE802.3i, IEEE802.3p, IEEE802.3q, IEEE802.3x, and IEEE802.3u standards, ensuring compatibility with existing network infrastructure. Operating temperature range spans 0°C to 40°C with 10% to 90% non-condensing humidity tolerance.

Description

Specification

• Rackmountable: No
• Managed: Yes
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 7 Passive PoE-in RJ45 Ports:
  10/100/1000Mbps Auto-Negotiation
  Voltage: 24/48 V (mixture is not supported)
  Power pin of Ethernet cable: 4/5+ 7/8-

  1 Passive PoE-out RJ45 Port:
  10/100/1000Mbps Auto-Negotiation
  Voltage: depending on the input voltage of PoE-in ports
  Power pin of Ethernet cable: 4/5+ 7/8-

  1 DC Output Port:
  Voltage: 5/12 V
• PoE Ports (RJ45): See above
• Standards and Protocols: "CSMA/CD

  IEEE802.3ab, IEEE802.3i, IEEE802.3p
  IEEE802.3q, IEEE802.3x, IEEE802.3u"
• Switching Capacity: 16 Gbps
• LED: "Power, Link/Act LED"
• Dimensions: 158 x 99.1 x 25 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 4 K
• Packet Forwarding Rate: 11.9 Mbps
• Jumbo Frame: 16 KB
• Additional Features: See Overview
• Quality of Service: Support Port-based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control
• Layer Features: L2:
  IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN
• Management: Intelligent management via a web user interface and downloadable utility
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: TL-RP108GE
  Power Cord
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 0.4300 kg
• Warranty: 2 Years
