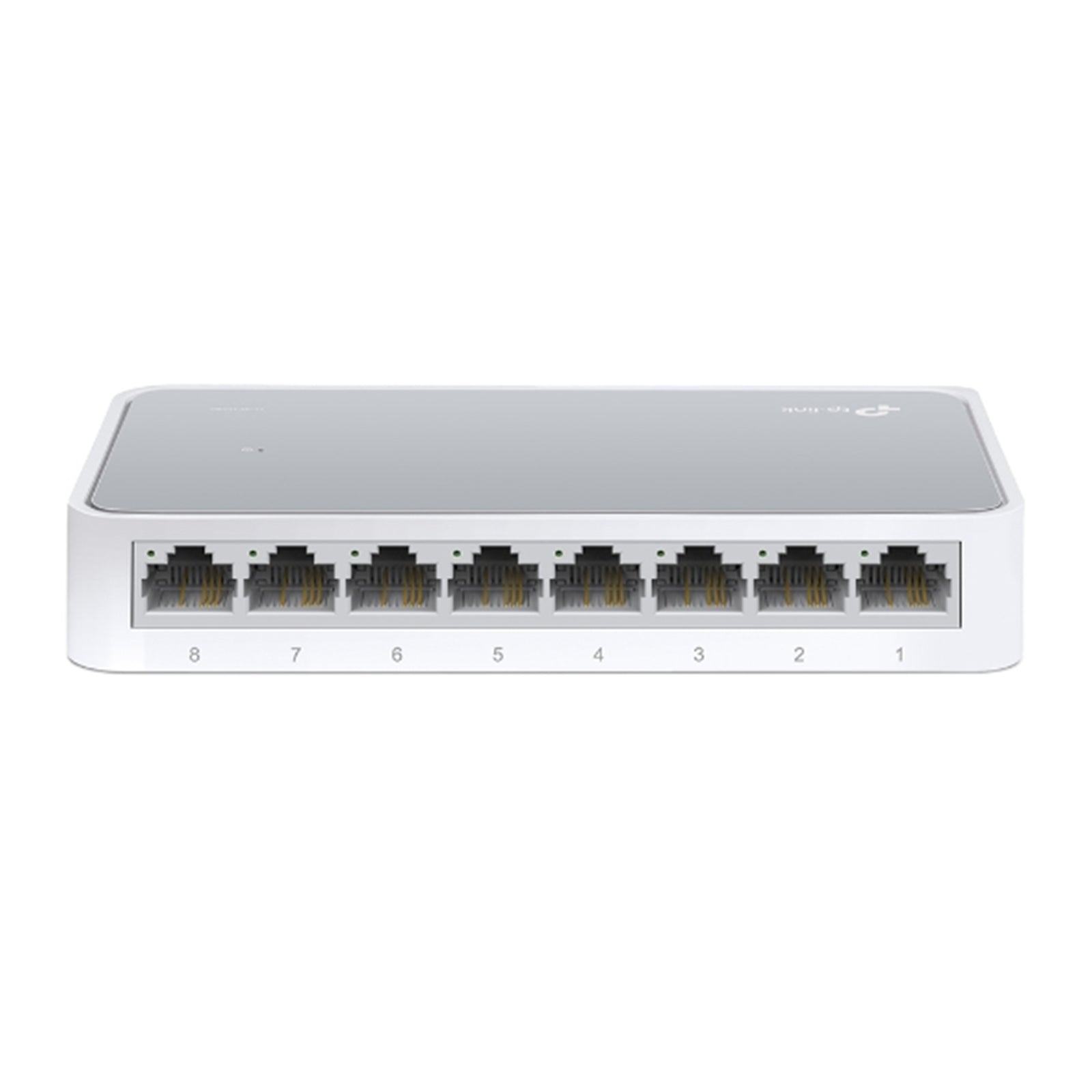

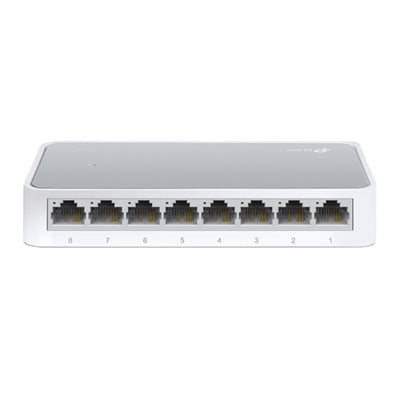

TP-Link TL-SF1008D 8-Port Fast Ethernet Desktop Switch

The TP-Link TL-SF1008D delivers reliable network connectivity for small office and home office environments. This 8-port Fast Ethernet switch provides straightforward network expansion with 10/100Mbps Auto-Negotiation RJ45 ports, eliminating complex configuration requirements.

Plug-and-Play Network Expansion

This unmanaged switch requires zero configuration. Simply connect your devices and start working. All 8 ports support Auto-MDI/MDIX functionality, which automatically detects and adjusts to straight-through or crossover cables, removing the need for specialized cabling. Each port functions as both a general port and uplink port, connecting seamlessly to servers, hubs, or other switches.

Wire-Speed Performance

The TL-SF1008D features non-blocking switching architecture with a 768Kb buffer, forwarding and filtering packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode prevent traffic congestion during high-demand periods. Data transfer rates reach 20/200Mbps at Full Duplex and 10/100Mbps at Half Duplex.

Fanless Design for Silent Operation

The fanless construction ensures completely silent operation, ideal for desktop placement in quiet office environments. The compact dimensions (5.3 x 3.1 x 0.9 inches) and desktop or wall-mounting design options provide flexible installation. Maximum power consumption of just 2.05W and heat dissipation of 6.99BTU/h make this an energy-efficient networking solution.

LED Monitoring and Reliability

Front-panel LED indicators display power status and link/activity for all 8 ports, enabling quick troubleshooting and network monitoring. The switch operates reliably in temperatures from 0°C to 40°C with 10-90% non-condensing humidity tolerance.

Technical Specifications

Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD
Ports: 8 x 10/100Mbps Auto-Negotiation RJ45 with Auto-MDI/MDIX
Transfer Method: Store and Forward
Power Supply: External adapter (5.0VDC/0.6A, 100-240VAC input)
Certifications: FCC, CE, RoHS

Package includes the 8-port switch, power adapter, and installation guide. Backed by TP-Link's quality standards, the TL-SF1008D provides dependable network connectivity for workgroups, home offices, and small business applications.

• Ports: 8 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100
• PoE capable: No
