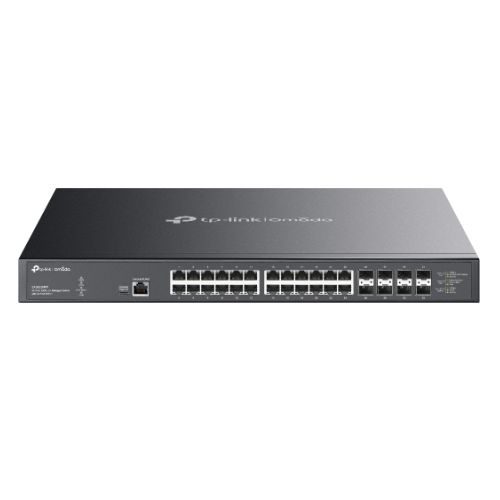

TP-Link Omada SX3832MPP 32-Port 10GE Managed Switch

The TP-Link SX3832MPP delivers enterprise-grade network performance with 24x 1/2.5/5/10 Gbps RJ45 PoE++ ports and 8x 1/10 Gbps SFP+ slots. With a 770W total PoE budget and up to 90W per port, this L2+ managed switch powers high-demand devices including access points, IP cameras, and VoIP phones without separate power supplies.

High-Performance Network Infrastructure

Built with 640 Gbps switching capacity and 240 Mpps packet forwarding rate, the SX3832MPP handles intensive network traffic across all 32 ports simultaneously. The multi-gigabit RJ45 ports support 1/2.5/5/10 Gbps speeds, providing flexibility for current and future network requirements. Eight dedicated SFP+ slots enable fiber connectivity for long-distance runs and high-speed uplinks.

Centralized Cloud Management

Integration with TP-Link's Omada SDN platform enables centralized management through web interface or mobile app. The Software-Defined Networking architecture allows administrators to configure and monitor multiple switches, access points, and routers from a single dashboard. Zero-Touch Provisioning simplifies deployment across multiple locations, while standalone management remains available via web, CLI, SNMP, and RMON.

Advanced Layer 2+ Features

Static routing capabilities optimize internal traffic flow between VLANs without requiring a separate router. The switch supports 128 IP interfaces, 48 IPv4/IPv6 static routes, and 4K VLAN groups for network segmentation. ERPS (Ethernet Ring Protection Switching) provides rapid protection and recovery in ring topologies, ensuring network uptime.

Comprehensive Security and QoS

Enterprise security features include 802.1X authentication, IP-MAC-Port binding, DoS defense, and port security supporting up to 64 MAC addresses per port. Eight priority queues with 802.1p CoS/DSCP classification ensure critical traffic receives bandwidth priority. ACL policies support time-based rules, MAC/IP filtering, and packet content inspection.

Robust Hardware Design

The durable metal chassis with rack-mount design fits standard 19-inch racks. Operating temperature range of -5°C to 45°C supports deployment in various environments. Dual image and dual configuration support ensures firmware updates without downtime. The switch includes redundant power supply compatibility for mission-critical installations.

Multicast and VLAN Management

IGMP/MLD snooping optimizes multicast traffic distribution across 4,000 multicast groups. VLAN capabilities include 802.1q tagging, MAC VLAN (256 entries), protocol VLAN, private VLAN, and voice VLAN for prioritized VoIP traffic. GVRP automates VLAN configuration across the network.

Technical Specifications:

• 24x 1/2.5/5/10 Gbps RJ45 PoE++ ports (IEEE 802.3bt/at/af)
• 8x 1/10 Gbps SFP+ slots
• 770W PoE budget, 90W maximum per port
• 640 Gbps switching capacity
• 240 Mpps packet forwarding rate
• 32K MAC address table
• 9KB jumbo frame support
• RJ45 and USB Type-C console ports
• Dimensions: 440 x 330 x 44 mm
• Limited lifetime warranty

Package Includes: SX3832MPP Switch, power cord, console cable, quick installation guide, rackmount kit, and rubber feet.
