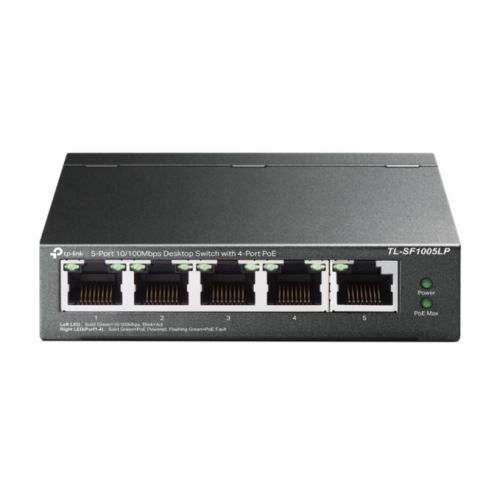

TP-Link TL-SF1005LP 5-Port Desktop PoE Switch

The TP-Link TL-SF1005LP delivers reliable power and data transmission for small business networks and IP surveillance systems. This unmanaged desktop switch features 5× 10/100Mbps RJ45 ports with 4 dedicated PoE ports, providing a 41W power budget to support IP cameras, access points, IP phones, and other IEEE 802.3af compliant devices.

Extended Range PoE Transmission

The built-in Extend Mode enables PoE transmission distances up to 250m, significantly exceeding standard 100m limitations. This extended range makes the TL-SF1005LP ideal for deploying IP cameras across large areas such as warehouses, parking lots, and office complexes without requiring additional infrastructure.

Priority Mode for Critical Applications

Ports 1-2 support Priority Mode, ensuring bandwidth allocation for time-sensitive applications like video surveillance and VoIP. When enabled, these ports receive higher priority, guaranteeing consistent performance for critical monitoring equipment even during network congestion.

Intelligent Power Management System

The switch automatically detects and supplies the required power for each connected PoE device while protecting non-PoE equipment from damage. When total power consumption exceeds the 41W budget, the intelligent power management system cuts power to lower-priority ports, maintaining operation of high-priority devices and preventing system overload.

Durable Steel Construction

Built with high-quality metal casing, the TL-SF1005LP withstands demanding environments and ensures long-term reliability. The compact 100 × 98 × 25mm form factor fits easily on desktops or can be mounted in tight spaces, while the steel housing provides superior protection for internal components.

Plug and Play Installation

No configuration required—simply connect your devices and power on. The switch features auto-negotiation, auto MDI/MDIX, MAC address auto-learning, and store-and-forward switching for seamless network integration. IEEE 802.3x flow control prevents packet loss during high-traffic periods.

Technical Specifications

• 5× 10/100Mbps RJ45 ports (4 PoE-enabled)
• IEEE 802.3af compliant, 15.4W per port
• 41W total PoE power budget
• 1Gbps switching capacity
• 0.744Mpps packet forwarding rate
• 2K MAC address table
• Extend Mode: up to 250m transmission distance
• Operating temperature: 0–40°C
• Limited lifetime warranty

The TL-SF1005LP provides a cost-effective solution for powering and connecting PoE devices in surveillance systems, small offices, dormitories, and retail environments. Its combination of extended range capability, intelligent power management, and priority traffic handling makes it the practical choice for reliable network infrastructure.

5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE

• 5x 10/100 Mbps RJ45 ports
• 4x PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports*
• Plug and play with no configuration required

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 5
• Max RJ45 Transfer Rate: 10/100 Mbps
• Interface(s): 5 X 10/100 Mbps RJ45 (1 - 4 support 802.3af PoE)
  AUTO Negotiation
  AUTO MDI/MDIX
• PoE Ports (RJ45): Standard: 802.3 af compliant
  PoE Ports: Ports 1–4
  Power Supply: 41 W
• Switching Capacity: 1 Gbps
• Power Supply: "External Power Adapter (Output: 53.5 V DC / 0.81 A)

  Consumption:
  1.9 W (220 V / 50 Hz, no PD connected)
  47 W (220 V / 50 Hz, with 41 W PD connected)"
• Dimensions: 100 x 98 x 25 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 2K
• Packet Forwarding Rate: 0.744 Mpps
• Jumbo Frame: 2 KB
• Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
  Extend Mode Button (Ports 1–4)
  Priority Mode Button (Ports 1–2)
  Mac Address Auto-Learning And Auto-Aging
  IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
• Security: Physical Security Lock
• Environment: Operating Temperature: 0–40C (32–104F)
  Storage Temperature: -40–70C (-40–158F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: TL-SF1005LP
  Power Adapter
  Installation Guide
• Package Type: Retail
• Package Weight: 0.7500 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
