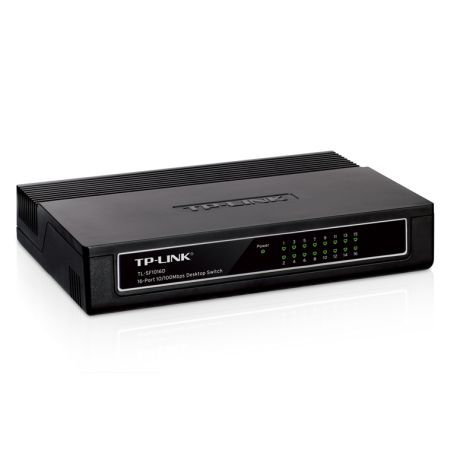

TP-LINK TL-SF1016D 16-Port Fast Ethernet Switch

The TP-LINK TL-SF1016D delivers reliable network connectivity for small office and home office environments. This 16-port fast ethernet switch provides straightforward plug-and-play operation without requiring configuration, making it accessible for users at any technical level.

16-Port Fast Ethernet Connectivity

Equipped with 16 10/100Mbps auto-negotiation RJ45 ports, the TL-SF1016D accommodates multiple wired connections simultaneously. All ports feature Auto MDI/MDIX functionality, eliminating the need for crossover cables or dedicated uplink ports. The non-blocking switching architecture forwards and filters packets at full wire-speed, ensuring maximum throughput for your network traffic.

Energy-Efficient Green Technology

The TL-SF1016D incorporates TP-LINK's green ethernet technology, reducing power consumption by up to 70% compared to conventional switches. The switch automatically adjusts power usage based on link status and cable length, minimizing energy waste. Additionally, 70% of the packaging material is recyclable, and the device complies with EU RoHS standards by prohibiting hazardous materials.

Reliable Data Transfer Performance

With support for 10K Jumbo frames, the TL-SF1016D significantly improves performance when transferring large files across your network. IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode work together to alleviate traffic congestion and maintain reliable operation under heavy network loads. The 1K MAC address table efficiently manages connected devices.

Simple Installation and Operation

The TL-SF1016D requires no configuration or software installation. Connect your devices, power on the switch, and your network is ready. Auto-negotiation on each port automatically detects the link speed of connected devices and adjusts for optimal compatibility and performance. The compact plastic case design allows for desktop placement or wall-mounting to suit your workspace requirements.

Technical Specifications

• Rackmountable: No
• Managed: No
• Number of Ports: 16
• Max RJ45 Transfer Rate: 10/100 Mbps
• Interface(s): 16 x 10/100Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• Power Supply: 100~240VAC, 50/60Hz
• Dimensions: 7.9 x 5.6 x 1.6 in. (200 x 142 x 40 mm)
• Transfer Method: Store and Forward
• Mac Address Table: 1K
• Additional Features: Green Technology, saving power up to 70%
  802.3X Flow Control, Back Pressure
  Auto-Uplink Every Port
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F);
  Storage Temperature: -40°C~70°C (-40°F~158°F);
  Operating Humidity: 10%~90% non-condensing;
  Storage Humidity: 5%~90% non-condensing
• Package Contents: 16-Port 10/100Mbps Desktop Switch TL-SF1016D
  Power Adapter
  User Guide
• Package Type: Retail
• Package Weight: 0.6900 kg
• Warranty: 3 Years
• #Hide#POE: No
