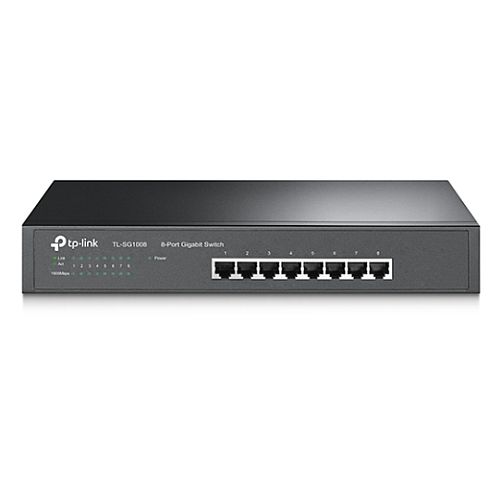

TP-LINK TL-SG1008 8-Port Gigabit Desktop/Rackmount Switch

The TP-LINK TL-SG1008 delivers reliable gigabit connectivity for small business networks and home offices. This 8-port unmanaged switch provides 10/100/1000Mbps speeds across all ports with a 16Gbps switching capacity and 11.9Mpps packet forwarding rate for maximum data throughput.

Plug-and-Play Gigabit Performance

All 8 RJ45 ports feature auto-negotiation and auto MDI/MDIX, eliminating the need for crossover cables or manual configuration. The switch automatically detects network device speeds and adjusts for optimal compatibility. With non-blocking wire-speed architecture and a 4K MAC address table, the TL-SG1008 handles demanding network traffic without bottlenecks.

Energy-Efficient Network Solution

TP-LINK Green Technology automatically adjusts power consumption based on link status and cable length, reducing the carbon footprint of your network. The switch consumes a maximum of 4.3W and complies with EU RoHS standards. This energy-efficient design lowers operating costs while maintaining full gigabit performance.

Flexible Installation Options

The standard 13-inch steel case fits desktop environments, while the included rackmount bracket enables 19-inch rack installation. Measuring 294 x 180 x 44mm, the compact design saves space without sacrificing durability. Dynamic LED indicators provide real-time status monitoring and basic fault diagnosis.

Advanced Traffic Management

802.1p/DSCP QoS prioritizes latency-sensitive traffic for smooth voice and video transmission. IEEE 802.3x flow control for full-duplex mode and back pressure flow control for half-duplex mode prevent data loss during high-traffic periods. Support for 16KB jumbo frames improves large file transfer efficiency.

Technical Specifications

• 8 x 10/100/1000Mbps RJ45 ports with auto-negotiation
• 16Gbps switching capacity, 11.9Mpps forwarding rate
• 4K MAC address table with auto-learning and auto-aging
• Store-and-forward switching method
• Operating temperature: 0°C to 40°C
• 100-240VAC, 50/60Hz power supply

Package includes the 8-port gigabit switch, power cord, installation guide, rackmount kit, and rubber feet. Backed by a limited lifetime warranty.

Description

Specification

• Rackmountable: Yes
• Managed: No
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• PoE Ports (RJ45): -
• Standards and Protocols: IEEE 802.3i
  IEEE 802.3u
  IEEE 802.3ab
  IEEE 802.3x
  IEEE 802.1p
• Switching Capacity: 16Gbps
• Power Supply: "100-240VAC, 50/60Hz
  Max Power Consumption: 4.3W"
• Dimensions: (WxDxH) 294 x 180 x 44 mm
• Transfer Method: Store and Forward
• Mac Address Table: 4K
• Packet Forwarding Rate: 11.9Mpps
• Jumbo Frame: 16KB
• Additional Features: MAC address auto-learning and auto-aging
  IEEE802.3x Flow control
  802.1p/DSCP QoS
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: 8-Port Gigabit Desktop Switch
  Power Cord
  Installation Guide
  Rackmount kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 2.2000 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
