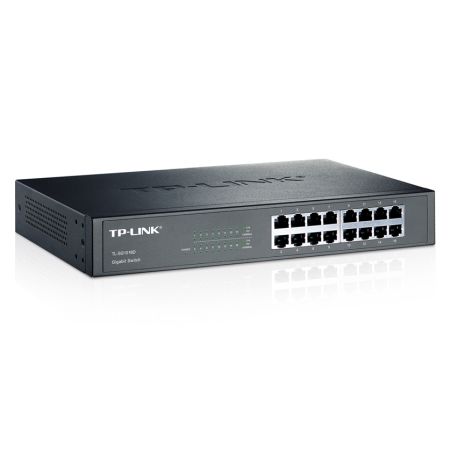

16-Port Gigabit Desktop/Rackmount Switch

The TP-LINK TL-SG1016D delivers high-performance gigabit connectivity for small to medium business networks. This 16-port unmanaged switch upgrades your existing network infrastructure to 1000Mbps speeds while maintaining compatibility with 10Mbps and 100Mbps devices.

Key Features

• 16 10/100/1000Mbps auto-negotiation RJ45 ports
• 32Gbps switching capacity for maximum throughput
• Energy-efficient technology saves up to 15% power consumption
• Plug & play design with zero configuration required
• Auto MDI/MDIX support eliminates need for crossover cables
• Desktop or rackmount installation options with included kits
• Steel case construction for durability

Energy-Efficient Network Solution

The TL-SG1016D features innovative green technology that automatically adjusts power consumption based on link status and cable length. This intelligent power management reduces your network's carbon footprint while lowering operational costs. The switch complies with EU RoHS standards and uses 80% recyclable packaging materials.

Non-Blocking Performance

With store-and-forward switching architecture, the TL-SG1016D processes packets at full wire-speed without bottlenecks. Support for 10KB jumbo frames significantly improves large file transfer performance. IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode prevent traffic congestion during peak loads.

Simple Installation

Auto-negotiation on each port automatically detects connected device speeds (10/100/1000 Mbps) and adjusts for optimal compatibility. Auto MDI/MDIX functionality works with straight-through or crossover cables. Simply connect your devices and the switch handles the rest—no software or configuration needed.

Specifications

• Rackmountable: Yes
• Managed: No
• Number of Ports: 16
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 16 x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
• Switching Capacity: 32Gbps
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions: 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
• Transfer Method: Store and Forward
• Additional Features: 802.3X Flow Control, Back Pressure, Auto-Uplink Every Port
• Package Contents: 16-Port Gigabit Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet
• Package Type: Retail
• Package Weight: 2.1500 kg
• Warranty: Limited Lifetime Warranty
• #Hide#POE: No
