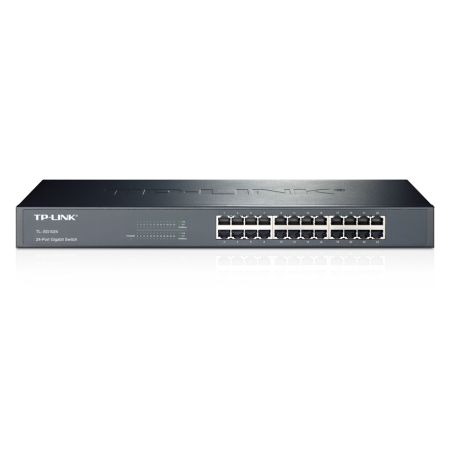

TP-LINK TL-SG1024 24-Port Gigabit Rackmount Switch

The TP-LINK TL-SG1024 provides a straightforward upgrade path to gigabit networking with 24 10/100/1000Mbps RJ45 ports in a standard 19-inch rackmount form factor. This unmanaged switch delivers wire-speed performance with 48Gbps switching capacity and an 8K MAC address table, making it suitable for home offices, workgroups, and small business networks requiring reliable high-speed connectivity.

Energy-Efficient Network Performance

The TL-SG1024 incorporates energy-saving technology that reduces power consumption by up to 40% through intelligent port management. The switch automatically detects link status on each port, powering down idle connections when devices are turned off. Additionally, it adjusts power output based on cable length, eliminating unnecessary power usage on shorter cable runs between 10 and 50 meters.

Technical Specifications

This gigabit switch features non-blocking architecture with 48Gbps switching capacity for maximum throughput across all 24 ports simultaneously. It supports 802.3x flow control for full-duplex mode and back pressure flow control for half-duplex operation, preventing packet loss during high-traffic periods. The 8K MAC address table provides sufficient capacity for growing networks.

Plug-and-Play Installation

All 24 ports support auto MDI/MDIX, eliminating the need for crossover cables or dedicated uplink ports. Auto-negotiation automatically detects connected device speeds (10/100/1000 Mbps) and adjusts accordingly. The switch requires no configuration—simply connect your devices and the network is operational. Dynamic LED indicators display real-time port status and provide basic diagnostic information.

Rackmount Design

The steel case construction measures 17.3 x 7.1 x 1.7 inches (440 x 180 x 44mm) and fits standard 19-inch racks using the included mounting hardware. Rubber feet are also provided for desktop placement in space-constrained environments. The switch operates reliably in temperatures from 0°C to 40°C with 10-90% non-condensing humidity.

Package Contents

Includes the TL-SG1024 24-port gigabit switch, power cord, installation guide, rackmount kits, and rubber feet. TP-LINK backs this switch with a limited lifetime warranty.

Specification

• Rackmountable: Yes
• Managed: No
• Number of Ports: 24
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 24 x 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• Switching Capacity: 48Gbps
• Power Supply: "100-240VAC, 50/60Hz"
• Dimensions: 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
• Transfer Method: Store and Forward
• Mac Address Table: 8K
• Additional Features: "802.3X Flow Control, Back Pressure
  Auto-Uplink Every Port"
• Environment: "Operating Temperature: 0C~40C (32F~104F);
  Storage Temperature: -40C~70C (-40F~158F);
  Operating Humidity: 10%~90% non-condensing;
  Storage Humidity: 5%~90% non-condensing
  "
• Package Contents: 24-Port Gigabit Rackmount Switch
  Power Cord
  Installation Guide
  Rackmount Kits
  Rubber Feet
• Package Type: Retail
• Package Weight: 2.6000 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
