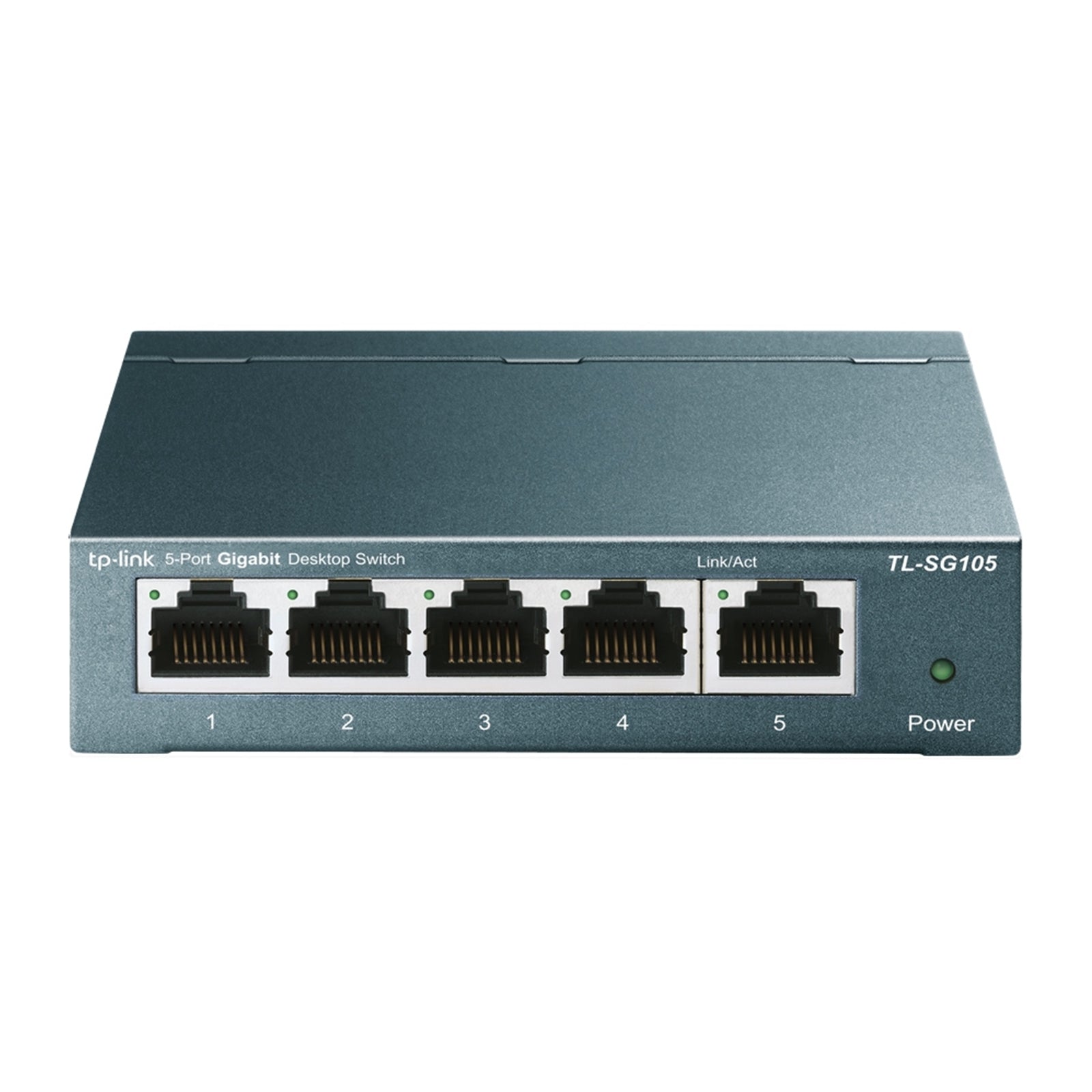

TP-Link TL-SG105 5-Port Gigabit Desktop Switch

The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.

Plug and Play Operation

A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.

Five Gigabit Ports for Faster Speeds

Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Key Features

• 5x 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Plug and play, no configuration needed
• Supports 802.1p/DSCP QoS and IGMP Snooping functions
• Durable metal casing, desktop/wall-mounting options, and a fanless design
• IEEE 802.3x flow control provides reliable data transfer
• Green Ethernet technology reduces power consumption

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface
5x 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 5 V DC / 0.6A)

LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption
2.3 W (220 V/ 50 Hz)

Max Heat Dissipation
7.83 BTU/h

PERFORMANCE

Packet Forwarding Rate
7.4 Mpps

MAC Address Table
2K

Packet Buffer Memory
1 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping

Transfer Method
Store and Forward

OTHERS

Certification
CE, FCC, RoHS

Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0 – 40
Storage Temperature: -40 – 70
Operating Humidity: 10 – 90% RH non-condensing
Storage Humidity: 5 – 90% RH non-condensing

• Ports: 5 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
