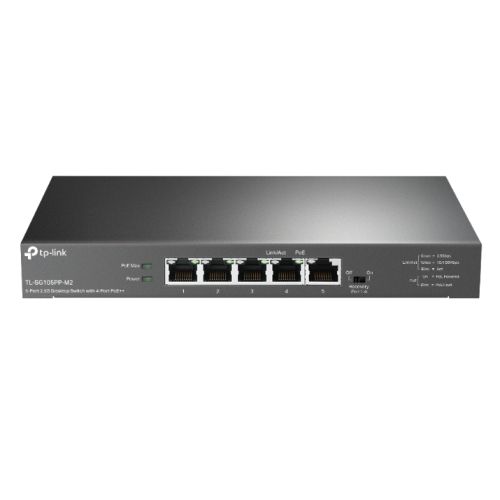

TP-LINK TL-SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++

The TP-LINK TL-SG105PP-M2 delivers multi-gigabit connectivity with advanced Power over Ethernet capabilities in a compact desktop form factor. This 5-port switch provides 2.5 Gbps throughput on all ports, making it suitable for bandwidth-intensive applications and modern network devices.

High-Speed 2.5G Connectivity

All five RJ45 ports support speeds from 10 Mbps up to 2.5 Gbps with auto-negotiation and AUTO MDI/MDIX. The 25 Gbps switching capacity and 18.6 Mpps packet forwarding rate ensure efficient data transmission across your network. Store-and-forward switching method with a 4K MAC address table provides reliable network performance.

PoE++ Power Delivery

Four ports (1-4) support IEEE 802.3af/at/bt type3 PoE++ standard, delivering up to 60W per port and 123W total power budget. This eliminates the need for separate power adapters for compatible devices such as IP cameras, wireless access points, and VoIP phones. The switch works seamlessly with IEEE 802.3af/at/bt type3 compliant powered devices.

PoE Auto Recovery Feature

The built-in PoE Auto Recovery function monitors connected powered devices and automatically reboots unresponsive or dropped devices. This ensures continuous operation of critical network equipment without manual intervention.

Quality of Service and Network Management

802.1p/DSCP QoS prioritizes latency-sensitive traffic for smooth video streaming and voice communications. IGMP Snooping optimizes multicast traffic delivery. IEEE 802.3x flow control prevents packet loss during high-traffic periods. MAC address auto-learning and auto-aging streamline network operations.

Plug and Play Installation

No configuration or software installation required. Connect your devices and the switch handles the rest. The unmanaged design makes it accessible for users without networking expertise while providing enterprise-grade features.

Compact and Reliable Design

Measuring 209 x 126 x 26 mm, the fanless metal housing fits easily on desktops or can be mounted using included rubber feet. The external power adapter (53.5 VDC / 2.43 A) keeps the unit compact. Operating temperature range of 0–40°C and humidity tolerance of 10–90% RH non-condensing ensure reliable performance in various environments. Backed by a limited lifetime warranty.

5-Port 2.5G Desktop Switch with 4-Port PoE++

• 5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• With four PoE++ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at/bt type3 compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 60 W for each PoE++ port
• Supports PoE Power up to 123 W for all PoE ports
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play, no configuration and installation required

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 5
• Max RJ45 Transfer Rate: 2.5 Gbps
• Interface(s): 5 x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  AUTO Negotiation
  AUTO MDI/MDIX
• PoE Ports (RJ45): Standard: 802.3 af/at/bt type3 compliant
  PoE++ Ports: Ports 1–4
  Power Supply: 123 W
• Switching Capacity: 25 Gbps
• Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
• Dimensions: (WxDxH) 209 x 126 x 26 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 4K
• Packet Forwarding Rate: 18.6 Mpps
• Additional Features: Compatible w/ IEEE 802.3af/at/bt type3 Compliant PDs
  Mac Address Auto-Learning And Auto-Aging
  IEEE 802.3x Flow Control
  802.1p/DSCP QoS
  IGMP Snooping
  PoE Auto Recovery (Ports 1-4)
• Environment: Operating Temperature: 0–40°C (32–104°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: TL-SG105PP-M2
  Power Adapter
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 1.7000 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
