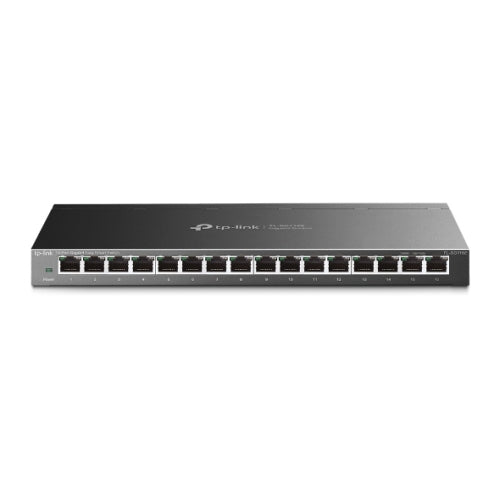

TP-LINK TL-SG116E 16-Port Gigabit Easy Smart Switch

The TP-LINK TL-SG116E provides 16 gigabit ports with easy smart management capabilities for small business and home office networks. This switch bridges the gap between basic unmanaged switches and complex managed solutions, offering essential configuration options through web-based management and downloadable utilities.

Network Performance Specifications

All 16 ports deliver 10/100/1000Mbps speeds with AUTO Negotiation and AUTO MDI/MDIX functionality. The switch provides 32Gbps switching capacity and 23.81Mpps packet forwarding rate using store-and-forward transfer method. With an 8K MAC address table and 9KB jumbo frame support, the TL-SG116E handles data transmission efficiently across connected devices.

Quality of Service and Traffic Management

The switch implements Port-based, 802.1p, and DSCP priority classification with 4 priority queues for QoS management. Rate limiting and storm control features protect network bandwidth and prevent broadcast floods. IGMP Snooping V1/V2/V3 optimizes multicast traffic delivery, making it particularly effective for IPTV and video streaming applications.

VLAN Configuration and Layer 2 Features

Configure up to 32 VLANs simultaneously from 4K VLAN IDs with MTU/Port/Tag VLAN options for network segmentation. Additional features include static link aggregation for increased bandwidth, port mirroring for traffic monitoring, cable diagnostics for troubleshooting, and loop prevention to maintain network stability.

Steel Construction and Physical Design

The metal casing measures 286 x 111.7 x 25.4 mm, providing desktop or workbench placement options. Fanless operation ensures silent performance in office environments. The steel construction protects internal components while maintaining a professional appearance suitable for business settings.

Energy-Efficient Technology

Energy-saving features automatically adjust power consumption based on link status and cable length, reducing operational costs. The external 12VDC/1A power adapter complies with IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, and 802.1p standards. Operating temperature range spans 0°C to 40°C with 10%-90% non-condensing humidity tolerance.

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 16
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• PoE Ports (RJ45): -
• Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p"
• Switching Capacity: 32Gbps
• Power Supply: External Power Adapter
  (Output: 12VDC/1A)
• Dimensions: 286 x 111.7 x 25.4 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 8K
• Packet Forwarding Rate: 23.81Mpps
• Jumbo Frame: 9KB
• Additional Features: See Overview
• Quality of Service: Support Port-based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control
• Layer Features: IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: TL-SG116E
  Power Cord
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 1.3400 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
