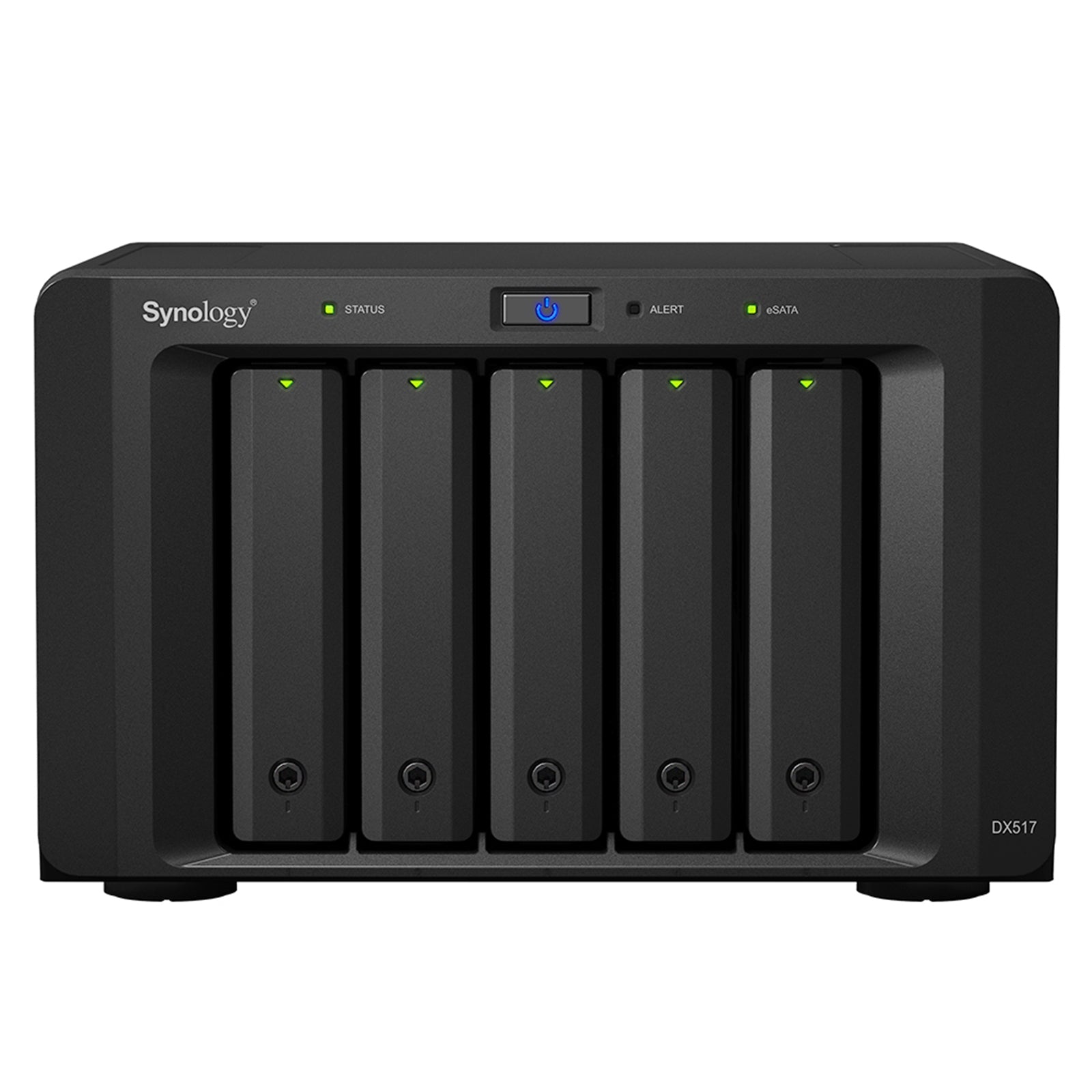

Synology DX517 5-Bay NAS Expansion Unit

The Synology DX517 expansion unit provides five additional drive bays for Synology DiskStation systems, supporting up to 80TB of raw storage capacity. Compatible with both 3.5" and 2.5" SATA drives, including HDDs and SSDs, this expansion unit offers flexible storage scaling for growing data needs.

Seamless Storage Expansion

Managed directly through DiskStation Manager (DSM) on the host NAS, the DX517 integrates immediately upon connection. Online volume expansion allows storage growth without interrupting existing services or requiring system downtime. The expansion unit synchronizes with the host DiskStation for automatic power management.

Hot-Swappable Drive Configuration

The DX517 features screwless, hot-swappable drive trays that enable drive installation and replacement without powering down the system. This design reduces maintenance time and simplifies drive management during capacity upgrades or drive failures.

Local Backup Solution

When configured as a separate volume, the DX517 serves as a dedicated local backup destination for the host DiskStation. This configuration provides protection against system failure by maintaining backup data on independent drives within the expansion unit.

Wide Model Compatibility

The DX517 supports numerous Synology DiskStation models from the 15 through 23 series, including DS923+, DS1522+, DS1821+, DS1621xs+, DS920+, DS720+, DS1819+, DS918+, and many others. Compatibility includes both multi-unit volume creation and single-unit configurations depending on the host model.

Technical Specifications

The unit measures 157mm x 248mm x 233mm and weighs 3.91kg. It operates on a 200W power supply with 100-240V AC input, consuming 29.9W during access and 2.4W during HDD hibernation. Two 80mm system fans maintain operating temperatures between 5°C and 40°C with noise levels at 21.5 dB(A). The expansion unit connects via eSATA and includes FCC, CE, and BSMI certifications with RoHS compliance.

5-bay 3.5"/2.5" SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5" and 3.5" SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.

Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.

Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.

Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.


Specifications

Applied Models
Supports creating volumes across different units
23 series:DS923+
22 series:DS1522+
21 series:DS1821+, DS1621xs+, DS1621+, DVA3221
20 series:DS1520+, DS920+, DS720+
19 series:DS1819+, DS1019+, DVA3219
18 series:DS1618+, DS918+, DS718+, NVR1218
17 series:DS1817+, DS1817, DS1517+, DS1517
16 series:DS916+, DS716+, DS716+II
15 series:DS1815+, DS1515+, DS1515

Supports creating volumes on a single unit only
18 series:DS218+
16 series:DS216+, DS216+II, NVR216
15 series:DS415+

Drive Bays
5

Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

Maximum Internal Raw Capacity
80 TB (16 TB drive x 5) (Capacity may vary by RAID types)

RAID Management through Synology
DSM

eSATA Port
1

Size (Height x Width x Depth)
157 mm x 248 mm x 233 mm

Weight
3.91 kg

Power Recovery
Synchronized with the Synology DiskStation

Power Supply Unit / Adapter
200 W

AC Input Power Voltage
100V to 240V AC

Power Frequency
50/60 Hz, Single Phase

Power Consumption
29.9 W (Access)
2.4 W (HDD Hibernation)

British Thermal Unit
102.02 BTU/hr (Access)
8.19 BTU/hr (HDD Hibernation)

Operating Temperature
5°C to 40°C (40°F to 104°F)

Storage Temperature
-10°C to 70°C (15°F to 155°F)

Relative Humidity
5% to 95% RH

System Fan
80 mm x 80 mm x 2 pcs

Noise Level
21.5 dB(A)

Certification
FCC
CE
BSMI

Warranty
3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus

Environmental Compliance
RoHS Compliant

Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Expansion Cable: eSATA X 1
