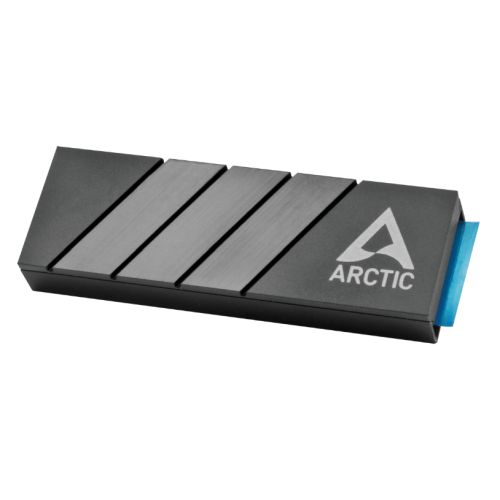

M.2 SSD Heatsink for Enhanced Thermal Performance

The ARCTIC M2 Pro is an aluminum SSD cooler designed specifically for M.2 2280 modules. This heatsink provides effective thermal management for both single-sided and double-sided M.2 SSDs, preventing thermal throttling during intensive read and write operations.

Efficient Heat Dissipation Design

The additional mass of the M2 Pro effectively draws heat away from SSD chips and dissipates it to the surrounding environment. This results in lower operating temperatures and faster cooling cycles, allowing your M.2 SSD to maintain optimal performance levels even during demanding workloads.

PlayStation 5 Compatible

Sony requires M.2 SSDs installed in the PlayStation 5 and PS5 Slim to have proper cooling. The ARCTIC M2 Pro meets Sony's specified requirements for PS5 M.2 expansion, making it an ideal solution for gamers looking to increase their console storage capacity while maintaining system stability.

ARCTIC TP-3 Thermal Pads Included

Two precisely cut ARCTIC TP-3 thermal pads come included with the M2 Pro. These soft thermal pads adapt to the varying heights of SSD controllers, RAM modules, and NAND chips, ensuring consistent thermal contact across all components. The TP-3 pads offer excellent thermal conductivity while remaining easy to handle and safe to use.

Tool-Free Installation

Installation requires no screws or rubber bands. The M2 Pro uses a simple click mechanism to secure the SSD between the heatsink components. This design accommodates both single-sided and double-sided M.2 2280 SSDs, with the included thermal pads compensating for any height differences between component configurations.

Technical Specifications

The heatsink measures 7.8 x 2.5 x 1.4 cm and weighs 40.5 grams. The black aluminum construction provides durability while maintaining a neutral aesthetic that fits various system builds. ARCTIC backs the M2 Pro with a 6-year warranty.

Description

Specification

• Type: SSD Cooler
• Compatibility: M.2 2280 modules - single and double sided
  - height differences are compensated for by the included thermal pads
• Installation: SSD clicks in place - no screws needed
• #Hide#LED Lighting: No
• Colour: Black
• LED Lighting: -
• Weight: 0.0405 kg
• Dimensions: 7.8 x 2.5 x 1.4 cm
• #Hide#Type 2: SSD Coolers
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0450 kg
• Warranty: 6 Years
