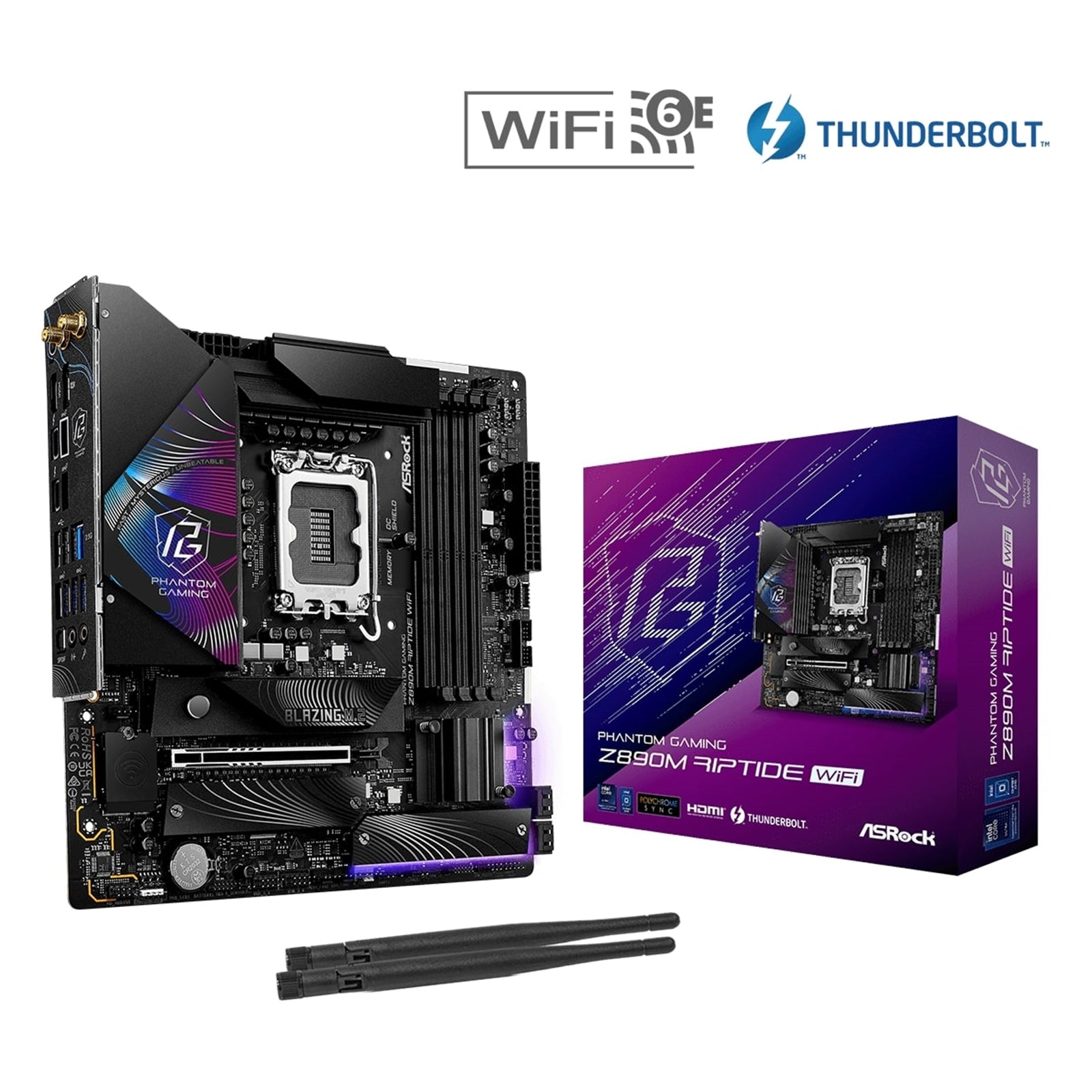

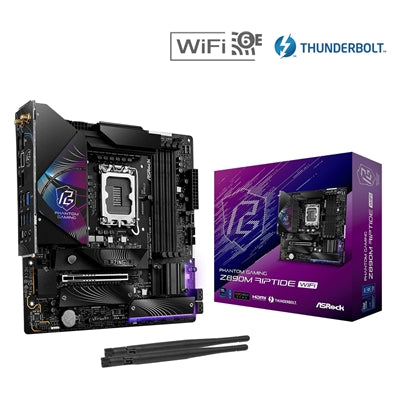

ASRock Z890M RIPTIDE WIFI PHANTOM GAMING Motherboard

The ASRock Z890M RIPTIDE WIFI delivers high-performance computing in a compact Micro-ATX form factor. Built for Intel Core Ultra Processors (Series 2) with LGA1851 socket compatibility, this motherboard combines advanced connectivity with robust power delivery for demanding workloads and gaming.

Advanced Power Delivery and Memory Support

Engineered with a 16+1+1+1+1 power phase design featuring 80A Dr.MOS for VCore+GT+SA, this motherboard ensures stable power delivery to your processor. The enlarged heatsink armor provides efficient thermal management during intensive tasks. Four DDR5 DIMM slots support dual-channel memory up to 9466MHz+ (OC) with a maximum capacity of 256GB, including support for Clocked Unbuffered DIMM (CUDIMM) technology.

Next-Generation Storage and Expansion

Storage capabilities include one Blazing M.2 socket with PCIe Gen5 x4 support (128 Gb/s), two Hyper M.2 sockets with PCIe Gen4 x4 (64 Gb/s), and four SATA3 6.0 Gb/s connectors. The single PCIe 5.0 x16 slot accommodates the latest graphics cards, with support for PCIe riser cards to extend configuration options. Intel Volume Management Device (VMD) support and multiple RAID configurations provide flexible storage solutions.

Premium Connectivity Features

Two Thunderbolt 4 Type-C ports deliver 40 Gb/s transfer speeds with USB4 protocol support and USB PD 3.0 charging up to 15W. Additional USB connectivity includes USB 3.2 Gen2x2 Type-C (front), two USB 3.2 Gen2 Type-A ports, six USB 3.2 Gen1 ports, and six USB 2.0 ports. Killer E3100G 2.5 Gigabit LAN and 802.11axe Wi-Fi 6E module with Bluetooth 5.3 ensure reliable wired and wireless networking with Killer DoubleShot Pro technology.

Graphics and Audio

Display outputs include one HDMI 2.1 port supporting 4K 120Hz, one DisplayPort 1.4 supporting up to 8K 60Hz, and two Thunderbolt 4 ports capable of driving dual 4K or single 8K displays. Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio provides immersive sound quality through gold audio jacks and optical SPDIF output.

Enhanced Features and Durability

Server-grade low-loss PCB construction with 2oz copper ensures signal integrity. The flexible integrated I/O shield simplifies installation, while 20K long-lasting black capacitors (high-quality conductive polymer) guarantee longevity. BIOS Flashback button enables easy firmware updates, and Memory OC Shield enhances overclocking stability. ASRock Polychrome SYNC supports RGB and addressable LED customization through one RGB LED header and two addressable LED headers.

Comprehensive Fan Control

Seven fan connectors provide extensive cooling options: two CPU fan connectors (4-pin), three chassis fan connectors (4-pin), one AIO pump fan connector (4-pin), and one water pump fan connector (4-pin). Smart fan speed control optimizes cooling performance and acoustics. CPU_FAN2, CHA_FAN1-3, AIO_PUMP, and W_PUMP support up to 3A (36W) per connector with automatic 3-pin/4-pin detection.

Package Contents

Includes two SATA data cables, two ASRock WiFi 2.4/5/6 GHz antennas, one ARGB splitter cable, and one thermistor cable. Compatible with Microsoft Windows 11 64-bit operating system.
