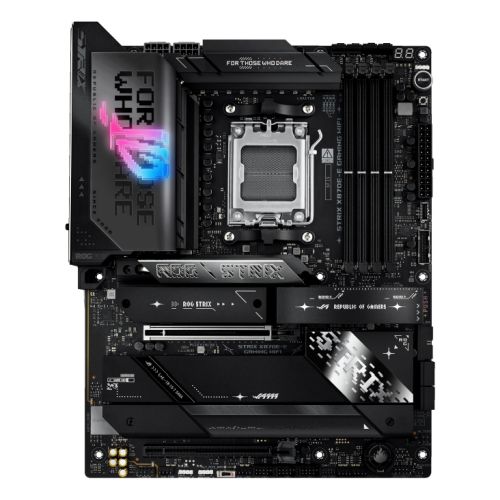

ASUS ROG Strix X870E-E Gaming WiFi Motherboard

The ROG Strix X870E-E Gaming WiFi motherboard delivers maximum performance for AMD Ryzen 9000 Series processors with advanced AI technologies and premium connectivity. Built on the AMD X870E chipset with AM5 socket support, this ATX motherboard features PCIe 5.0 support, WiFi 7, dual USB4 ports, and comprehensive cooling solutions for demanding gaming and professional workloads.

Advanced Power Delivery and Overclocking

Equipped with 18+2+2 power stages, the X870E-E provides stable power delivery for high-performance CPUs. Dynamic OC Switcher automatically adjusts between manual overclocking for multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. Core Flex technology enables granular control over clock speeds, power limits, and thermals, while the built-in asynchronous clock generator isolates CPU base clock from memory and PCIe speeds for maximum frequency flexibility.

DDR5 Memory Performance

Four DDR5 DIMM slots support speeds up to 8200+MT/s with AMD EXPO profiles on Ryzen 9000 Series CPUs, with maximum capacity of 256GB. NitroPath DRAM Technology delivers frequencies up to 400 MT/s higher with 57% enhanced slot retention force. ASUS Enhanced Memory Profile (AEMP) provides exclusive firmware optimization for PMIC-restricted memory modules.

PCIe 5.0 and Storage Connectivity

The motherboard features one PCIe 5.0 x16 slot with SafeSlot retention bracket and Q-Release Slim mechanism for tool-free graphics card installation. Five M.2 slots include three PCIe 5.0 x4 slots supporting 16 GB/s transfer speeds and two PCIe 4.0 x4 slots. Each M.2 slot includes dedicated heatsinks with M.2 Combo-Sink featuring direct-contact U-shaped heat pipe and integrated backplate for optimal thermal performance. Four SATA III ports provide additional storage options.

WiFi 7 and USB4 Connectivity

WiFi 7 (802.11be) with 2x2 antenna configuration supports 2.4/5/6GHz frequency bands and 320MHz bandwidth for transfer rates up to 6.5Gbps. Dual USB4 Type-C ports deliver 40Gbps bidirectional bandwidth with support for 8K single display or dual 4K displays. USB 20Gbps Type-C rear port includes Power Delivery 3.0 up to 30W for fast device charging. Realtek 5Gb Ethernet provides low-latency wired connectivity.

Comprehensive Cooling System

Two thick VRM heatsinks connected by heatpipe share cooling capacity across voltage regulators. M.2 heatsinks with Q-Release switches cover all slots for tool-free installation. The motherboard supports dual CPU fan headers, dedicated AIO pump header, and five chassis fan headers with auto-detection of PWM or DC fans.

AI Intelligence Features

AI Overclocking automatically tunes performance parameters faster than manual configuration. AI Cooling II balances thermals and acoustics with single-click optimization. AI Networking II continuously optimizes network performance for trustworthy WiFi 7 connectivity.

ROG SupremeFX Audio

7.1 surround sound with ALC4080 codec delivers high-resolution playback up to 32-bit/384kHz. Savitech integrated amplifier drives front-panel output for high-fidelity audio. Dolby Atmos support provides immersive three-dimensional audio with height channels.

EZ PC DIY Features

PCIe Slot Q-Release Slim enables graphics card removal by tilting toward the latch. M.2 Q-Release switches, Q-Slide latches, and Q-Latch designs eliminate screws for SSD installation. Q-Antenna provides snap-in WiFi antenna mounting. Q-LED troubleshooting lights indicate CPU, RAM, graphics card, and storage status during startup. BIOS FlashBack button enables BIOS updates without CPU or memory installed.

Software Suite

Armoury Crate provides centralized control over RGB lighting with Aura Sync compatibility and Fan Xpert 4 for comprehensive cooling management. BIOS Q-Dashboard simplifies motherboard configuration with visual hardware representation. Includes 60-day AIDA64 Extreme subscription for system monitoring and benchmarking.
