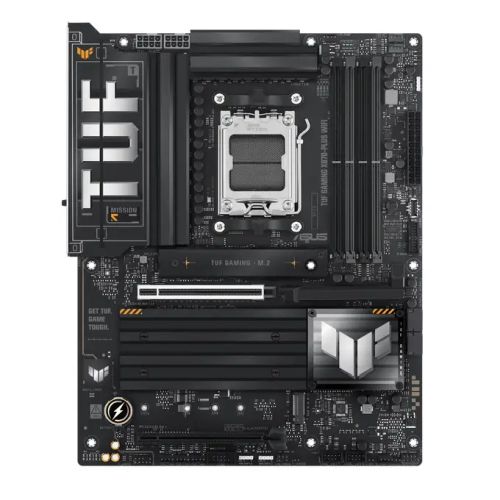

ASUS TUF GAMING X870-PLUS WIFI AM5 Motherboard

The ASUS TUF GAMING X870-PLUS WIFI combines the latest AMD X870 chipset with military-grade components for reliable gaming performance. Built for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket, this ATX motherboard delivers robust power delivery and advanced connectivity for demanding applications.

Premium Power Delivery System

Features a 16+2+1 power stage design with 80A-rated components, ensuring stable power delivery for high-core-count AMD processors. ProCool power connectors provide improved contact with PSU cables, reducing impedance and preventing hotspots. TUF components include specialized chokes and 5K black metallic capacitors with 52% wider temperature tolerance for enhanced longevity.

DDR5 Memory Support

Four DIMM slots support up to 256GB of DDR5 memory with speeds reaching 8000+MT/s when overclocked. Full AMD EXPO support enables easy performance tuning, while ASUS Enhanced Memory Profile (AEMP) automatically optimizes PMIC-restricted modules. The multi-layered PCB design efficiently dissipates heat for improved stability during intensive workloads.

Next-Generation Connectivity

Dual USB4 ports deliver 40Gbps bi-directional bandwidth and support dual 4K external displays. PCIe 5.0 x16 slot accommodates next-generation graphics cards with double the bandwidth of PCIe 4.0. Front panel USB 20Gbps Type-C connector includes 30W Power Delivery for fast charging. Wi-Fi 7 technology with 2x2 antenna configuration supports 160MHz bandwidth for transfer rates up to 2.9Gbps across 2.4/5/6GHz bands. Realtek 2.5Gb Ethernet provides wired connectivity with 2.5X faster speeds than standard gigabit connections.

Comprehensive Storage Options

Four M.2 slots support PCIe 5.0 x4 SSDs (with Ryzen 9000/7000 CPUs), complemented by two SATA III ports. M.2 slots include enlarged heatsinks for thermal management. Q-Latch mechanism enables tool-free M.2 installation and removal. AMD RAIDXpert2 technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1 configurations.

Advanced Cooling Architecture

Enlarged VRM heatsinks handle heat from the power delivery system. Multiple fan headers include dedicated AIO pump and Water Pump+ connectors. AI Cooling II dynamically adjusts fan speeds based on CPU temperatures for optimized thermals and reduced noise. Multi-temperature source monitoring provides precise thermal tracking across system components.

AI-Enhanced Features

AI Overclocking automatically determines optimal CPU settings and cooling configurations. AI Networking II optimizes bandwidth allocation for network performance. Dynamic OC Switcher alternates between manual overclocking for multi-threaded workloads and Precision Boost Overdrive for single-threaded tasks. Core Flex provides granular control over power and thermal limits through user-defined breakpoints.

Premium Audio Solution

Realtek ALC1220P codec delivers 7.1-channel surround sound with 120dB signal-to-noise ratio for line out and 113dB for line in. Impedance-sensing circuitry automatically adjusts gain for optimal headphone volume. DTS Audio Processing reduces distortion and enhances bass response for improved gaming and multimedia experiences.

User-Friendly Installation

PCIe Slot Q-Release button unlocks the graphics card latch with one tap. Q-Antenna enables snap-in WiFi antenna installation. Q-LED troubleshooting lights indicate CPU, RAM, graphics card, and storage status during startup. BIOS FlashBack updates firmware without CPU or memory installed using a FAT32 USB drive.

Aura Sync RGB Lighting

Three addressable Gen 2 RGB headers automatically optimize lighting effects based on connected LED counts. Armoury Crate software provides unified control over RGB synchronization across compatible ASUS motherboards, graphics cards, monitors, and peripherals.
