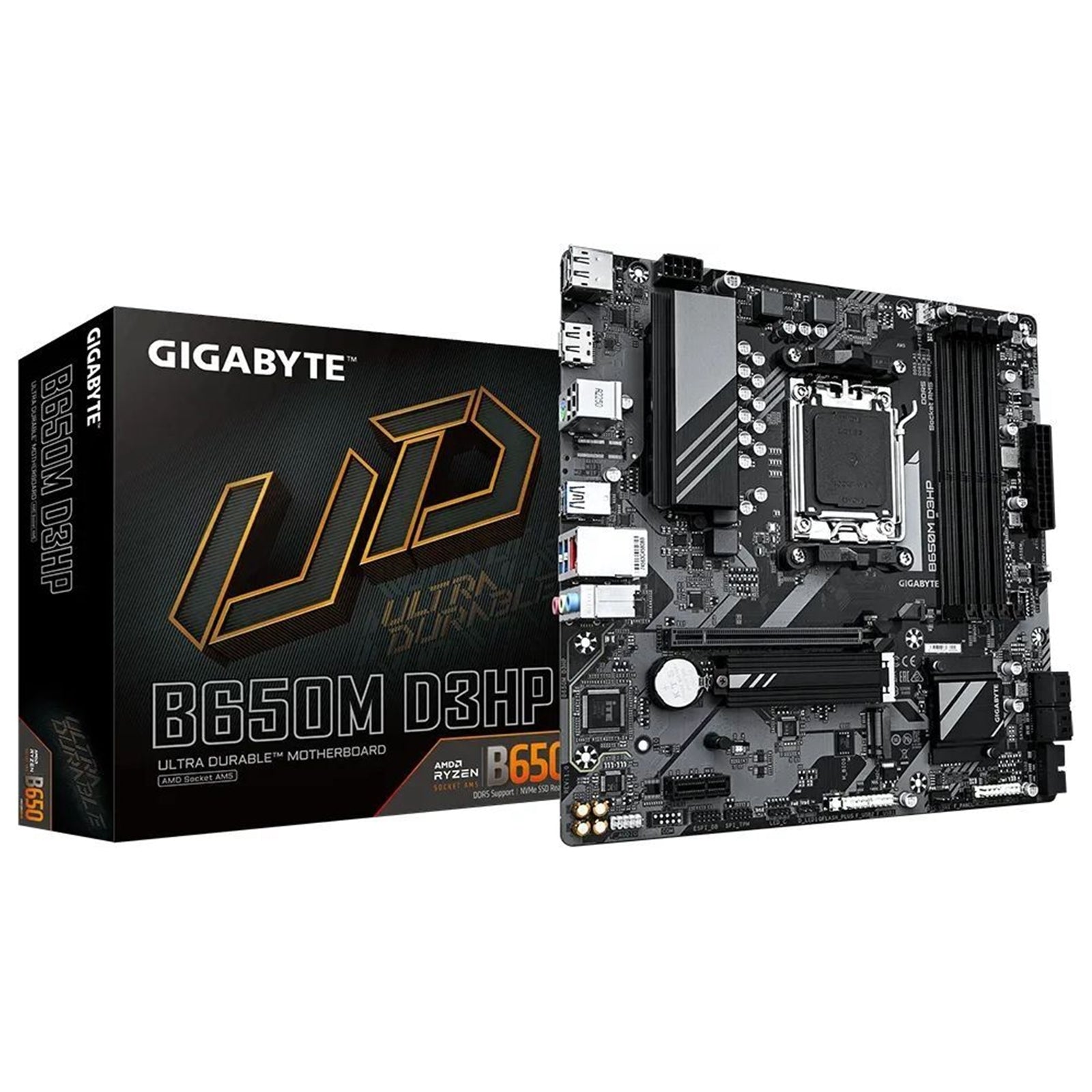

Gigabyte B650M D3HP Ultra Durable AM5 Motherboard

The Gigabyte B650M D3HP delivers reliable performance for AMD Ryzen 7000 Series processors in a compact Micro-ATX form factor. Built with Ultra Durable components and a 5+2+2 phases digital VRM solution with low RDS(on) MOSFETs, this motherboard provides stable power delivery for modern computing needs.

DDR5 Memory Support

Four DDR5 DIMM slots support up to 192GB of system memory with speeds reaching 7600 MT/s (OC). Gigabyte's exclusive DDR5 circuit design ensures compatibility with AMD EXPO and Intel XMP memory modules for enhanced performance and easy overclocking.

High-Speed Connectivity

The Realtek 2.5GbE LAN chip delivers network speeds up to 2.5 Gbps for reduced latency and faster data transfers. Multiple USB options include two USB Type-C ports with USB 3.2 Gen 1 support, three USB 3.2 Gen 1 ports, and additional USB 2.0 connections for comprehensive peripheral connectivity.

Storage and Expansion

Two M.2 sockets support PCIe 4.0 x4 NVMe SSDs for rapid storage performance, while four SATA 6Gb/s connectors provide additional drive options. The PCIe 4.0 x16 slot with EZ-Latch quick release design accommodates modern graphics cards with improved signal integrity through low impedance PCB design.

Display Outputs

Integrated graphics support includes two DisplayPort 1.4 outputs capable of 3840x2160@144Hz and one HDMI 2.1 port supporting 4096x2160@60Hz with HDCP 2.3, enabling triple-display configurations when paired with compatible Ryzen processors.

Smart Fan 6 Cooling

Advanced thermal management features multiple temperature sensors and hybrid fan headers supporting both PWM and DC fans up to 24W per header. Seven-point fan curves with slope/stair dual mode provide precise control, while Fan Stop functionality allows complete fan shutdown below specified temperatures.

Q-Flash Plus BIOS Update

Update the BIOS without installing CPU, memory, or graphics card. Simply save the renamed BIOS file to a USB drive, connect power cables, and press the Q-Flash Plus button for automatic updates.

Audio and Additional Features

Realtek Audio CODEC with high-end audio capacitors and audio noise guard delivers clean 7.1-channel sound. The iTE I/O controller provides comprehensive hardware monitoring including voltage detection, temperature monitoring, and fan speed control.

Specifications Summary

• Socket: AMD AM5
• Chipset: AMD B650
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Memory: 4x DDR5 slots, up to 192GB, 7600 MT/s (OC)
• Storage: 2x M.2 PCIe 4.0, 4x SATA 6Gb/s
• Network: 2.5GbE LAN
• OS Support: Windows 11/10 64-bit
