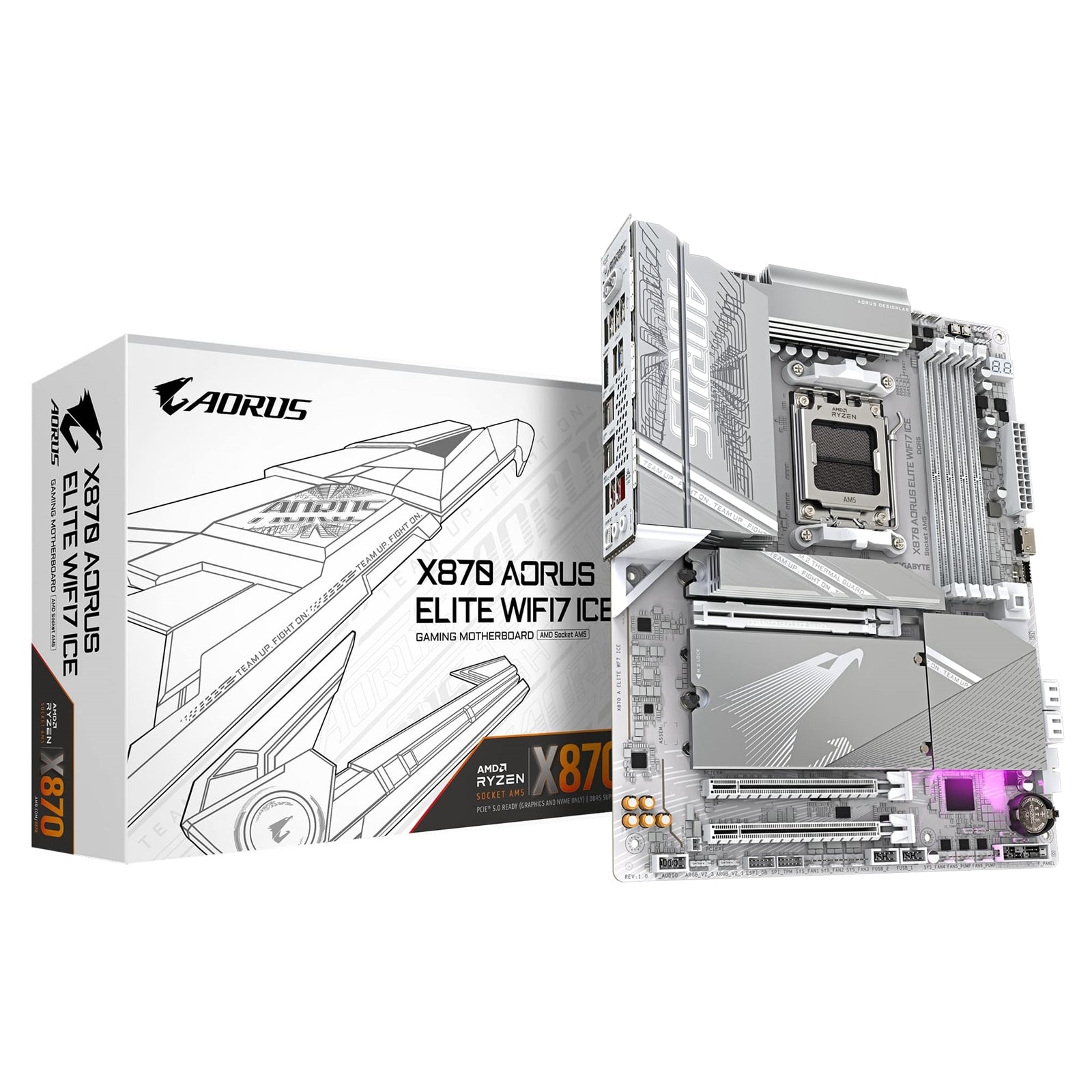

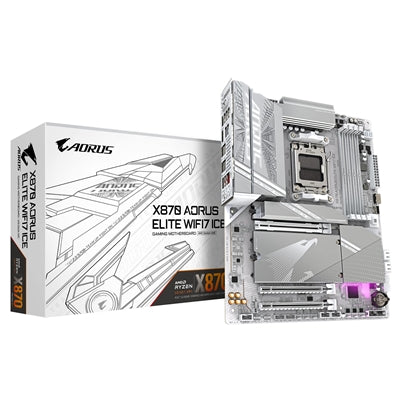

Gigabyte X870 AORUS ELITE WIFI7 ICE Motherboard

The Gigabyte X870 AORUS ELITE WIFI7 ICE delivers premium performance for AMD Ryzen 9000, 8000, and 7000 series processors in a distinctive white thermal design. This ATX motherboard combines cutting-edge connectivity with robust power delivery for gaming and content creation workstations.

Advanced Power Delivery and Memory Support

Built around a digital twin 16+2+2 phase VRM solution with VRM Thermal Armor Advanced, this motherboard provides stable power for demanding overclocking scenarios. Four DDR5 DIMM slots support up to 256GB of memory with speeds reaching 8000 MT/s (OC), featuring AMD EXPO and XMP profile support for simplified memory optimization. The AORUS AI SNATCH technology enables one-click DDR5 memory acceleration, eliminating complex manual tuning.

Ultra-Fast Storage Configuration

Four M.2 sockets deliver exceptional storage flexibility, with three supporting PCIe 5.0 x4 connectivity for next-generation NVMe SSDs. The M.2 Thermal Guard L cooling solution maintains optimal temperatures during sustained workloads. Additional storage options include four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support for both NVMe and SATA devices.

Premium Connectivity Suite

Dual USB4 Type-C ports with DisplayPort Alt Mode provide 40Gbps bandwidth and support for 4K displays at 240Hz. The integrated ASMedia USB4 controller ensures maximum compatibility with high-speed peripherals. WiFi 7 technology with directional ultra-high gain antenna delivers multi-gigabit wireless performance across 2.4GHz, 5GHz, and 6GHz bands, while the Realtek 2.5GbE LAN chip handles wired connectivity.

Builder-Friendly Features

The EZ-Latch Plus system eliminates screws for PCIe slots and M.2 installations, while the WIFI EZ-Plug consolidates antenna connections into a single adapter. A fitted I/O shield streamlines installation, and the Sensor Panel Link onboard video port simplifies in-chassis display panel setup. The PCIe UD Slot X reinforces the primary x16 slot with 10X strength through a metal backplate.

Enhanced PCB Engineering

The 6-layer server-grade PCB features 2X copper enhancement for superior thermal management and power delivery. With a 56% lower dissipation factor compared to standard designs, signal integrity remains intact even during high-frequency operations. This foundation supports the motherboard's comprehensive overclocking capabilities.

Comprehensive Thermal Management

Full-metal heatsink coverage across VRM components and M.2 slots maintains system stability under load. Smart Fan 6 technology provides granular control over seven fan/pump headers with customizable curves and hybrid fan modes. Temperature sensors enable real-time monitoring and automatic thermal response.

Audio and Expansion

The Realtek ALC1220 codec with audiophile-grade capacitors delivers high-definition 7.1-channel audio with optical S/PDIF output. Three PCIe slots accommodate multi-GPU configurations and expansion cards, with the primary slot supporting PCIe 5.0 x16 for maximum graphics card bandwidth on compatible processors.

X870 AORUS ELITE WIFI7 ICE

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage: 4 x M.2 slots, including 3 x PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

AORUS AI SNATCH Bullet Point
Unleash Ultimate Performance with One-Click Activation.

Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration
Enhance DDR5 speeds with a single click.
Real time Analyze
OC accuracy UP
EZ to Pro

Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.

Steady Power
Better Play AORUS Series, steady power keeps your gaming smooth.

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Smart Fan 6
Efficient cooling, silent operation, and customizable features

Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ-Latch Designs
User-friendly designs simplifying the assembly process.

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.

6L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.

2X Copper Enhancement
Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.

56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.

All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.

Specifications

CPU
AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors

Chipset
AMD X870

Memory
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Integrated Graphics Processor with AMD Radeon Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Audio
Realtek ALC1220 CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU+ASMedia USB4 controller:
2 x USB4® USB Type-C ports on the back panel
CPU+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
CPU+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through
the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
2 x USB4 USB Type-C ports (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm
