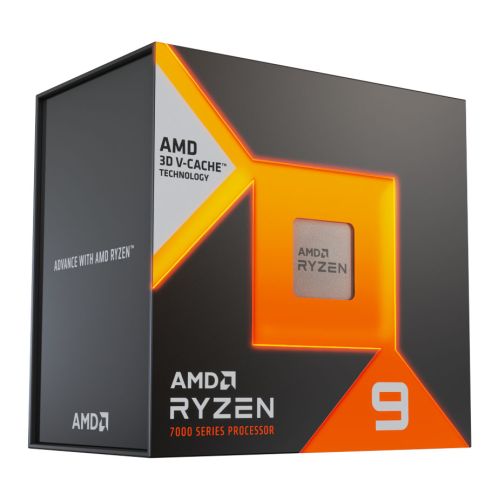

AMD Ryzen 9 7900X3D Gaming Processor

The AMD Ryzen 9 7900X3D delivers exceptional gaming and content creation performance with 12 cores, 24 threads, and AMD's groundbreaking 3D V-Cache technology. Built on the Zen 4 architecture with 5nm process technology, this AM5 socket processor reaches boost speeds up to 5.6GHz from a 4.4GHz base clock.

3D V-Cache Technology for Gaming Dominance

The 7900X3D features 140MB of total cache (768KB L1, 12MB L2, 128MB L3) powered by AMD's 3D V-Cache technology. This innovative cache stacking delivers lower latency and higher frame rates in gaming workloads, giving competitive gamers the edge they need.

Performance Specifications

This processor operates at 120W TDP and supports DDR5 memory up to 5200MHz with dual-channel configuration. The integrated AMD Radeon Graphics includes 2 compute units running at 2200MHz, providing display output without a discrete GPU. PCIe 5.0 support across 28 total lanes ensures compatibility with the latest storage and graphics cards.

Overclocking and Tuning Features

Precision Boost 2 automatically increases clock speeds when thermal and power headroom allows. Precision Boost Overdrive leverages motherboard power delivery for extended boost durations. AMD EXPO technology enables one-touch memory overclocking for validated DDR5 kits. The unlocked multiplier allows manual tuning through AMD Ryzen Master utility.

Platform and Compatibility

Compatible with AM5 motherboards using X670E, X670, B650E, and B650 chipsets. Supports up to 128GB DDR5 memory across two UDIMM slots. Additional PCIe Gen4 lanes from the motherboard range from 8 to 12 depending on chipset selection. Includes USB Type-C DisplayPort Alternate Mode support for modern displays.

Package Contents

This retail package includes the processor only - no heatsink or cooling solution included. Requires separate AM5-compatible CPU cooler for operation. Backed by 3-year manufacturer warranty.

Description

Specification

• Socket: AM5
• Type: AMD Ryzen 9
• Clock Speed: 4.4GHz
• Turbo Speed: 5.6GHz
• #Hide#Generation: Ryzen 7th gen
• Cores: 12 Core
• Core Size: CPU Cores: TSMC 5nm FinFET
  I/O Die: TSMC 6nm FinFET
• Threads: 24
• Cache: L1 Cache: 768KB
  L2 Cache: 12MB
  L3 Cache: 128MB
• TDP: Default TDP: 120W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Graphics Core Count: 2
  Graphics Frequency: 2200 MHz
  GPU Base: 400 MHz
  USB Type-C DisplayPort Alternate Mode support
• Memory: Memory Channels: 2
  Max. Memory: 128GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  1x1R - 5200 MT/s
  1x2R - 5200 MT/s
  2x1R - 3600 MT/s
  2x2R- 3600 MT/s
• Max PCI Express Lanes: 28/24 (Total/Usable)

  Additional Usable PCIe Lanes from Motherboard:
  AMD X670E: 12x Gen4
  AMD X670: 12x Gen4
  AMD B650E: 8x Gen4
  AMD B650: 8x Gen4
• Cooler: No
• Special Features: AMD 3D V-Cache technology
  AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.3200 kg
• Warranty: 3 Years
