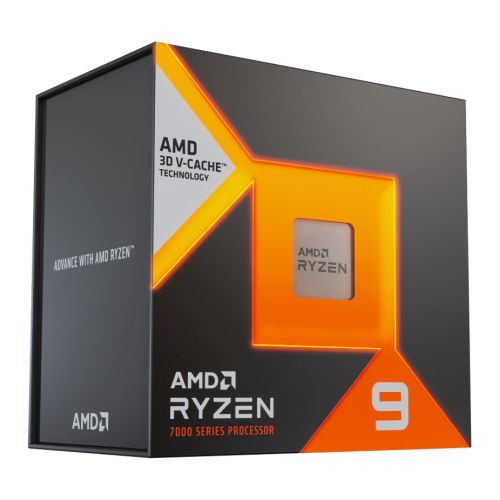

AMD Ryzen 9 7950X3D Gaming Processor

The AMD Ryzen 9 7950X3D represents the pinnacle of desktop processor technology, combining 16 cores and 32 threads with revolutionary 3D V-Cache technology. Built on TSMC's 5nm FinFET process, this AM5 socket processor delivers exceptional performance for gaming and content creation workloads.

Core Performance Specifications

Operating at a base clock of 4.2GHz with boost speeds reaching 5.7GHz, the 7950X3D provides substantial processing power while maintaining a 120W TDP. The processor features 144MB of total cache (1MB L1, 16MB L2, and 128MB L3), with the L3 cache enhanced by AMD's 3D V-Cache technology to reduce latency and improve gaming performance significantly.

Gaming Performance with 3D V-Cache

AMD's 3D V-Cache technology stacks additional cache directly onto the processor die, delivering lower latency and higher frame rates in gaming applications. This architecture provides measurable advantages in cache-sensitive games, making the 7950X3D the flagship choice for high-performance gaming systems.

Platform and Memory Support

The AM5 platform brings DDR5 memory support with speeds up to 5200 MT/s for single-rank configurations. The processor supports up to 128GB of system memory across two channels. PCIe 5.0 support provides 28 total lanes (24 usable), ensuring compatibility with the latest graphics cards and NVMe storage devices. Additional PCIe lanes are available through X670E, X670, B650E, and B650 chipsets.

Integrated Graphics

The processor includes AMD Radeon Graphics with 2 compute units operating at 2200MHz (400MHz base). This integrated GPU supports USB Type-C DisplayPort Alternate Mode, enabling display output without a discrete graphics card for system setup and troubleshooting.

Overclocking Features

Fully unlocked for overclocking, the 7950X3D works with AMD Ryzen Master utility for custom performance tuning. AMD EXPO technology enables one-touch memory overclocking for compatible DDR5 modules. Precision Boost 2 and Precision Boost Overdrive automatically optimize clock speeds based on thermal headroom and motherboard capabilities.

Content Creation Performance

With 32 processing threads, the 7950X3D excels at multi-threaded workloads including 3D rendering, video encoding, and complex compilation tasks. Dedicated video accelerators enhance encoding and decoding performance for modern codecs.

Package Contents

This retail package includes the processor only. No heatsink or cooling solution is included, requiring a separate AM5-compatible cooler rated for 120W TDP or higher. The processor comes with a 3-year manufacturer warranty.

Technical Specifications Summary

• Socket: AM5
• Type: AMD Ryzen 9
• Clock Speed: 4.2GHz
• Turbo Speed: 5.7GHz
• #Hide#Generation: Ryzen 7th gen
• Cores: 16 Core
• Core Size: "CPU Cores: TSMC 5nm FinFET
  I/O Die; TSMC 6nm FinFET"
• Threads: 32
• Cache: L1 Cache: 1MB
  L2 Cache: 16MB
  L3 Cache: 128MB
• TDP: Default TDP: 120W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Graphics Core Count: 2
  Graphics Frequency: 2200 MHz
  GPU Base: 400 MHz
  USB Type-C DisplayPort Alternate Mode support
• Memory: Memory Channels: 2
  Max. Memory: 128GB
  System Memory Subtype: UDIMM

  Max Memory Speed
  1x1R - 5200 MT/s
  1x2R - 5200 MT/s
  2x1R - 3600 MT/s
  2x2R - 3600 MT/s
• Max PCI Express Lanes: 28/24 (Total/Usable)

  Additional Usable PCIe Lanes from Motherboard:
  AMD X670E: 12x Gen4
  AMD X670: 12x Gen4
  AMD B650E: 8x Gen4
  AMD B650: 8x Gen4
• Cooler: No
• Special Features: AMD 3D V-Cache technology
  AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.0500 kg
• Warranty: 3 Years
