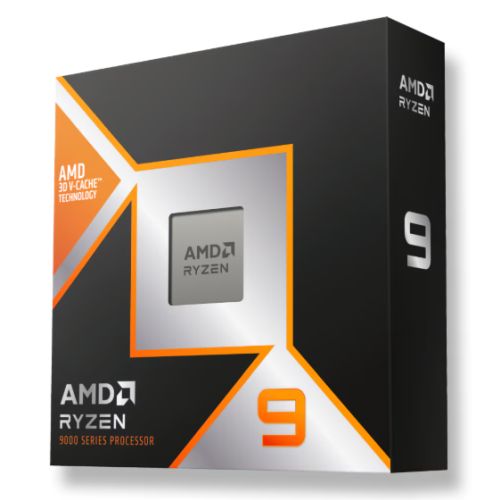

AMD Ryzen 9 9900X3D Gaming and Content Creation Processor

The AMD Ryzen 9 9900X3D delivers extreme performance for gaming, content creation, and professional workloads with 2nd-generation AMD 3D V-Cache technology. This AM5 socket processor combines 12 cores and 24 threads with a massive 140MB of on-chip memory for unmatched gaming performance and real-time data processing.

Performance Built on 4nm Architecture

Operating at 4.4GHz base frequency with boost speeds reaching 5.5GHz, the Ryzen 9 9900X3D leverages TSMC's 4nm FinFET process for superior power efficiency at 120W TDP. The processor's architecture includes 960KB L1 cache, 12MB L2 cache, and a massive 128MB L3 cache, totaling 140MB of combined cache memory that dramatically reduces latency and accelerates frame rates in gaming applications.

3D V-Cache Technology for Gaming Dominance

The exclusive AMD 3D V-Cache technology stacks additional cache directly on the processor die, providing games with instant access to critical data. This results in higher and smoother frame rates across demanding titles. Combined with AMD EXPO memory support, the 9900X3D unlocks increased memory frequencies for maximum gaming performance.

Future-Proof AM5 Platform

Built for the AM5 platform, this processor supports DDR5 memory up to 192GB across dual channels, with speeds reaching DDR5-5600 for dual-rank configurations. With 28 total PCIe lanes (24 usable) and full PCIe 5.0 support, the 9900X3D provides incredible bandwidth for next-generation graphics cards and NVMe storage devices. The AM5 platform ensures long-term upgradeability as new processors and technologies emerge.

Integrated Graphics and AI Capabilities

The integrated AMD Radeon Graphics features 2 graphics cores running at 2200MHz, supporting USB Type-C DisplayPort Alternate Mode for flexible display connectivity. Built-in AI acceleration enhances productivity and content creation workflows, with optimal performance achieved when paired with Radeon RX 9000 Series graphics cards.

What's Included

This retail package contains the AMD Ryzen 9 9900X3D processor only. No heatsink or fan is included, allowing builders to select their preferred cooling solution for optimal thermal performance. The processor is backed by a 3-year manufacturer warranty.

Description

Specification

• Socket: AM5
• Type: AMD Ryzen 9
• Clock Speed: 4.4GHz
• Turbo Speed: 5.5GHz
• #Hide#Generation: Ryzen 9th gen
• Cores: 12 Core
• Core Size: CPU Cores: TSMC 4nm FinFET
  I/O Die: TSMC 6nm FinFET
• Threads: 24
• Cache: L1 Cache: 960KB
  L2 Cache: 12MB
  L3 Cache: 128MB
• TDP: Default TDP: 120W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Graphics Core Count: 2
  Graphics Frequency: 2200 MHz
  USB Type-C DisplayPort Alternate Mode support
• Memory: System Memory Type: DDR5
  Memory Channels: 2
  Max. Memory: 192GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R - DDR5-5600
  2x2R - DDR5-5600
  4x1R - DDR5-3600
  4x2R - DDR5-3600
• Max PCI Express Lanes: 28/24 (Total/Usable)
• Cooler: No
• Special Features: AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.0500 kg
• Warranty: 3 Years
