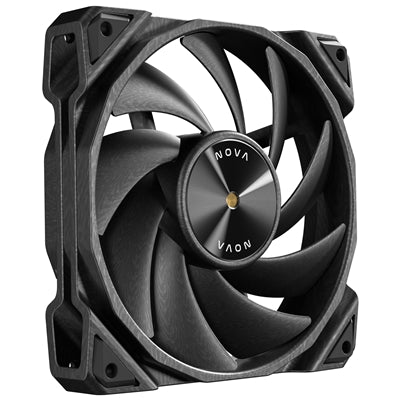

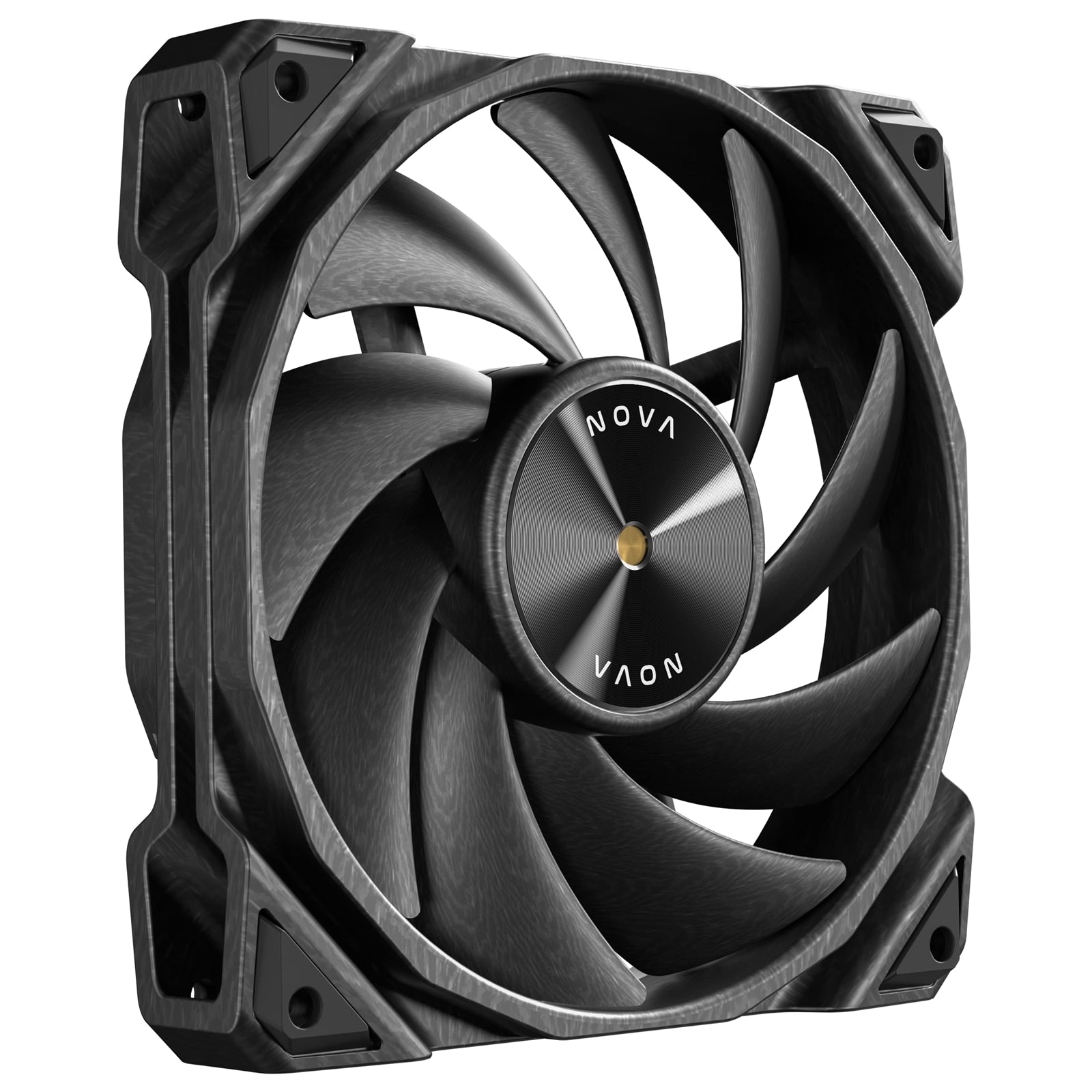

Antec NOVA 120 PWM Fan - Professional PC Cooling Solution

The Antec NOVA 120 PWM Fan delivers professional-grade cooling performance for PC builders and system integrators. This 120mm case fan combines Fluid Dynamic Bearing technology with three-phase motor control to provide reliable thermal management across a wide range of operating conditions.

Adaptive Speed Control

The NOVA 120 features three distinct performance modes through its 4-pin PWM connector. Low mode operates at 300-1500 RPM producing 44 CFM airflow at just 21.5 dB(A), ideal for silent operation during light workloads. Medium mode increases to 350-2400 RPM delivering 70.59 CFM at 30.8 dB(A) for balanced cooling. High mode reaches 400-3200 RPM with 95.32 CFM airflow and 38.7 dB(A) noise level for maximum thermal performance when needed.

Durable Construction

Built with industrial-grade metal components and neodymium magnets, the NOVA 120 is engineered for longevity. The Fluid Dynamic Bearing system provides smooth, consistent operation with a rated lifespan of 50,000 hours at 40°C. The dustproof design protects internal components from contamination, maintaining performance over extended use.

Technical Specifications

Measuring 120 x 120 x 25mm, this fan fits standard case mounting points. Air pressure ranges from 1.48 mmH2O in low mode to 6.56 mmH2O in high mode, providing sufficient static pressure for radiator or heatsink applications. Operating voltage spans DC 6.0-13.2V with a rated voltage of DC 12V and maximum current draw of 0.35A.

Backed by a 5-year warranty, the Antec NOVA 120 PWM Fan offers reliable cooling performance for gaming systems, workstations, and server builds requiring precise thermal control.

Full Specification
Fan Model Name:
NOVA 12025

Fan Type:
PWM Fan

Dimensions:
120 x 120 x 25 mm

Bearing Type:
FDB (Fluid Dynamic Bearing)

Fan Speed:
Low:
300~1500±10% RPM

Medium:
350~2400±10% RPM

High:
400~3200±10% RPM

Airflow:

Low
44 CFM

Medium
70.59 CFM

High:
95.32 CFM

Air Pressure:
Low:
1.48 mmH2O

Medium
3.72 mmH2O

High:
6.56 mmH2O

Fan Noise Level:
Low:
21.5 dB(A)

Medium:
30.8 dB(A)

High:
38.7 dB(A)

Lifespan:
50,000 hours at 40°C

Connector:
4-pin PWM

Rated Voltage:
DC 12 V

Operation Voltage:
DC 6.0-13.2 V

Rated Current:
0.35A (MAX)

Warranty:
5 years

UPC:
0-761345-40050-3

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 3200RPM
• Fan Shroud Colour: Black
• LED Colour: None
• Connections: 4-Pin Fan
