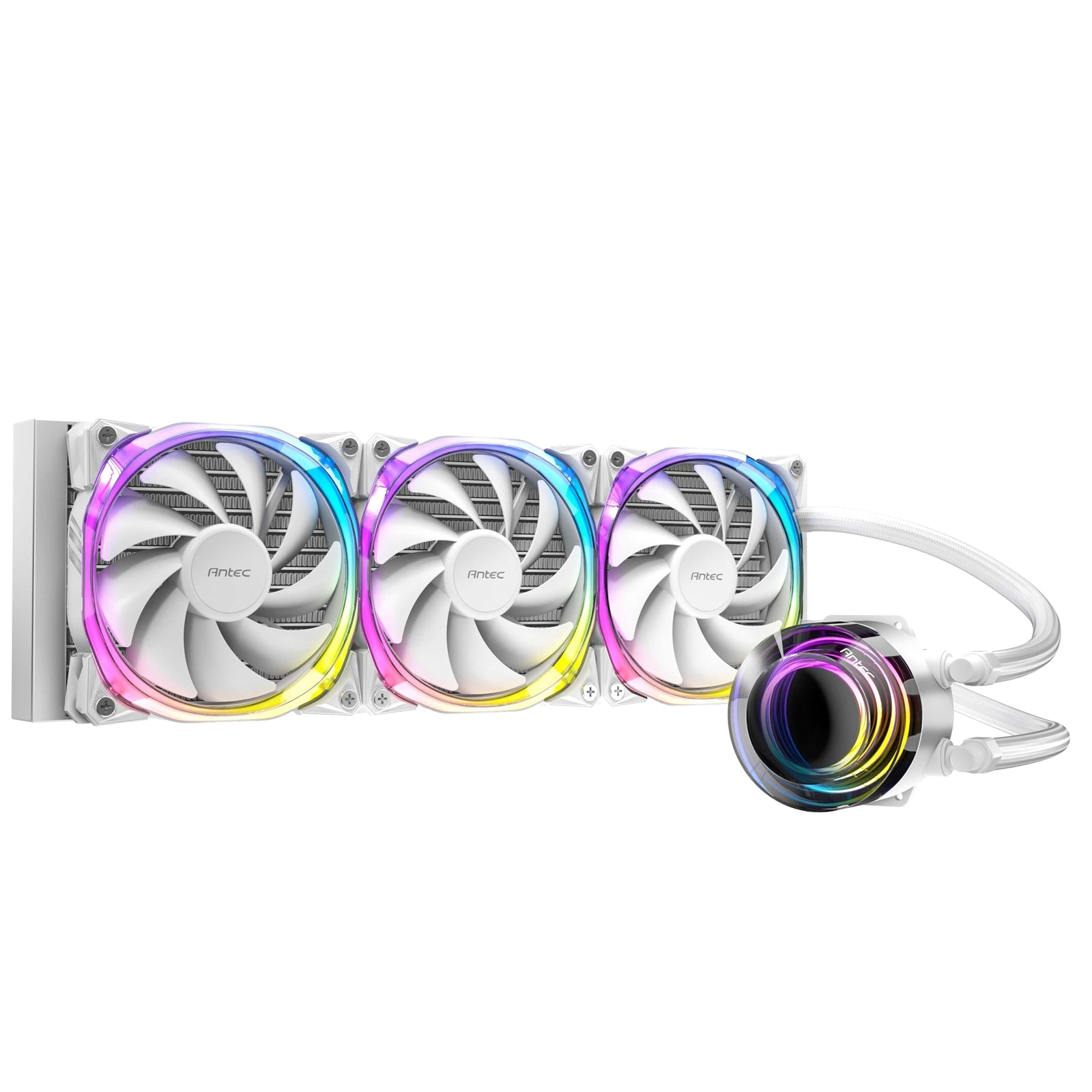

ANTEC Vortex 360 ARGB White AIO Liquid CPU Cooler

The ANTEC Vortex 360 ARGB White delivers high-performance liquid cooling with distinctive aesthetics. The suspended spiral pump head design provides efficient heat dissipation while offering dynamic lighting effects from multiple viewing angles.

Advanced Cooling Technology

The cooling system features a massive copper base plate that ensures efficient heat transfer across all load levels. The pump operates at 2800 RPM with a flow rate of 1300 mL/min and water pressure of 1.4M, delivering consistent cooling performance. EPDM high-density tubing minimizes coolant loss over the cooler's 40,000-hour lifespan.

The 360mm aluminum radiator measures 394 x 120 x 27mm and incorporates 13 fins for rapid heat dissipation. Performance testing with AMD Ryzen 5600x demonstrates the system's capability to handle demanding workloads while maintaining noise levels at 28 dB(A) maximum.

Antec Fusion PWM ARGB Fans

Three Fusion PWM ARGB fans included with the Vortex 360 operate between 600-2000 RPM, delivering up to 57.93 CFM airflow and 2.11 mmH2O air pressure. Each fan features a multilateral-shaped lighting frame with 16 LEDs, producing 31.24 dB(A) at maximum speed. The PWM control enables precise fan speed adjustment based on thermal requirements.

ARGB Lighting System

The included ARGB controller synchronizes with motherboard software for customizable lighting effects. Each LED can be individually controlled for color and effect customization. The controller supports up to 48 LEDs per hub, with 4 hubs accommodating up to 120 LEDs total. A lighting effect switch connector allows mode control - long press for 3 seconds switches to motherboard control, single press returns to controller mode.

Universal Socket Compatibility

Compatible with AMD sockets: AM3, AM4, TR4
Compatible with Intel sockets: LGA 115X, 1200, 1700, 20XX, 1851

Technical Specifications

Radiator: 394 x 120 x 27mm aluminum construction
Pump: 67 x 48.5mm, DC 12V, 0.25A rated current, 3.0W power consumption
Fan Speed: 600-2000 RPM
Airflow: 57.93 CFM maximum
Operating Temperature: -10°C to +60°C
Connectors: 3-pin pump, 3-pin LED, SATA power

The white finish provides a clean aesthetic for modern PC builds, while the suspended spiral pump head serves as a visual centerpiece with its vortex-inspired design.

VORTEX 360 ARGB White The Epoch-Making All-in-One ARGB CPU Liquid Cooler

Suspended Spiral Pump Head Design The suspended spiral pump head, inspired by the image of a vortex, provides outstanding cooling performance and various lighting effects from different angles.

Highly Efficient Cooling Pump High Performance Cooling. Performance data tested with Vortex 360 on AMD Ryzen 5600x.

Massive Copper Base Plate Provides highly efficient cooling at all loads.

EPDM High-Density Tubing The EPDM high-density tubing is very durable, making for less loss of liquid.

Superior Fin Density 13 fins dissipate heat rapidly.

Antec Fusion PWM ARGB Fan The Vortex 360 ARGB White uses the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame and 16 LEDs for harmonious lighting effects and powerful CPU cooling.

Speed:
600+/-200 - 2000+/-10% RPM

Airflow:
57.93 CFM (max)

Noise Level:
31.24 dB(A) (max)

Air Pressure:
2.11 mmH2O (max)

Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

Lighting Effect Switch Connector:
Connect to the rest hub for LED control (as the Mode button)

Mode Control:
Long press for 3 seconds to switch to motherboard control, single press to switch back

ARGB Connector:
Connect to the motherboard for sync lighting effects

ARGB Hub:
Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs

SATA Connector:
Connect to the SATA connector of the power supply

CPU Socket Compatibility
AM3 / AM4 / TR4
LGA 115X / 1200 / 1700 / 20XX / 1851

Radiator Specifications
Dimensions:
394 x 120 x 27 mm

Material:
Aluminum

Pump Specifications
Dimensions:
67 x 48.5 mm

Rating Voltage:
DC 12 V

Minimum Startup Voltage:
5.0 V

Fan Speed:
2800+/-10% RPM

Rated Current:
0.25+/-20% A

Consumed Power:
3.0 W

Flow Rate:
1300 mL/min

Water Pressure:
1.4M

Operating Temperature:
-10°C ~ +60°C

Noise Level:
28 dB(A) max

Lifespan:
40,000 hours

Connector:
PUMP: 3-pin / LED: 3-pin

• Product Type: Liquid CPU Cooler
• Radiator Colour: White
• Max Fan Speed: 2000RPM
• Radiator Size: 360mm
• LED Colour: ARGB
