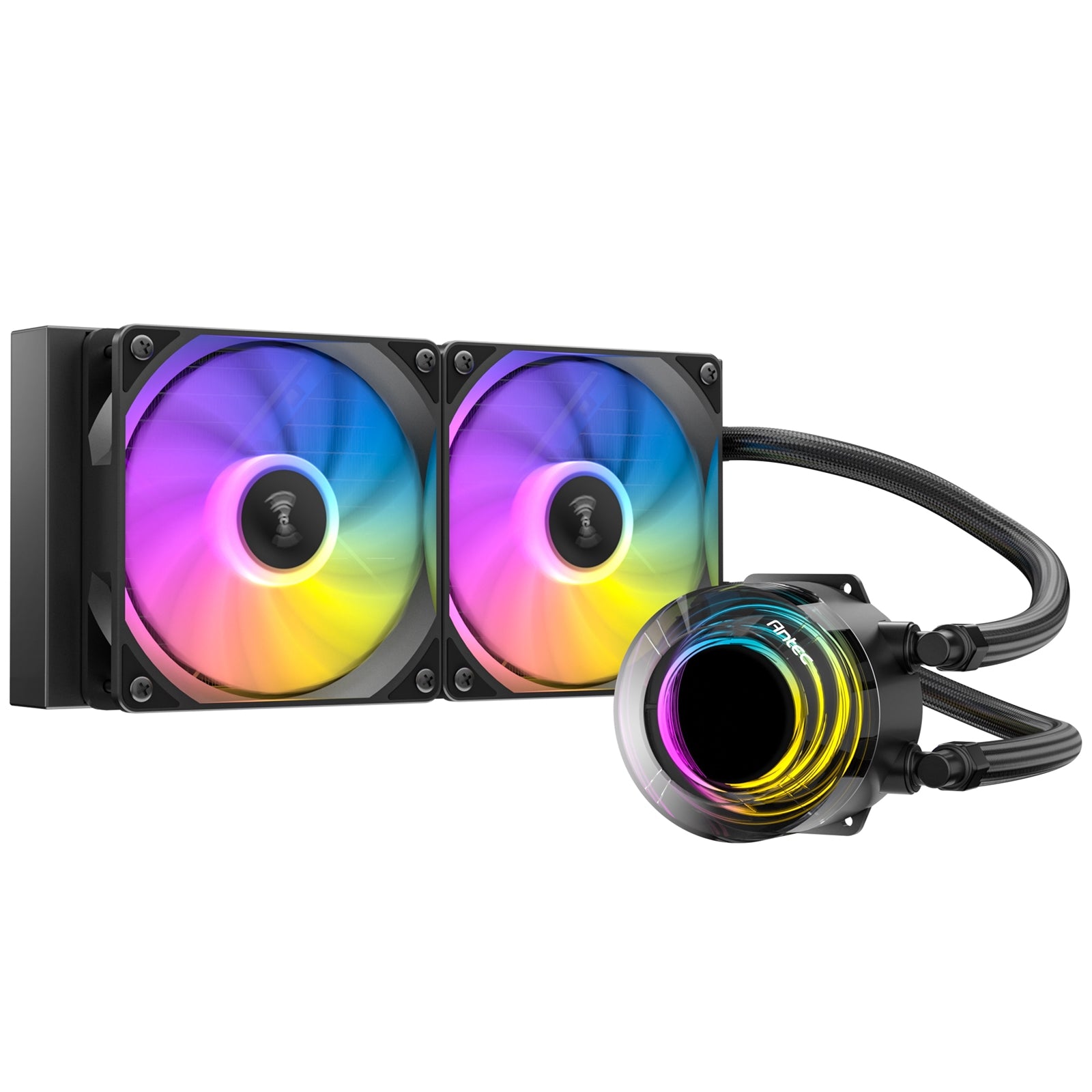

Antec Vortex Lum 240 ARGB CPU Liquid Cooler

The Antec Vortex Lum 240 ARGB is a high-performance all-in-one liquid cooler designed to keep your CPU running cool and stable while adding a stunning aesthetic to your build. With a combination of effective thermal management and vibrant ARGB lighting, this cooler is perfect for gamers and PC enthusiasts who want a balance of style and performance. The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Advanced Cooling Technology

Equipped with a 240mm aluminum radiator measuring 277 x 120 x 27mm, the Vortex Lum 240 delivers exceptional heat dissipation for CPUs with TDP up to 260W. The suspended spiral pump design operates at 1300 mL/min flow rate with 1.4m water pressure, ensuring efficient coolant circulation throughout the system. The pump operates quietly at just 28 dB(A) while maintaining a 40,000-hour lifespan.

High-Performance ARGB Fans

Two 120mm PWM ARGB fans deliver up to 71.5 CFM maximum airflow at 2800 RPM, generating 2.45 mmH2O air pressure for effective radiator cooling. The fans feature a 7-pin connector combining PWM control with ARGB lighting, operating at 12V for the fan motor and 5V for LED illumination. Fan noise remains low at 31 dB(A) even at maximum speed.

Universal Socket Compatibility

The Vortex Lum 240 supports a wide range of Intel and AMD platforms. Intel compatibility includes LGA 115X, 1200, 1700, 20XX, and the latest 1851 socket. AMD support covers AM3, AM4, and AM5 sockets, making this cooler compatible with current and recent-generation processors from both manufacturers.

Durable Construction and Warranty

Built with an aluminum radiator and quality components, the cooler operates reliably in temperatures ranging from -10°C to +60°C. Both the pump and fans are rated for 40,000 hours of operation, backed by a 3-year manufacturer warranty for peace of mind.

Full Specification
Radiator Dimensions:
277 x 120 x 27 mm (L x W x H)

Radiator Material:
Aluminum

Pump Dimensions:
F67 x 48.5 mm

Rating Voltage:
DC 12 V

Fan Speed:
2800±10% RPM

Rated Current:
0.25±20% A

Consumed Power:
3.0 W

Flow Rate:
=1300 mL/min

Water Pressure:
1.4 m

Operation Temperature:
-10°C ~ +60°C

Noise Level:
=28 dB (A)

Lifespan:
40,000 hours

Fan Dimensions:
120 x 120 x 25 mm

Fan Type:
PWM ARGB

Airflow:
71.5 CFM (max.)

Air Pressure:
2.45 mmH2O (max.)

Fan Noise Level:
31 dB (A)

Lifespan:
40,000 hours

Connector:
PH 2.0 7-pin (PWM+ARGB)

Rated Voltage:
FAN: DC 12 V | LED: DC 5 V

Operation Voltage:
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V

Rated Current:
FAN: 0.20-0.25 A | LED: 0.32 A

CPU Socket Compatibility:
Intel: LGA 115X / 1200 / 1700 / 20XX / 1851,
AMD: AM3 / AM4 / AM5

TDP:
= 260W

Warranty:
3 years

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 2800RPM
• Radiator Size: 240mm
• LED Colour: ARGB
