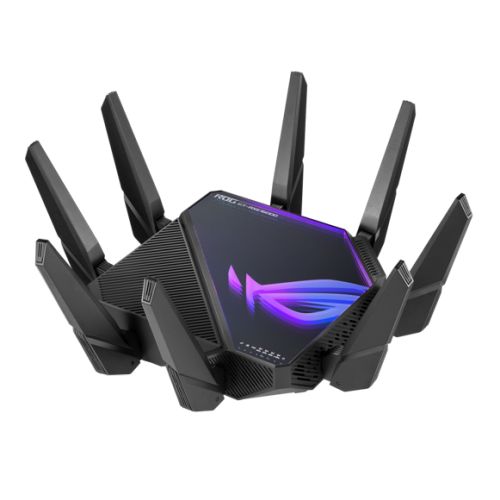

ASUS ROG Rapture GT-AXE16000 WiFi 6E Quad-Band Gaming Router

The ASUS ROG Rapture GT-AXE16000 is the world's first quad-band WiFi 6E gaming router, delivering combined speeds up to 16000 Mbps across four frequency bands: 2.4 GHz (1148 Mbps), dual 5 GHz bands (4804 Mbps each), and 6 GHz (4804 Mbps). This flagship router unlocks the full potential of WiFi 6E technology with 160 MHz channels for ultra-fast, low-latency gaming performance.

WiFi 6E Technology with 6 GHz Band

The new 6 GHz frequency band provides up to seven additional high-speed 160 MHz channels, delivering multi-gigabit speeds with stable connections. This dramatically increases network capacity while reducing bandwidth congestion, offering higher performance for every WiFi 6E device with lower latency and less interference.

Professional-Grade Network Ports

Equipped with two dual-function 10 Gbps WAN/LAN ports, four 1 Gbps LAN ports, and a dedicated 2.5 Gbps WAN port, the GT-AXE16000 delivers up to 10X faster data-transfer speeds for bandwidth-demanding tasks. This flexible port configuration allows you to maximize bandwidth for wired devices and take full advantage of ultra-high-speed internet connections.

Powerful Hardware for Gaming Networks

Powered by a 2.0 GHz quad-core 64-bit CPU and next-gen Broadcom WiFi chipsets, the GT-AXE16000 handles even the most demanding gaming networks. Network throughput is increased by up to 18% for lightning-fast responsiveness and optimized gaming experiences. ASUS RangeBoost Plus technology improves WiFi signal range and overall coverage by up to 38% compared to routers without RangeBoost.

Triple-Level Game Acceleration

The GT-AXE16000 boosts gaming traffic from your device to the game server with exclusive triple-level game acceleration. This stabilizes connections to prevent jitter, reduce lag, lower ping, and increase speed for competitive gaming advantages.

AiMesh and VPN Fusion

Create a flexible whole-home mesh system with ASUS AiMesh-compatible routers, dedicating the 5 GHz or 6 GHz bands as backhaul. VPN Fusion allows simultaneous VPN and ordinary internet connections, so other network users can use a VPN while you maintain maximum gaming speeds.

Security and RGB Customization

ASUS AiProtection Pro with WPA3 security protocol and advanced Parental Controls provides automatic, regularly updated security signatures. The infinity mirror design with Aura RGB lighting effects adds distinctive style to your gaming setup. Includes 8 external antennas and 4 internal antennas for maximum coverage.

Description

Specification

• Type: Cable Router
• Connectivity: Wireless
• Wi-Fi Rating: AXE16000
• Max Single Band Wi-Fi Rate: 4804 Mbps
• Max Wired Transfer Rate: 10 Gbps
• Bands: Quad Band
• Signal Rate: 2.4GHz AX: up to 1148Mbps
  5G-1Hz AX: up to 4804Mbps
  5G-2Hz AX: up to 4804Mbps
  6GHz AX: up to 4804Mbps
• Interface(s): 1 x 2.5 Gigabit WAN
  2 x 10 Gigabit WAN/LAN
  4 x Gigabit LAN
  1 x USB 3.2 Gen 1
  1 x USB 2.0
• Standards: Wi-Fi 6E (802.11ax)
  Wi-Fi 6 (802.11ax)
  Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
• Frequency: 2.4 GHz / 5G-1Hz / 5G-2Hz / 6GHz
• Button(s): "WPS Button, LED Button, Reset Button, Power Switch"
• Power Supply: AC Input:
  110V~240V(50~60Hz)

  DC Output:
  19 V with max. 3.42 A current
  19.5 V with max. 3.33 A current
• Antenna(s): 8 x external antenna (non-detachable)
  4 x internal antenna
• Wireless Functions: "UTF-8 SSID
  Guest Network
  Maximum Guest Network rule:
  2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3
  Guest Network Connection time limit
  WPS
  Wi-Fi MAC address filter
  Maximum MAC filters: 64
  Wireless scheduler
  Airtime fairness
  RADIUS Server
  Universal beamforming
  Modes: AiMesh router, AiMesh node, AP, Repeater, Media bridge"
• Security: "WiFi Encryption:
  WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE

  Guest Network Encryption:
  Open system, WPA/WPA2-Personal/WPA3-Personal

  AiProtection Pro:
  Router Security Assessment
  Malicious site blocking
  Two-Way IPS
  Infected Device Prevention and Blocking

  Parental Control:
  Customized Internet schedule
  Max profile: 64
  Max content filter rule: 64"
• DHCP: DHCP Server
• Port/NAT Forwarding: Yes
  Maximum port forwarding rule: 64
• VPN Support: VPN Client L2TP
  VPN Client OVPN
  VPN Client PPTP
  VPN Server IPSec
  VPN Server OVPN
  VPN Server PPTP
  VPN Fusion
• Management: ASUS Router APP
• Dynamic DNS: Yes
• USB Application: "File System: HFS+, NTFS, vFAT, ext2, ext3, ext4
  HDD hibernation
  Safely Remove disk
  AiCloud
  Download master
  AiDisk
  Media Server
  Time Machine
  Samba Server
  FTP Server
  Shared Folder privileges"
• Additional Features: See Overview
• Package Contents: GT-AXE16000 WiFi Gaming Router
  RJ-45 Cable
  Power Adapter
  Quick Start Guide
  Warranty Card
• Package Type: Retail
• Package Weight: 4.6000 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
