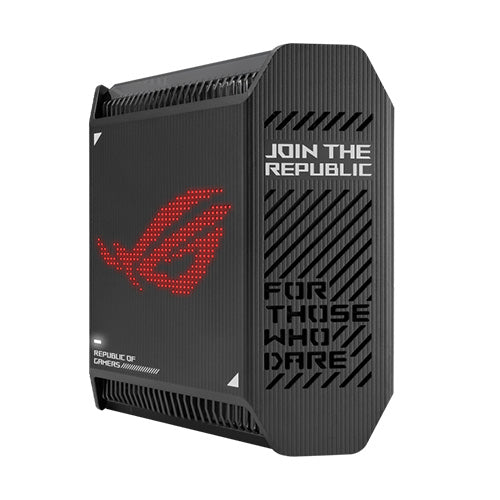

ASUS ROG Rapture GT6 AX10000 Tri-Band Gaming Mesh WiFi 6 System

The ASUS ROG Rapture GT6 delivers professional-grade mesh WiFi performance with AX10000 tri-band technology. This gaming-focused mesh system provides 574 Mbps on 2.4 GHz and up to 4804 Mbps on each of its two 5 GHz bands, ensuring maximum bandwidth for gaming, streaming, and connected devices throughout your home.

Tri-Band Architecture with Dedicated Backhaul

The GT6 utilizes three separate bands to optimize network performance. The dedicated mesh backhaul ensures seamless communication between nodes without sacrificing client bandwidth, delivering consistent speeds across every corner of your space. Nine internal antennas, including an additional Smart Antenna, detect optimal signal direction and increase overall performance by up to 15% compared to traditional antenna configurations.

WiFi 6 Technology for Maximum Capacity

Built on 802.11ax WiFi 6 standard, the GT6 provides up to 4X more capacity and 2.7X faster speeds than WiFi 5 routers. OFDMA and MU-MIMO technology enable simultaneous data transmission to multiple devices, while 160 MHz channels deliver multi-gigabit low-latency connections. The system supports the UNII-4 spectrum (5.9 GHz band), providing a clear 160 MHz channel without radar interference and improving signal range by up to 20%.

Gaming-Optimized Performance

ROG's triple-level game acceleration reduces lag, lowers ping, and prevents jitter for competitive gaming. The system prioritizes gaming traffic automatically, ensuring stable connections during intense online sessions. RangeBoost Plus technology significantly expands coverage and WiFi performance compared to standard routers.

High-Speed Wired Connectivity

The 2.5 Gigabit WAN port supports ultrafast internet speeds from ISPs, while three Gigabit LAN ports provide reliable wired connections. LAN aggregation enables up to 2 Gbps combined wired speeds. A USB 3.2 Gen 1 port supports network storage, media servers, and Time Machine backups.

Advanced Security and Network Management

Subscription-free AiProtection Pro provides comprehensive network security with malicious site blocking, two-way IPS, and infected device prevention. Parental controls allow customized internet schedules, while VPN support includes WireGuard, OpenVPN, IPSec, and VPN Fusion for simultaneous VPN and regular connections. The ASUS Router app enables simple setup and management from your smartphone.

Efficient Thermal Design

Strategically placed top and bottom grills align with internal heatsinks to maximize convective cooling, while side vents maintain optimal operating temperatures during intensive use. The compact design with matte black finish features ROG's signature hexagonal patterns and "For Those Who Dare" branding.

Description

Specification

• Type: Mesh Wi-Fi System/Router
• Connectivity: Wireless
• Wi-Fi Rating: AX10000
• Max Single Band Wi-Fi Rate: 4804 Mbps
• Max Wired Transfer Rate: 2.5 Gbps
• Bands: Tri Band
• Signal Rate: 2.4 GHz: up to 574 Mbps
  5 GHz-1: up to 4804 Mbps
  5 GHz-2: up to 4804 Mbps
• Interface(s): 1 x 2.5 Gigabit WAN
  3 x Gigabit LAN
  1 x USB 3.2 Gen 1x1
• Standards: WiFi 6 (802.11ax)
  IPv4
  IPv6
  Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
• Frequency: 2.4 GHz (1 band) / 5 GHz (2 bands)
• Button(s): "WPS Button, Reset Button, Power Switch"
• Power Supply: AC Input : 110V~240V(50~60Hz)

  DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
• Antenna(s): 9 internal antennas
  including an additional "Smart Antenna"
• Wireless Functions: IPv6
  MU-MIMO
  UTF-8 SSID
  Guest Network
  Guest Network Connection time limit
  WPS
  Wi-Fi MAC address filter
  Maximum MAC filters : 64
  Wireless scheduler
  Wi-Fi Radar
  Airtime fairness
  RADIUS Client
  Universal beamforming
• Security: "WiFi Encryption:
  WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System

  AiProtection Pro:
  Router Security Assessment
  Malicious site blocking
  Two-Way IPS
  Infected Device Prevention and Blocking

  Parental Control:
  Parental Control Customized Internet schedule"
• DHCP: DHCP Server
• Port/NAT Forwarding: Yes
  Max port forwarding rule : 64
• VPN Support: VPN Client L2TP
  VPN Client OVPN
  VPN Client PPTP
  VPN Client WireGuard
  VPN Server IPSec
  VPN Server OVPN
  VPN Server PPTP
  VPN Server WireGuard
  VPN Fusion
• Management: ASUS Router APP
• Dynamic DNS: Yes
• USB Application: "File System: HFS+, NTFS, vFAT, ext2, ext3, ext4
  HDD hibernation
  Safely Remove disk
  AiCloud
  Download master
  AiDisk
  Media Server
  Time Machine
  Samba Server
  FTP Server
  Shared Folder privileges"
• Additional Features: See Overview / Video
• Package Contents: 1 x ROG Rapture GT6
  RJ-45 Cable
  Power Adapter
  Quick Start Guide
  Warranty Card
• Package Type: Retail
• Package Weight: 2.5000 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
