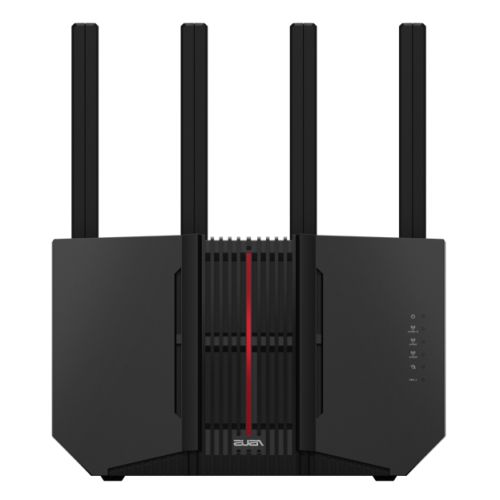

ASUS RT-BE92U BE9700 WiFi 7 Tri-Band Router

The ASUS RT-BE92U delivers WiFi 7 (802.11be) performance with BE9700 tri-band speeds reaching up to 9700 Mbps. This advanced router utilizes new 320MHz channels in the 6 GHz band combined with 4096-QAM modulation to maximize network capacity and throughput across all connected devices.

Multi-Link Operation and Connectivity

Multi-link Operation (MLO) technology enables simultaneous connections across multiple bands, ensuring stable internet connections and efficient data transfers. The router features a 10Gbps port configurable for WAN or LAN use, one 2.5Gbps WAN/LAN port, three additional 2.5Gbps LAN ports, and a USB 3.2 Gen1 port for 4G LTE and 5G mobile tethering support.

Tri-Band Performance Specifications

The RT-BE92U distributes speeds across three bands: 2.4GHz up to 1032 Mbps, 5GHz up to 2882 Mbps, and 6GHz up to 5764 Mbps. Powered by a 2.0GHz quad-core processor with 1GB DDR4 RAM and 256MB Flash storage, the router handles demanding network traffic with adaptive QoS and traffic monitoring capabilities.

Smart Home Master and Network Security

Smart Home Master functionality allows creation of up to three separate SSIDs for simplified IoT device setup and management. AiProtection Pro powered by Trend Micro provides commercial-grade network security without subscription fees, including one-tap security scans and Safe Browsing protection. The router supports WPA3 Personal and Enterprise encryption standards.

Comprehensive VPN and AiMesh Support

VPN features include site-to-site VPN configurations, Instant Guard mobile app for secure public WiFi connections, and VPN Fusion technology. The router supports multiple VPN protocols including WireGuard, OpenVPN, IPSec, L2TP, and PPTP for both client and server configurations. AiMesh compatibility enables seamless whole-home network expansion with other compatible ASUS routers.

Advanced Wireless Technologies

The RT-BE92U incorporates MU-MIMO, OFDMA, beamforming, and Airtime Fairness technologies to optimize wireless performance. Four external antennas provide comprehensive coverage, while support for 20/40/80/160/320 MHz bandwidth ensures flexibility across different network environments. The router operates in multiple modes including wireless router, AiMesh node, access point, media bridge, and repeater configurations.

USB Applications and Management

The USB 3.2 Gen1 port supports file systems including HFS+, NTFS, vFAT, and ext2/3/4. USB features include AiCloud, Download Master, AiDisk, media server functionality, Time Machine support, and Samba/FTP server capabilities. Network management is accessible through the ASUSWRT web interface or ASUS Router mobile app with support for DDNS, port forwarding (up to 64 rules), and DHCP server functionality.
