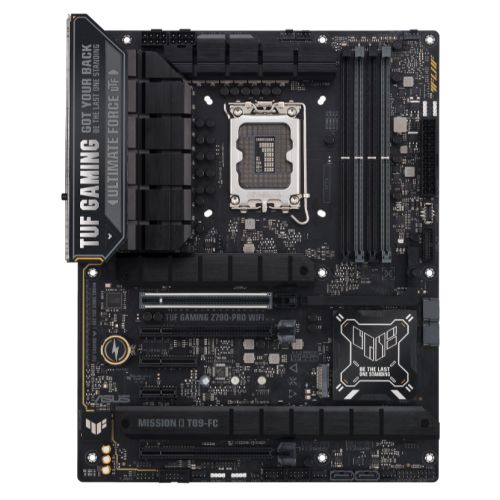

ASUS TUF GAMING Z790-PRO WIFI Gaming Motherboard

The ASUS TUF GAMING Z790-PRO WIFI delivers robust performance for Intel 14th, 13th, and 12th Gen processors with military-grade durability. This ATX motherboard combines premium power delivery with comprehensive cooling to handle extended gaming sessions and demanding workloads.

Power Delivery and Performance

Equipped with 16+1+1 power stages (60A each) and enlarged VRM heatsinks, this Z790 motherboard provides stable power delivery for high-performance CPUs. PCIe 5.0 support for graphics cards ensures compatibility with the latest GPUs, while DDR5 memory support reaches speeds up to 7800+ MT/s with AEMP II technology.

Connectivity and Storage

Four M.2 slots support high-speed NVMe SSDs with PCIe 4.0 x4 connectivity, alongside four SATA III ports for additional storage. The front panel USB 20Gbps Type-C connector delivers 30W Power Delivery 3.0 for fast charging. Wi-Fi 6E with the included ASUS WiFi Q-Antenna provides tri-band wireless connectivity across 2.4/5/6GHz frequencies, while the Intel 2.5Gb Ethernet port ensures reliable wired networking.

PC DIY Features

PCIe Q-Release mechanism simplifies graphics card installation and removal. AI Overclocking and AI Cooling II optimize system performance automatically. Two-Way AI Noise Cancelation enhances audio clarity during gaming and communication. The Armoury Crate software provides centralized control over Fan Xpert 4, RGB lighting, and system monitoring.

Audio and RGB

Realtek S1220A 7.1 surround sound codec delivers high-definition audio with optical S/PDIF output. Onboard RGB lighting with Aura Sync compatibility allows customization through addressable Gen2 headers and standard Aura RGB headers.

Technical Specifications

• Socket: Intel LGA 1700
• Chipset: Intel Z790
• Memory: 4x DDR5 DIMM slots, up to 192GB, 7800+ MT/s (OC)
• Expansion Slots: PCIe 5.0 x16, PCIe 4.0 x16 (x4 mode), PCIe 4.0 x4, PCIe 3.0 x16 (x1 mode), PCIe 3.0 x1
• Storage: 4x M.2 slots (PCIe 4.0 x4), 4x SATA III
• Rear I/O: USB 20Gbps Type-C, 3x USB 10Gbps, 4x USB 5Gbps, DisplayPort, HDMI, 2.5Gb LAN
• Form Factor: ATX
• Warranty: 3 Years

Includes SATA cables, WiFi Q-Antenna, M.2 mounting hardware, and TUF GAMING accessories. Compatible with Intel Rapid Storage Technology for RAID 0/1/5/10 configurations across both PCIe and SATA drives.
