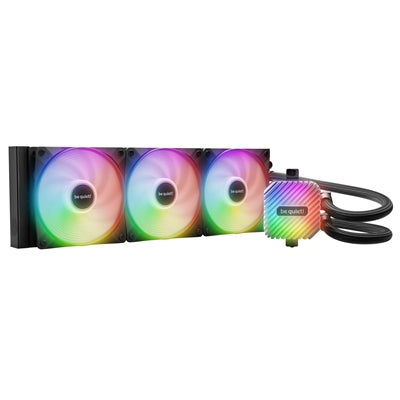

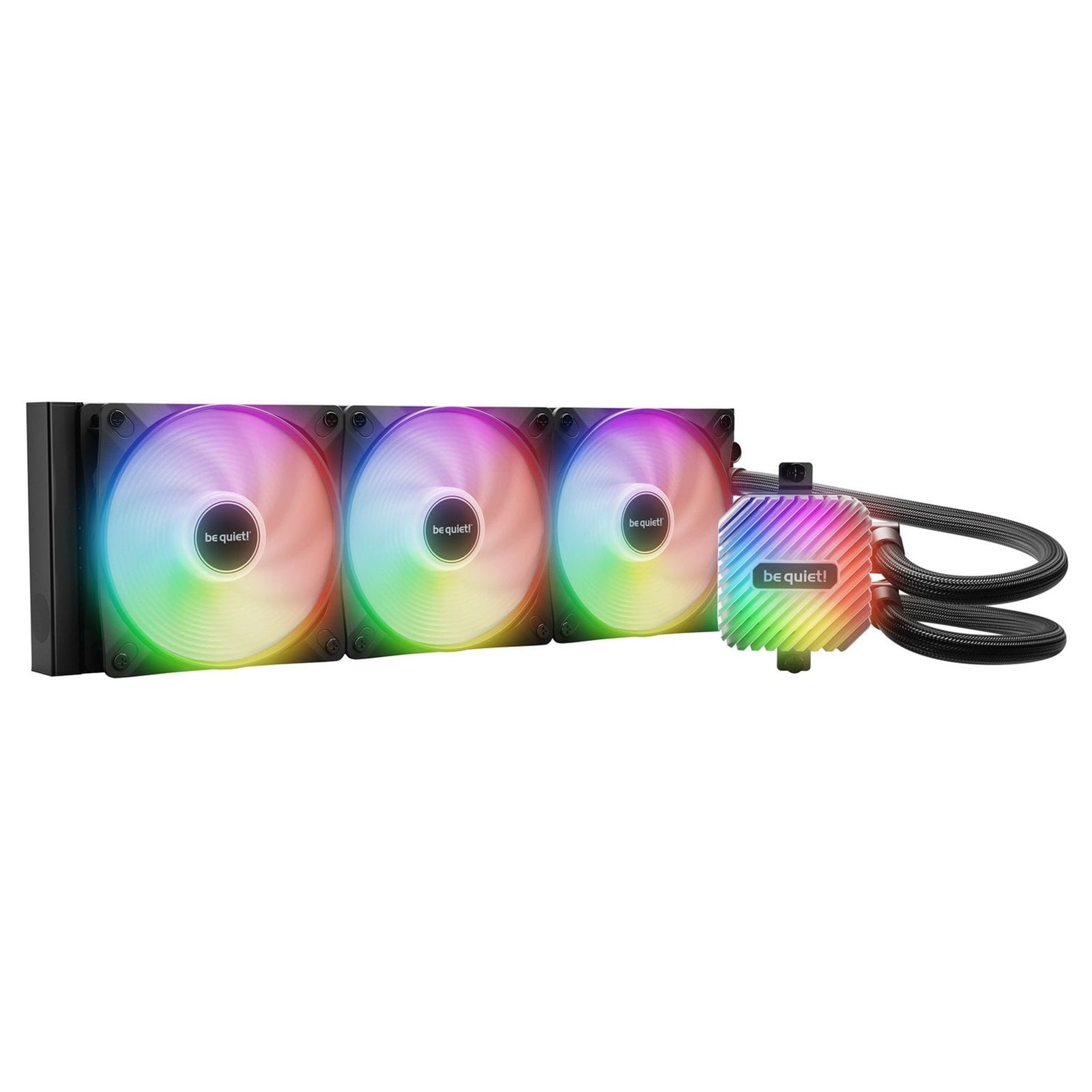

be quiet! Light Loop 360mm AIO Liquid CPU Cooler

The be quiet! Light Loop 360mm AIO delivers high-performance liquid cooling for overclocked systems with integrated ARGB lighting. This all-in-one water cooling solution features a 360mm aluminum radiator with high-density fin stack, three Light Wings LX 120mm PWM high-speed fans, and a copper base with nickel plating for efficient heat dissipation.

Cooling Performance

The 397 x 120 x 27mm radiator paired with three 120mm fans provides 61.8 CFM airflow at 2100 RPM maximum speed. The state-of-the-art pump operates at 2900 RPM with adjustable speeds from 1500-2900 RPM via 4-pin PWM control. The copper nickel-plated base ensures optimal thermal transfer from your CPU.

ARGB Lighting System

Each Light Wings LX fan features 16 digital LEDs controlled through 3-pin 5V addressable RGB connectors. The included ARGB-PWM hub synchronizes up to 6 ARGB components and PWM fans, allowing coordinated lighting effects across your entire system. The cooling block incorporates a unique diffuser that creates distinctive visual effects.

Quiet Operation

Noise levels measure 17.2 dB(A) at 50% speed, 29.1 dB(A) at 75% speed, and 36.8 dB(A) at maximum 100% RPM. The rifle bearing technology and 4-pole fan motors ensure smooth, quiet operation with a 60,000-hour lifespan at 25°C.

Socket Compatibility

Compatible with Intel LGA 1851, 1700, 1200, 1150, 1151, and 1155 sockets. AMD support includes AM5 and AM4 platforms. Mounting hardware for both Intel and AMD systems is included.

Maintenance Features

The Light Loop 360mm includes an accessible refill port and a 100ml bottle of coolant for maintenance. The 400mm tube length provides installation flexibility in various case configurations.

Package Contents

Three Light Wings LX 120mm PWM high-speed fans, ARGB-PWM hub, thermal grease, Intel and AMD mounting hardware, 100ml coolant bottle, and adapter cables. The unit weighs 1.48 kg and comes with a 3-year warranty.

Exceptional Cooling Performance: 360mm radiator and high-density fin stack for efficient heat dissipation.

Stylish Design: Unique cooling block with a diffuser for stunning ARGB lighting effects.

Quiet Operation: State-of-the-art pump with a progressive IC for minimal noise.

ARGB-PWM Hub: Synchronizes up to 6 ARGB components and PWM fans.

Compatibility: Supports Intel LGA 1700, AMD AM4, AM5, and other sockets.

Maintenance-Friendly: Easy-access refill port and included coolant bottle.

Specification
Model:
Light Loop 360mm

Color Option:
Black

Dimensions (Radiator, incl. fan):
397 x 120 x 52 mm

Dimensions (Cooling Block):
75 x 94 x 82 mm

Total Weight:
1.48 kg

Socket Compatibility (Intel):
1851 / 1700 / 1200 / 1150 / 1151 / 1155

Socket Compatibility (AMD):
AM5 / AM4

Noise Level (dB(A)) at 50% / 75% / 100% rpm:
17.2 / 29.1 / 36.8

Number of Fans:
3

Lighting Connector:
3 Pin 5V Addressable

Tube Length:
400 mm

Refill Port:
?

Pump Specifications
Pump Speed:
2900 rpm

Pump Adjustable:
1500 - 2900 rpm

Pump Connector:
4-pin PWM

Radiator Specifications
Dimensions (L x W x H):
397 x 120 x 27 mm

Radiator Material / Finish:
Aluminum / Black Spray Painted

Base Material / Finish:
Copper / Nickel Plated

Fan Specifications
Fan Model:
Light Wings LX 120mm PWM High-Speed

Fan Dimensions:
120 x 120 x 25 mm

Speed at 100% PWM:
2100 rpm

Airflow at 100% PWM / 12V:
61.8 CFM / 105.1 m3/h

Air Pressure at 100% PWM / 12V:
2.51 mm H2O

Bearing Technology:
Rifle

Motor Technology:
4-pole fan motor

Rated Voltage:
12V

Input Current:
0.17A

Safety Current:
0.45A

Input Power:
5.4W

Connector:
4-pin PWM

Cable Length:
500 mm

Lifespan (h / 25°C):
60,000

Accessories
Thermal Grease:
Included

Mounting Set:
Intel, AMD

Adapter Cables:

Bottle of Coolant (ml):
Included / 100

ARGB-PWM-Hub:
Included

Safety Certifications
Approvals:
CE, FCC, UKCA

Warranty (Years):
3

Article Number:
BW022

EAN Code:
4260052191132

Dimensions, Package (L x W x H):
448 x 205 x 137 mm

Gross Weight, Package:
2.6 kg

Pieces per Packaging Unit:
4

Dimensions, Shipping Box (L x W x H):
470 x 300 x 460 mm

Gross Weight, Shipping Box:
11.3 kg

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 2100RPM
• Radiator Size: 360mm
• LED Colour: ARGB
